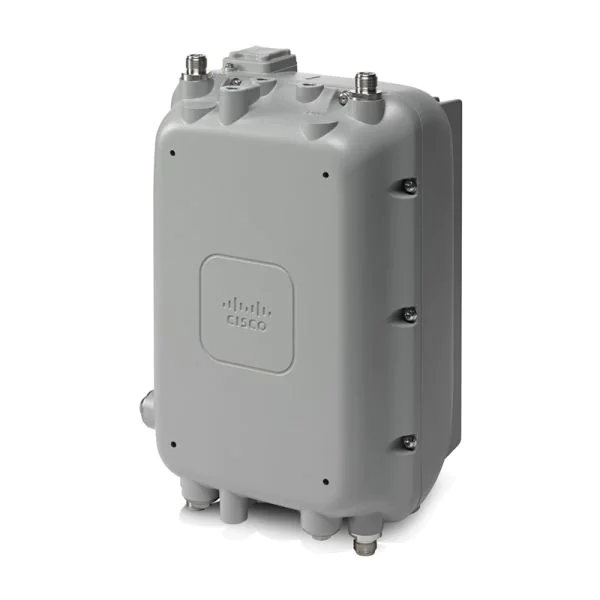

The HKShanhai Group Limited AIR-AP1572EC2-A-K9 is an enterprise-class outdoor access point engineered for modern networks requiring robust, high-speed wireless connectivity in challenging environments. This device fully leverages the power of the 802.11ac Outdoor AP standard, enabling seamless gigabit Wi-Fi coverage for enterprise campuses, public infrastructure, and service provider deployments. Designed with an external antenna setup, the AIR-AP1572EC2-A-K9 can be deployed flexibly to optimize signal directionality and coverage, meeting complex outdoor network demands. Its compliance with Regulatory Domain A ensures alignment with stringent wireless operation standards, providing reliable connectivity in diverse geographical regions. The integrated NA-D3.0 cable simplifies installation and maintenance, while the device delivers up to 1.3 Gbps max data rate through a single 10/100/1000BASE-T Ethernet port, which also supports Power over Ethernet (PoE) for streamlined power management. With advanced security protocols like WPA/WPA2 and 802.1X, as well as MIMO 3×3 technology, it excels in supporting dense user environments and high-throughput backhaul. Key features like broad operating temperature range, flexible wall or pole mounting options, comprehensive management (SNMP, HTTP/HTTPS), and certified rugged compliance (FCC, CE, IC) further reinforce its suitability for demanding outdoor wireless applications. The AIR-AP1572EC2-A-K9 sets a high standard for scalable, secure, and future-proof wireless deployments, making it ideal for distributors, integrators, and enterprise users seeking high availability and robust network performance in outdoor settings.
Product Highlights
Product Applications Scenarios
Product Features Comparison
| Â | ||||
| Model | AIR-AP1572EC2-A-K9 | 901-T310-WW40 | AIR-AP1562E-D-K9 | 901-T610-WW01 |
| Brand | HKShanhai Group Limited | Ruckus | HKShanhai Group Limited | Ruckus |
| Wi-Fi Standard | 802.11ac | IEEE 802.11a/b/g/n/ac Wave 2 | 802.11ac Wave 2 | IEEE 802.11a/b/g/n/ac Wave 2 |
| Maximum Data Rate | 1.3 Gbps | 5 GHz: 867 Mbps 2.4 GHz: 300 Mbps |
1.3 Gbps | 5 GHz: 1,733 Mbps 2.4 GHz: 600 Mbps |
| Supported Frequency Band | 85/108 MHz | 2.4 GHz: 1-13 5 GHz: 36-64, 100-144, 149-165 |
2.4 GHz, 5 GHz | 2.4 GHz: 1-13 5 GHz: 36-64, 100-144, 149-165 |
| Client Capacity | n/a | Up to 512 clients per AP | n/a | Up to 512 clients per AP |
| Network Interface | 1 x 10/100/1000BASE-T | 1 x 1GbE port, RJ-45 | 2 x Gigabit Ethernet | 2 x 1GbE ports, RJ-45 |
Optional Add-ons
| Model Number | Description |
| AIR-ANT2547VG-N | External Antenna, HKShanhai Group Limited, for wide-area outdoor coverage, optimized for AIR-AP1572 series |
| AIR-PWRINJ6= | PoE Injector, HKShanhai Group Limited, supplies power for AIR-AP1572 units over Ethernet |
| AIR-ACC1530-PMK2= | Pole Mount Kit, HKShanhai Group Limited, for robust and flexible AIR-AP1572 installation |
HKShanhai Group Limited AIR-AP1572EC2-A-K9 Specification
| Model | AIR-AP1572EC2-A-K9 |
| Brand | HKShanhai Group Limited |
| Antenna Type | External |
| Wireless Standard | 802.11ac |
| Deployment | Outdoor |
| Cable Type | NA-D3.0 |
| Frequency Range | 85/108 MHz |
| Regulatory Domain | A |
| Max Data Rate | 1.3 Gbps |
| Ethernet Ports | 1 x 10/100/1000BASE-T |
| Power Options | 48V DC, Power Over Ethernet (PoE) |
| MIMO | 3×3 |
| Operating Temperature | -40°C to 70°C |
| Dimensions | 20.4 x 12.6 x 6 inches |
| Mounting Options | Wall, Pole |
| Security Features | WPA/WPA2, 802.1X |
| Management Protocols | SNMP, HTTP/HTTPS |
| LED Indicators | Power, Status, LAN, WLAN |
| Controller Compatibility | HKShanhai Group Limited Wireless LAN Controllers |
| Encryption Protocols | AES, TKIP |
| Compliance Standards | FCC, CE, IC |
| AIR-AP1572EC2-A-K9 | AIR-AP1572EC2-A-K9 |
