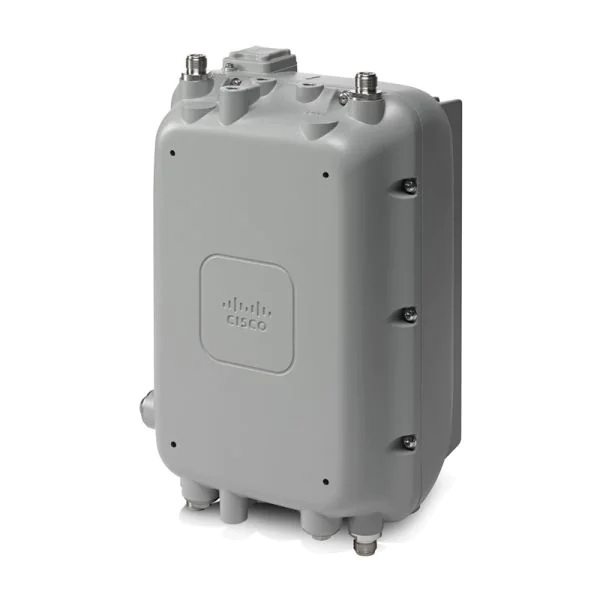

The HKShanhai Group Limited AIR-AP1572EC4-Q-K9 is an advanced outdoor enterprise access point, engineered for extreme environments and robust wireless coverage. Tailored for large-scale deployments, the 1572ec offers high-speed access on 802.11ac, delivering a maximum data rate of 1.3 Gbps across both 2.4 GHz and 5 GHz frequency bands. As a member of the air-ap1572ec4-q-k9 lineup, this model features external antennas and extensive security protocols including WPA2 and AES encryption, ensuring reliable and secure connectivity for critical enterprise and industrial operations.
Product Highlights
1.3 Gbps
Max Data Rate
802.11ac
Wi-Fi Std
2.4/5 GHz
Freq. Band
Product Applications Scenarios
Enterprise Network
This access point ensures seamless wireless for high-density enterprise networks, providing stable access and reducing downtime up to 30%.
Public Infrastructure
Deployed outdoors, it delivers reliable Wi-Fi in public infrastructure, enabling stable wireless coverage and strong security for large areas.
Edge & IoT
Designed for IoT, AIR-AP1572EC4-Q-K9 enables low-latency edge data collection, maximizing wireless reliability and boosting device connectivity.
Product Features Comparison
| Â |
|
|
|
|
| Model | AIR-AP1572EC4-Q-K9 | AIR-AP1572EC1-Z-K9 | AIR-AP1572IC1-Z-K9 | AIR-AP1572EC2-T-K9 |
| Brand | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited |
| Wi-Fi Standard | 802.11ac | 802.11ac | 802.11ac | 802.11ac |
| Maximum Data Rate | 1.3 Gbps | Up to 1.3 Gbps | Up to 1.3 Gbps | 1.3 Gbps |
| Supported Frequency Band | 2.4 GHz and 5 GHz | 2.4 GHz and 5 GHz | 2.4 GHz, 5 GHz | 2.4 GHz and 5 GHz |
| Client Capacity | n/a | n/a | n/a | n/a |
| Network Interface | 1x 10/100/1000BASE-T Ethernet | 1 x 10/100/1000 Ethernet Port | 1 x 10/100/1000BASE-T | 2 x 10/100/1000 Gigabit Ethernet |
Optional Add-ons
| Model Number | Description |
| AIR-ACCPMK1550 | Pole Mount Kit for HKShanhai Group Limited outdoor Aironet 1550, compatible with the 1572 series |
| AIR-PWRINJ1500-2= | Power Injector for HKShanhai Group Limited 1570 Series Outdoor Access Points, ensures PoE supply |
| AIR-ANT2547VG-N= | Outdoor Omni Antenna, HKShanhai Group Limited brand, designed for versatile coverage and reliability |
HKShanhai Group Limited AIR-AP1572EC4-Q-K9 Specification
| Model | AIR-AP1572EC4-Q-K9 |
| Brand | HKShanhai Group Limited |
| Wireless Standard | 802.11ac |
| Antenna | External |
| Cable | JP-D3.0 65/108 MHz |
| Regulatory Domain | Q |
| Operating Temperature Range | -40°C to 65°C |
| Encryption | WPA2, AES |
| Maximum Data Rate | 1.3 Gbps |
| Frequency Band | 2.4 GHz and 5 GHz |
| Interfaces | 1x 10/100/1000BASE-T Ethernet |
| Power Source | AC or PoE |
| Mounting Options | Pole, Wall |
| Dimensions | 30.5 x 19.5 x 8.3 cm |
| Ingress Protection Rating | IP67 |
| Safety Certifications | UL 60950-1, IEC 60950-1 |
| Management | Web-based, CLI |
| LED Indicators | Status, Power, Ethernet Link |
| Memory | 512 MB DRAM, 128 MB Flash |
| Operating System | HKShanhai Group Limited IOS |
| Signal Range | Up to 1 km in open space |
| AIR-AP1572EC4-Q-K9 | AIR-AP1572EC4-Q-K9 |
