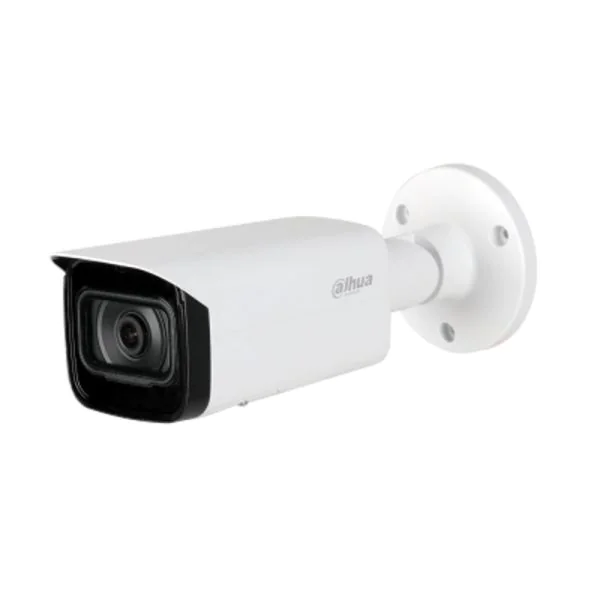

The Dahua IPC-HFW2431T-AS-S2 is a 4MP Lite IR Fixed-focal Bullet Network Camera designed to provide exceptional surveillance performance. Featuring a high-resolution sensor, this camera ensures clear and detailed imagery even in low-light conditions. Its durable bullet design is ideal for various outdoor environments, making it a versatile choice for security applications.
Quick Spec
| Resolution | 4MP |
| Lens Type | Fixed-Focal |
| Infrared Range | Up to 30 meters |
| Image Sensor | 1/3�� 4Megapixel Progressive CMOS |
| Protection | IP67 |
Product Features
- 4MP high-resolution imaging for clear and detailed surveillance footage.
- Smart IR technology for optimal infrared illumination in low-light scenarios.
- IP67 rating for excellent protection against dust and water.
- Supports H.265 and H.264 video compression standards for efficient storage utilization.
- Built-in microphone for audio recording capabilities.
Product Applications
- Commercial Buildings: Ideal for monitoring entrance points and common areas for enhanced security.
- Parking Lots: Perfect for capturing detailed imagery of parked and moving vehicles, especially in low-light conditions.
- Residential Areas: Suitable for keeping an eye on property perimeters and backyards, providing peace of mind to homeowners.
Supported Options
| Mount Bracket | PFA130-E |
| Junction Box | PFA134 |
| Waterproof Cable Connector | PFM800-4MP |
Compare to Similar Items
| Model | Differences |
| IPC-HFW2431S-S2 | No built-in microphone and lower IR range (20 meters). |
| IPC-HFW2439T-AS-LED | Features a built-in white light illuminator instead of IR. |
| IPC-HFW2831T-AS-S2 | Higher resolution (8MP) but similar features. |
Get more information
For further information about the Dahua IPC-HFW2431T-AS-S2, including its price, please contact us via Live Chat or at sales@router-switch.com. Check Dahua IPC-HFW2431T-AS-S2 price and IPC-HFW2431T-AS-S2 datasheet, buy Dahua IPC-HFW2431T-AS Series with the best price and fast shipping. Free Live Chat is supported.
Dahua HFW2431T-AS-S2 Specification
| Model | DS-PWA64-Kit-WB |
| Brand | Hikvision |
| Type | Alarm Panel |
| Panel Capacity | 64 Zones |
| Communication Type | Wi-Fi, Ethernet |
| Wireless Range | 800 meters (open area) |
| Power Supply | 12V DC |
| Backup Battery | Li-ion battery (4.2V, 3,000mAh) |
| Working Temperature | -10°C to 55°C |
| Dimensions | 155mm x 155mm x 35mm |
| Humidity | 10% to 90% (no condensing) |
| Alarm Technology | Two-way wireless technology |
| Supported Sensors | Motion Sensors, Door/Window Sensors |
| Mobile App | Hik-Connect |
|
Camera |
|||||
|
Image Sensor |
1/3??4Megapixel progressive CMOS |
||||
|
Max. Resolution |
2688 (H) Ă— 1520 (V) |
||||
|
ROM |
128 MB |
||||
|
RAM |
128 MB |
||||
|
Scanning System |
Progressive |
||||
|
Electronic Shutter Speed |
Auto/Manual 1/3 s??/100,000 s |
||||
|
S/N Ratio |
> 56 dB |
||||
|
Min. Illumination |
0.008 Lux@F1.6 |
||||
|
Illumination Distance |
80 m (262.5 ft) |
||||
|
Illuminator On/Off Control |
Auto/Manual |
||||
|
Illuminator Number |
4 (IR LED) |
||||
|
Pan/Tilt/Rotation Range |
Pan: 0°??60° Tilt: 0°??0° Rotation: 0°??60° |
||||
|
Lens |
|||||
|
Lens Type |
Fixed-focal |
||||
|
Mount Type |
M12 |
||||
|
Focal Length |
3.6 mm; 6 mm; 8 mm |
||||
|
Max. Aperture |
3.6 mm: F1.6 6 mm: F1.6 8 mm: F1.6 |
||||
|
Field of View |
3.6 mm: Horizontal 84° × Vertical 45° × Diagonal 100° 6 mm: Horizontal 52° × Vertical 28° × Diagonal 61° 8 mm: Horizontal 40° × Vertical 23° × Diagonal 45° |
||||
|
Iris Type |
Fixed |
||||
|
Close Focus Distance |
3.6 mm: 1.4 m (4.6 ft) 6 mm: 3.1 m (10.2 ft) 8 mm:4.9 m(16.1 ft) |
||||
|
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
|
3.6 mm |
80 m |
32.0 m |
16.0 m |
8.0 m |
|
|
6 mm |
120.0 m |
48.0 m |
24.0 m |
12.0 m |
|
|
8 mm |
160.0 m |
64.0 m |
32.0 m |
16.0m |
|
|
Smart Event |
|||||
|
IVS |
Tripwire; intrusion |
||||
|
Video |
|||||
|
Video Compression |
H.265; H.264; H.264B; MJPEG(only supported by sub stream) |
||||
|
Smart Codec |
Smart H.265+/ Smart H.264+ |
||||
|
Video Frame Rate |
Main stream: 2688 Ă— 1520 (1 fps??0 fps) 2560 Ă— 1440 (1 fps??5/30 fps) Sub stream: 704 Ă— 576 (1 fps??5 fps) 704 Ă— 480 (1 fps??0 fps) |
||||
|
Stream Capability |
2 streams |
||||
|
Resolution |
2688 Ă— 1520 (2688 Ă— 1520); 2560 Ă— 1440 (2560 Ă— 1440); 3M (2048 Ă— 1536); 2304 Ă— 1296 (2304 Ă— 1296); 1080p (1920 Ă— 1080); 1.3M (1280 Ă— 960); 720p (1280 Ă— 720); D1 (704 Ă— 576/704 Ă— 480); VGA (640 Ă— 480); CIF (352 Ă— 288/352 Ă— 240) |
||||
|
Bit Rate Control |
CBR/VBR |
||||
|
Video Bit Rate |
H.264: 32 kbps??144 kbps H.265: 12 kbps??144 kbps |
||||
|
Day/Night |
Auto(ICR)/Color/B/W |
||||
|
BLC |
Yes |
||||
|
HLC |
Yes |
||||
|
WDR |
120 dB |
||||
|
White Balance |
Auto/natural/street lamp/outdoor/manual/regional custom |
||||
|
Gain Control |
Auto/Manual |
||||
|
Noise Reduction |
3D DNR |
||||
|
Motion Detection |
OFF/ON (4 areas, rectangular) |
||||
|
Region of Interest(RoI) |
Yes (4 areas) |
||||
|
Smart Illumination |
Yes |
||||
|
Image Rotation |
0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution and lower) |
||||
|
Mirror |
Yes |
||||
|
Privacy Masking |
4 areas |
||||
|
Audio |
|||||
|
Audio Compression |
G.711a; G.711Mu; G.726; AAC |
||||
|
Alarm |
|||||
|
Alarm Event |
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; security exception; local alarm |
||||
|
Network |
|||||
|
Network |
RJ-45 (10/100 Base-T) |
||||
|
SDK and API |
Yes |
||||
|
Protocol |
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour |
||||
|
Interoperability |
ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P |
||||
|
User/Host |
20 |
||||
|
Edge Storage |
Dahua Cloud; FTP; SFTP; Micro SD Card (support max. 256 GB); NAS |
||||
|
Browser |
IE |
||||
|
Management Software |
Smart PSS; DSS; DMSS |
||||
|
Mobile Phone |
IOS; Android |
||||
|
Certification |
|||||
|
Certifications |
CE-LVD: EN60950-1 |
||||
|
Port |
|||||
|
Audio Input |
1 channel (RCA port) |
||||
|
Audio Output |
1 channel (RCA port) |
||||
|
Alarm Input |
1 channel in: 5mA 3V??V DC |
||||
|
Alarm Output |
1 channel out: 300mA 12V DC |
||||
|
Power |
|||||
|
Power Supply |
12V DC/PoE (802.3af) |
||||
|
Power Consumption |
< 7.7W |
||||
|
Environment |
|||||
|
Operating Conditions |
??0°C to +60°C (??0°F to +140°F)/less than ??95% RH |
||||
|
Storage Temperature |
??0°C to +60°C (??0°F to +140°F) |
||||
|
Protection Grade |
IP67; IK10(optional) |
||||
|
Structure |
|||||
|
Casing |
Metal |
||||
|
Dimensions |
244.1 mm Ă— Φ90.4 mm (9.61″ Ă— Φ3.26″) |
||||
|
Net Weight |
0.91 kg (2.0 lb) |
||||
|
Gross Weight |
1.16 kg (2.6 lb) |
