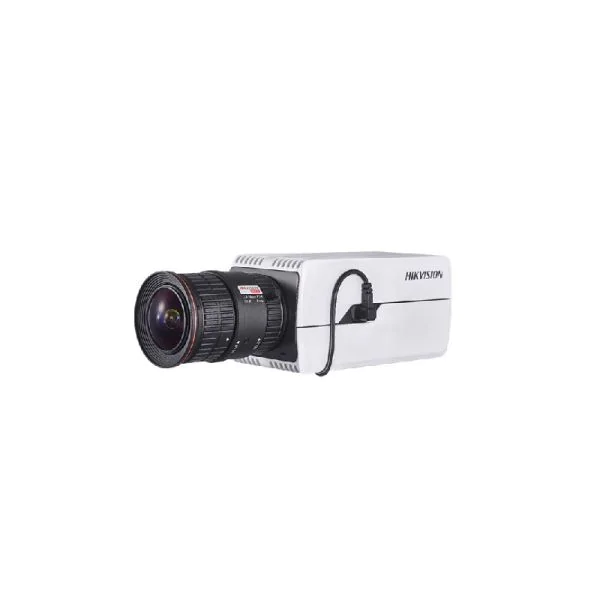

Introducing the Hikvision DS-2CD5046G0-(AP), a 4MP Darkfighter Box Network Camera designed to deliver high-quality video in low-light conditions. This advanced network camera is engineered with state-of-the-art technology to provide clear and detailed surveillance footage, making it an ideal solution for various security applications. Whether you need to monitor a large area or a high-risk location, the DS-2CD5046G0-(AP) from Hikvision ensures reliable and efficient performance.
Quick Spec
| Resolution | 4MP (2688 x 1520) |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Shutter Speed | 1/25 – 1/100,000 s |
| Minimum Illumination | Color: 0.002 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Day & Night | IR Cut Filter with Auto Switch |
Product Features
- 4MP high-resolution imaging for clear video footage.
- Darkfighter technology for superior low-light performance.
- Supports H.265+ video compression to save bandwidth and storage.
- Wide Dynamic Range (WDR) of 120dB to capture details in high contrast scenes.
- Remote access and management via Hik-Connect.
Product Applications
- Monitoring critical infrastructure facilities such as power plants or water treatment facilities.
- Securing commercial properties like office buildings or shopping centers.
- Supervising common areas in residential communities to enhance safety.
Supported Options
| Lens | Hikvision HV1140D-8MPIR |
| Outdoor Housing | Hikvision DS-1311HZ |
| Mounting Bracket | Hikvision DS-1227ZJ |
Compare to Similar Items
| Hikvision DS-2CD4085F-AP | 8MP resolution, lower low-light performance |
| Hikvision DS-2CD5042G0 | 4MP resolution, no H.265+ compression |
| Hikvision DS-2CD5A46G0 | 4MP resolution, fixed lens model |
Get more information
For further details about the Hikvision DS-2CD5046G0-(AP) product series, or to check Hikvision DS-2CD5046G0-(AP) price and DS-2CD5046G0-(AP) datasheet, please contact us via Live Chat or email at sales@router-switch.com. Buy Hikvision DS-2CD5046G0-(AP) with the best price and fast shipping. Free Live Chat support is available.
Hikvision DS-2CD5046G0-(AP) Specification
DS-2CD5046G0-(AP) Specifications |
|
| Brand | Hikvision |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Resolution | 4 Megapixels (2688 1520) |
| Lens Mount | C/CS mount |
| Minimum Illumination | 0.002 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/1s to 1/100,000s |
| IR Range | Up to 30 meters |
| Day & Night | IR cut filter with auto switch |
| Wide Dynamic Range | 120 dB |
| Digital Noise Reduction | 3D DNR |
| Compression Standard | H.265+/H.265/H.264+/H.264/MJPEG |
| Network Protocols | TCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, SNMP, HTTPS, SIP, 802.1X, QoS, IPv6, Bonjour |
| Audio Input | 1 microphone/line input |
| Audio Output | 1 line output |
| Alarm Input | 1 alarm input |
| Alarm Output | 1 alarm output |
| Network Interface | 1 x 10M/100M/1Gbps Ethernet Interface |
| Power Supply | 12 VDC 25%, PoE (802.3af), 24 VAC 25% |
| Power Consumption | Max 12W |
| Operating Conditions | -30C to 60C (-22F to 140F), Humidity 95% or less (non-condensing) |
| Dimensions | 58 60 128.2 mm (2.28 2.36 5.04 in) |
| Ingress Protection | IP67 |
