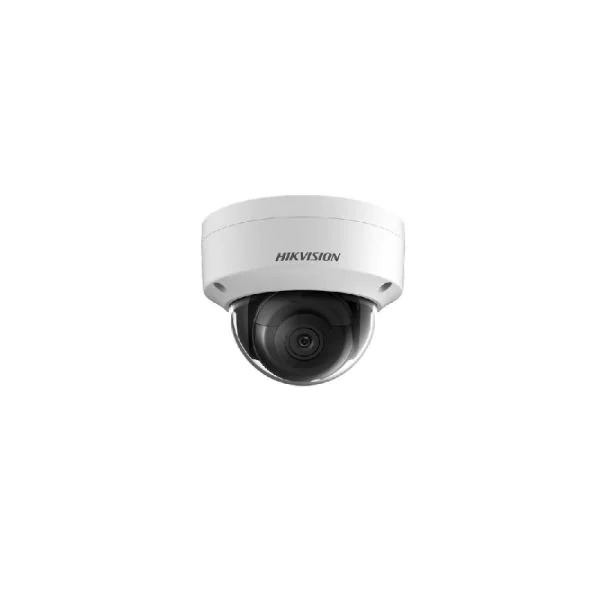

The Hikvision DS-2CD3143G0-I(S) 4MP Fixed Mini Dome Network Camera is a high-performance surveillance solution designed to deliver clear and detailed images. Its compact design makes it perfect for discreet installations and it excels in both indoor and outdoor security applications. With advanced features and robust performance, it fits well into various security environments.
Quick Spec
| Image Sensor | 1/3″ Progressive Scan CMOS |
| Resolution | 4 MP (2560 x 1440) |
| Lens | 2.8 mm/4 mm/6 mm fixed lens |
| IR Range | Up to 30m |
| Power Supply | 12 VDC 25%, PoE (802.3af) |
Product Features
- 1/3″ Progressive Scan CMOS
- 4 MP high resolution
- H.265+/H.265/H.264+/H.264 video compression
- Up to 30 meters IR range
- IP67 and IK10 rated for outdoor use
Product Applications
- Office Building Surveillance: Monitor entrances, hallways, and common areas with high resolution.
- Retail Store Security: Discreet yet powerful camera placement to prevent theft and monitor customer activities.
- Residential Security: Enhance home security with clear images and robust outdoor functionality.
Supported Options
| Junction Box | DS-1280ZJ-DM18 |
| Wall Mount | DS-1273ZJ-140 |
| Ceiling Mount | DS-1275ZJ |
Compare to Similar Items
| Model | Resolution | Lens Option | IR Range |
| DS-2CD2143G0-IS | 4 MP | 2.8 mm/4 mm/6 mm | Up to 30m |
| DS-2CD2183G0-I | 8 MP | 2.8 mm/4 mm | Up to 30m |
| DS-2CD2123G0-I | 2 MP | 2.8 mm/4 mm/6 mm | Up to 30m |
Get more information
For more information about the Hikvision DS-2CD3143G0-I(S) and its pricing, check the Hikvision DS-2CD3143G0-I(S) price and DS-2CD3143G0-I(S) datasheet. Buy the Hikvision DS-2CD3143G0-I(S) with the best price and fast shipping. Free Live Chat is supported. Contact us through Live Chat or sales@router-switch.com to learn more.
Hikvision DS-2CD3143G0-I(S) Specification
DS-2CD3143G0-I(S) Specifications |
|
| Brand | Hikvision |
| Model | DS-2CD3143G0-I(S) |
| Camera Type | Fixed Mini Dome |
| Image Sensor | 1/3″ Progressive Scan CMOS |
| Resolution | 4 Megapixels (2688 1520) |
| Minimum Illumination | 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Lens Type | 2.8 mm / 4 mm / 6 mm fixed lens |
| Field of View | Horizontal: 100(2.8 mm), 79(4 mm), 50(6 mm) |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter with auto switch |
| IR Range | Up to 30 meters |
| Digital Noise Reduction | 3D DNR |
| Wide Dynamic Range | 120 dB WDR |
| Compression Format | H.265+/H.265/H.264+/H.264 |
| Bit Rate | 32 Kbps to 16 Mbps |
| Network Interface | 1 RJ45 10M/100M Ethernet port |
| On-board Storage | Built-in micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Button | Yes |
| Operating Conditions | -30C to 60C (-22F to 140F), Humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC 25%, PoE (802.3af, class 3) |
| Power Consumption | Max 5.5 W |
| Weather Resistance | IP67 |
| Impact Resistance | IK10 |
| Dimensions | ? 111 82 mm (? 4.36″ 3.23″) |
