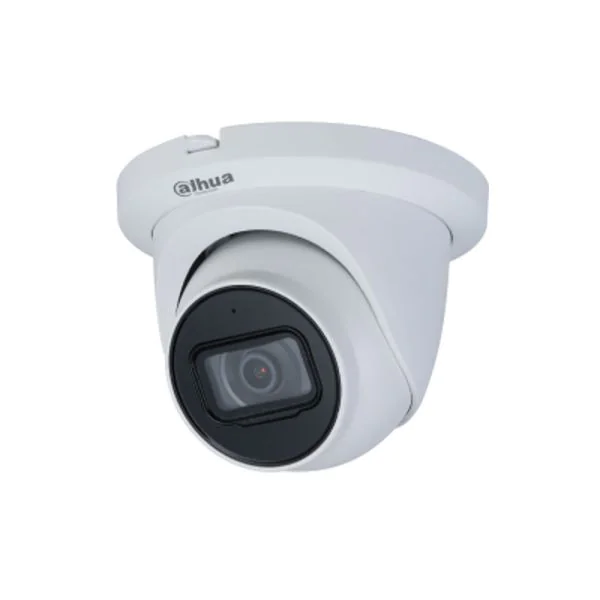

The Dahua IPC-HDW2431TM-AS-S2 is a 4MP WDR IR Eyeball Network Camera, offering excellent image quality and advanced features for enhanced surveillance. Ideal for various environments, this camera provides reliable performance and superior clarity, making it suitable for both professional and home security applications.
Quick Spec
| Resolution | 4MP |
| Lens | 2.8mm Fixed |
| IR Distance | Up to 30m |
| WDR | 120dB |
| Power Supply | 12V DC/PoE (802.3af) |
Product Features
- 4 Megapixels high resolution for crisp and clear images
- Enhanced Wide Dynamic Range (WDR) for balanced lighting
- Built-in IR illumination for night vision up to 30 meters
- Supports Smart H.265+/H.264+ video compression
- Weather-resistant design for durability in various conditions
Product Applications
- Commercial facilities requiring enhanced security monitoring
- Residential areas in need of high-quality day/night surveillance
- Public spaces such as parks and playgrounds needing effective surveillance
Supported Options
| Wall Mount Bracket | PFA130-E |
| Junction Box | PFA139 |
| Ceiling Mount Bracket | PFB200C |
Compare to Similar Items
| Model | Differences |
| Dahua IPC-HDW2231R-ZS | 2MP resolution and motorized lens |
| Dahua IPC-HDW5442TM-AS | 4MP resolution with advanced AI features |
| Dahua IPC-HDW2431R-ZS | 4MP resolution with motorized lens |
Get more information
For further information about the Dahua IPC-HDW2431TM-AS-S2, including pricing and detailed specifications, contact us through Live Chat or email at sales@router-switch.com. Check Dahua IPC-HDW2431TM-AS-S2 price and IPC-HDW2431TM-AS-S2 datasheet, buy Dahua IPC-HDW2431TM-AS-S2 Series with best price and fast shipping. Free Live Chat support available.
Dahua HDW2431TM-AS-S2 Specification
| Model | DS-PWA64-Kit-WB |
| Brand | Hikvision |
| Type | Alarm Panel |
| Panel Capacity | 64 Zones |
| Communication Type | Wi-Fi, Ethernet |
| Wireless Range | 800 meters (open area) |
| Power Supply | 12V DC |
| Backup Battery | Li-ion battery (4.2V, 3,000mAh) |
| Working Temperature | -10°C to 55°C |
| Dimensions | 155mm x 155mm x 35mm |
| Humidity | 10% to 90% (no condensing) |
| Alarm Technology | Two-way wireless technology |
| Supported Sensors | Motion Sensors, Door/Window Sensors |
| Mobile App | Hik-Connect |
|
Camera |
|||||
|
Image Sensor |
1/3??4Megapixel progressive CMOS |
||||
|
Effective Pixels |
2688 (H) Ă— 1520 (V) |
||||
|
ROM |
128 MB |
||||
|
RAM |
128 MB |
||||
|
Scanning System |
Progressive |
||||
|
Electronic Shutter Speed |
Auto/Manual 1/3 s??/100000 s |
||||
|
Min. Illumination |
0.008 Lux @ F1.6 |
||||
|
IR Distance |
30 m (98.43 ft) |
||||
|
IR On/Off Control |
Auto/Manual |
||||
|
IR LEDs Number |
2 |
||||
|
Pan/Tilt/Rotation Range |
Horizonal: 0°??60° |
||||
|
Lens |
|||||
|
Lens Type |
Fixed |
||||
|
Mount Type |
M12 |
||||
|
Focal Length |
2.8 mm |
||||
|
Max. Aperture |
F1.6 |
||||
|
Field of View |
2.8 mm: |
||||
|
Iris Type |
Fixed aperture |
||||
|
Close Focus Distance |
2.8 mm: 0.9 m (2.95 ft) |
||||
|
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
|
2.8 mm |
56 m (183.73 ft) |
22.4 m (73.49 ft) |
11.2 m (36.75 ft) |
5.6 m (18.37 ft) |
|
|
3.6 mm |
80 m (262.47 ft) |
32.0 m (104.99 ft) |
16.0 m (52.49 ft) |
8.0 m (26.25 ft) |
|
|
Smart event |
|||||
|
General IVS Analytics |
Intrusion; tripwire |
||||
|
Video |
|||||
|
Video Compression |
H.265; H.264; H.264B; MJPEG |
||||
|
Smart Codec |
Yes |
||||
|
Video Frame Rate |
Main stream: 2688 Ă— 1520 (1 fps-20 fps) 2560 Ă— 1440 (1 fps-25/30 fps) Sub stream: 704 Ă— 576 (1 fps-25 fps) 704 Ă— 480 (1 fps-30 fps) |
||||
|
Stream Capability |
2 streams |
||||
|
Resolution |
2688 Ă— 1520 (2688 Ă— 1520); 2560 Ă— 1440 (2560 Ă— 1440); 2304 Ă— 1296 (2304 Ă— 1296); 1080p (1920 Ă— 1080); 1.3M (1280 Ă— 960); 720p (1280 Ă— 720); D1 (704 Ă— 576/704 Ă— 480); VGA (640 Ă—480); CIF (352 Ă— 288/352 Ă— 240) |
||||
|
Bit Rate Control |
CBR/VBR |
||||
|
Video Bit Rate |
H.264: 32 Kbps??144 Kbps |
||||
|
Day/Night |
Auto(ICR)/Color/B/W |
||||
|
BLC |
Yes |
||||
|
HLC |
Yes |
||||
|
WDR |
120 dB |
||||
|
White Balance |
Auto/natural/street lamp/outdoor/manual/regional custom |
||||
|
Gain Control |
Auto/Manual |
||||
|
Noise Reduction |
3D DNR |
||||
|
Motion Detection |
OFF/ON (4 areas, rectangular) |
||||
|
Region of Interest(RoI) |
Yes (4 areas) |
||||
|
Smart IR |
Yes |
||||
|
Image Rotation |
0°/90°/180°/270° (Supports 90°/270° with 1080p resolution.) |
||||
|
Mirror |
Yes |
||||
|
Privacy Masking |
4 areas |
||||
|
Audio |
|||||
|
Built-in MIC |
Yes |
||||
|
Audio Compression |
G.711A; G.711Mu; G.726; AAC |
||||
|
Network |
|||||
|
Network |
RJ-45 (10/100 Base-T) |
||||
|
Protocol |
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour |
||||
|
Interoperability |
ONVIF(Profile S/Profile G);CGI;P2P;Milestone;Genetec |
||||
|
User/Host |
20 |
||||
|
Edge Storage |
Cloud; FTP; SFTP; Micro SD Card (support max. 256 GB); NAS |
||||
|
Browser |
IE |
||||
|
Management Software |
Smart PSS; DSS; DMSS |
||||
|
Mobile Phone |
IOS; Android |
||||
|
Certification |
|||||
|
Certifications |
CE-LVD: EN60950-1 |
||||
|
Power |
|||||
|
Power Supply |
12V DC/PoE (802.3af) |
||||
|
Power Consumption |
< 6.6W |
||||
|
Environment |
|||||
|
Operating Conditions |
-40°C to +60°C (-40°F to +140°F)/less than ??95% |
||||
|
Storage Temperature |
-40°C to +60°C (-40°F to +140°F) |
||||
|
Protection |
IP67 |
||||
|
Structure |
|||||
|
Casing |
Metal |
||||
|
Dimensions |
99.1 mm Ă— Φ121.9 mm (3.9″ Ă— Φ4.8″) |
||||
|
Net Weight |
0.48 kg (1.1 lb) |
||||
|
Gross Weight |
0.65 kg (1.4 lb) |
