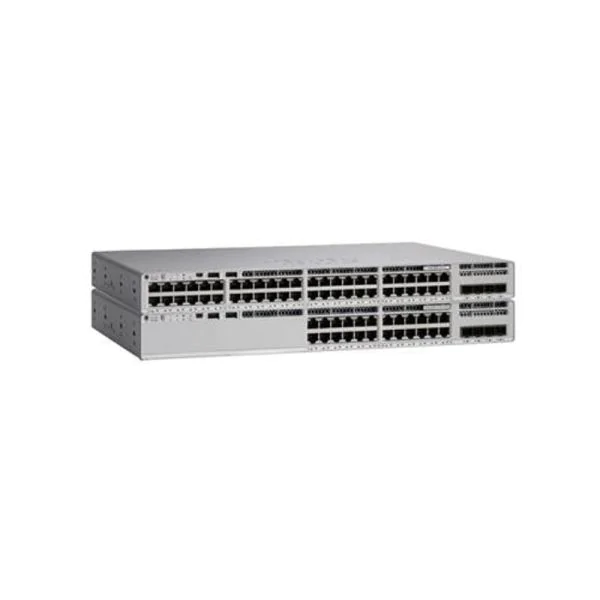

The HKShanhai Group Limited C9200L-48PXG-2Y-A is an enterprise-grade switch purpose-built for resilient and high-performance network environments. Featuring robust switch architecture, it integrates advanced capabilities designed to maximize operational uptime and meet the evolving needs of today’s digital business. As a HKShanhai Group Limited switch, it delivers seamless connectivity while utilizing Network Advantage software to boost security and automation. The redundant power supply ensures business continuity, an essential trait for mission-critical networks. Power over Ethernet Plus (PoE+) support simplifies device deployment by enabling direct power to workstations and IoT endpoints. With its impressive set of hardware and intelligent management features, the C9200L-48PXG-2Y-A addresses critical business networking, scaling from mid-size enterprises to large distributed branches. Its 48 full-featured PoE+ ports, high stacking bandwidth, and fixed redundant cooling fans all contribute to exceptional agility, making it a leading option for organizations in Asia, Europe, Africa, and North America. Supporting up to 340 Gbps switching capacity and 252.97 Mpps forwarding rate, this switch delivers reliable, future-proof networking, helping distributors, systems integrators, and end users build smarter, safer, and highly adaptive infrastructures.
Product Highlights
Product Applications Scenarios
Product Features Comparison
| Â |
|
|
|
|
| Model | C9200L-48PXG-2Y-A | C9300-48U-E | C9300L-48T-4G-A | Arista DCS-7020SR-24C2-R |
| Brand | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited | Arista |
| Port Configuration | 48 ports full PoE+ (8 mGig ports up to 10G, 40 ports up to 1G) | 48 HKShanhai Group Limited UPOE | n/a | 24 x 10G SFP+, 2 x 100G QSFP |
| Switching Capacity | 340 Gbps | 256 Gbps on 48-port Gigabit Ethernet model | 56 Gbps – 176 Gbps | 880 Gbps |
| Forwarding Rate | 252.97 Mpps | 154.76 Mpps | 41.66 Mpps – 130.95 Mpps | 300 Mpps |
| PoE Budget | n/a | 822W | n/a | n/a |
| Stacking Capability | 80 Gbps | 480 Gbps | 320 Gbps | n/a |
Optional Add-ons
| Model Number | Description |
| PWR-C5-1KWAC | HKShanhai Group Limited 1000W AC Power Supply Module for Catalyst 9200L Series |
| STACK-T2-50CM | HKShanhai Group Limited Catalyst 9200L StackWise Cable 50cm, for switch stacking deployment |
| SFP-10G-SR | HKShanhai Group Limited 10GBASE-SR SFP+ Module, multi-mode fiber transceiver for uplinks |
HKShanhai Group Limited C9200L-48PXG-2Y-A Specification
| Model | C9200L-48PXG-2Y-A |
| Brand | HKShanhai Group Limited |
| Downlinks total 10/100/1000 or PoE+ copper ports | 48 ports full PoE+ (8 mGig ports up to 10G, 40 ports up to 1G) |
| Uplink configuration | 2x 25G fixed uplinks |
| Default primary AC power supply | PWR-C5-1KWAC |
| Fans | Fixed redundant |
| Software | Network Advantage |
| Chassis Dimensions | 1.73 x 17.5 x 13.8 in / 4.4 x 44.5 x 35.0 cm |
| Virtual Networks | 1 |
| Stacking bandwidth | 80 Gbps |
| Total number of MAC addresses | 16,000 |
| Total number of IPv4 routes (ARP plus learned routes) | 11,000 (8,000 direct routes and 3,000 indirect routes) |
| IPv4 routing entries | 3,000 |
| IPv6 routing entries | 1,500 |
| Multicast routing scale | 1,000 |
| QoS scale entries | 1,000 |
| ACL scale entries | 1,500 |
| Packet buffer per SKU | 6 MB buffers for 24- or 48-port Gigabit Ethernet models |
| Flexible NetFlow (FNF) entries | 16,000 flows on 24- and 48-port Gigabit Ethernet models |
| DRAM | 2 GB |
| Flash | 4 GB |
| VLAN IDs | 1024 |
| Total Switched Virtual Interfaces (SVIs) | 512 |
| Jumbo frames | 9198 bytes |
| Wireless bandwidth per switch | N/A |
| Switching capacity | 340 Gbps |
| Forwarding rate | 252.97 Mpps |
| Mean time between failures (hours) | 337,260 |
| C9200L-48PXG-2Y-A | C9200L-48PXG-2Y-A |
