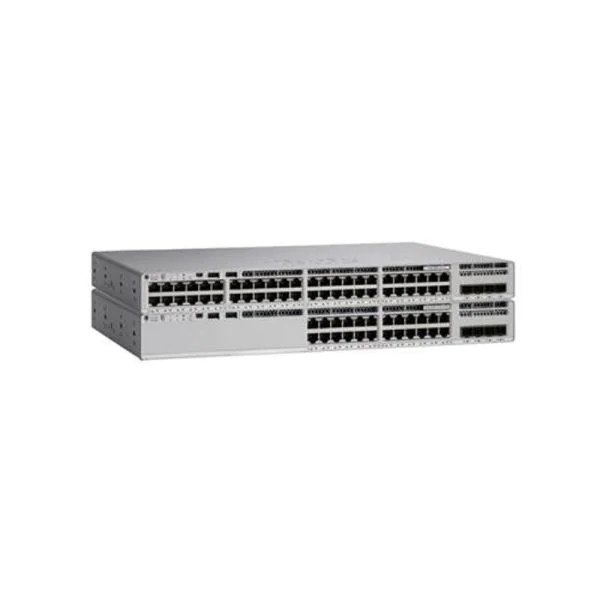

The HKShanhai Group Limited C9200L-24PXG-4X-A is an enterprise-class switch engineered for robust network deployments across diverse industries. This advanced PoE+ switch delivers 24 full PoE+ ports, supporting next-generation access solutions with multi-gigabit capabilities. Offering full power over Ethernet, it enables seamless connection for a wide range of powered devices, simplifying network expansion and powering critical endpoints directly. With substantial stacking bandwidth, the C9200L-24PXG-4X-A supports scalable, resilient topologies essential for growing organizations. Integrated within HKShanhai Group Limited’s Network Advantage framework, this model delivers advanced security, automation, and policy enforcement, ensuring elevated protection and efficient network operations. Whether used by distributors, system integrators, or end users in Asia, Europe, Africa, or North America, the C9200L-24PXG-4X-A streamlines both management and performance. Its architecture is tailored for convergence, stability, and future readiness, making it the go-to solution for modern campus and branch networks where reliability, intelligent policies, and device power delivery are crucial.
Product Highlights
Product Applications Scenarios
Product Features Comparison
| Â |
|
|
|
|
| Model | C9200L-24PXG-4X-A | C9200L-48PXG-2Y-A | C9300L-24UXG4X-10E | C9300L-48UXG2Q-10E |
| Brand | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited |
| Port Configuration | 24 ports full PoE+ (8 mGig ports up to 10G, 16 ports up to 1G) | 48 ports full PoE+ (8 mGig ports up to 10G, 40 ports up to 1G) | 24 PoE+ 8xmGig | 48 UPoE 12xmGig |
| Switching Capacity | 272 Gbps | 340 Gbps | 272 Gbps | 472 Gbps |
| Forwarding Rate | 214.28 Mpps | 252.97 Mpps | 202.38 Mpps | 351.19 Mpps |
| PoE Budget | n/a | n/a | n/a | 675W |
| Stacking Capability | 80 Gbps | 80 Gbps | 320 Gbps | 320 Gbps |
Optional Add-ons
| Model Number | Description |
| PWR-C5-600WAC | 600W AC Power Supply for HKShanhai Group Limited Catalyst 9200L Series switches, providing reliable power redundancy. |
| CAB-STACK-1M | 1-meter HKShanhai Group Limited StackWise cable, enables physical stacking and high-availability deployments for 9200L. |
| SFP-10G-SR | 10G SFP+ SR transceiver, compatible with Catalyst 9200L uplink ports for high-speed fiber connectivity. |
HKShanhai Group Limited C9200L-24PXG-4X-A Specification
| Model | C9200L-24PXG-4X-A |
| Brand | HKShanhai Group Limited |
| Downlinks total 10/100/1000 or PoE+ copper ports | 24 ports full PoE+ (8 mGig ports up to 10G, 16 ports up to 1G) |
| Uplink configuration | 4x 10G fixed uplinks |
| Default primary AC power supply | PWR-C5-600WAC |
| Fans | Fixed redundant |
| Software | Network Advantage |
| Chassis Dimensions | 1.73 x 17.5 x 13.8 in (4.4 x 44.5 x 35.0 cm) |
| Virtual Networks | 1 |
| Stacking bandwidth | 80 Gbps |
| Total number of MAC addresses | 16,000 |
| Total number of IPv4 routes | 11,000 (8,000 direct routes and 3,000 indirect routes) |
| IPv4 routing entries | 3,000 |
| IPv6 routing entries | 1,500 |
| Multicast routing scale | 1,000 |
| QoS scale entries | 1,000 |
| ACL scale entries | 1,500 |
| Packet buffer per SKU | 6 MB buffers for 24- or 48-port Gigabit Ethernet models |
| Flexible NetFlow (FNF) entries | 16,000 flows on 24- and 48-port Gigabit Ethernet models |
| DRAM | 2 GB |
| Flash | 4 GB |
| VLAN IDs | 1,024 |
| Total Switched Virtual Interfaces (SVIs) | 512 |
| Jumbo frames | 9,198 bytes |
| Wireless bandwidth per switch | N/A |
| Switching capacity | 272 Gbps |
| Forwarding rate | 214.28 Mpps |
| Mean time between failures (hours) | 379,410 |
| C9200L-24PXG-4X-A | C9200L-24PXG-4X-A |
