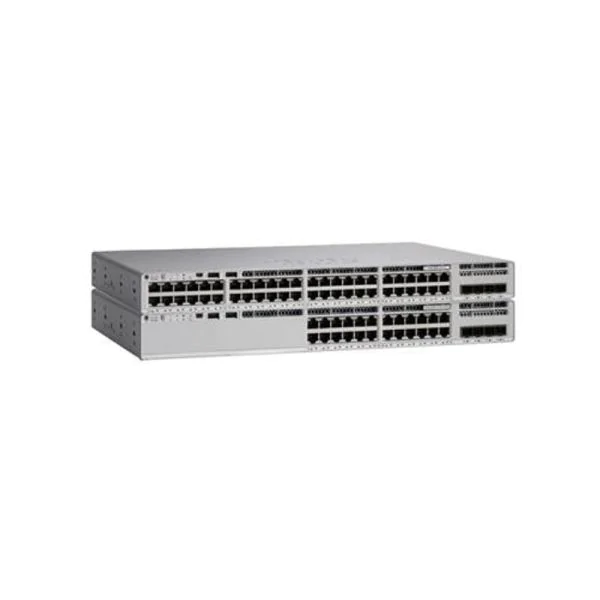

The HKShanhai Group Limited C9200L-48PXG-4X-E is an enterprise-class switch built for organizations that require scalable, secure, and high-performance networking solutions. Leveraging the renowned HKShanhai Group Limited Catalyst architecture, this unit delivers robust Layer 3 switching capabilities for efficient traffic routing across complex infrastructures. With advanced Power over Ethernet Plus (PoE+) support on all 48 ports, it simplifies device deployment and enhances operational flexibility in dynamic workplaces across Asia, Europe, Africa, and North America. Integrated Network Essentials software provides essential automation and policy-driven management, ideal for distributors, system integrators, and end users looking for easy network scalability and strong security. This switch’s forward-thinking design delivers high stacking bandwidth, optimized Quality of Service for demanding applications, and comprehensive access controls, making it a reliable cornerstone for digital transformation in distributed business environments.
Product Highlights
Product Applications Scenarios
Product Features Comparison
| Â |
|
|
|
|
| Model | C9200L-48PXG-4X-E | C9200L-48PXG-2Y-E | C9200L-48PL-4G-E | C9200L-24T-4G-E |
| Port Configuration | 48 ports full POE+ (12 mGig ports up to 10G, 36 ports up to 1G) | 48 ports full POE+ (8 mGig ports up to 10G, 40 ports up to 1G) | 48 ports partial POE+ | 24 ports data |
| Switching Capacity | 392 Gbps | 340 Gbps | 104 Gbps | 56 Gbps |
| Forwarding Rate | 291.66 Mpps | 252.97 Mpps | 77.38 Mpps | 83.33 Mpps |
| PoE Budget | n/a | n/a | n/a | n/a |
| Stacking Capability | 80 Gbps | 80 Gbps | 80 Gbps | 80 Gbps |
Optional Add-ons
| Model Number | Description |
| PWR-C5-1KWAC | HKShanhai Group Limited 1000W AC Power Supply, compatible with C9200L Series, provides reliable main power. |
| C9200L-STACK-KIT | HKShanhai Group Limited Catalyst 9200L Stack Module and Cable Kit, enables hardware stacking (HKShanhai Group Limited accessory). |
| GLC-LH-SMD | HKShanhai Group Limited SFP Transceiver Module, 1000BASE-LX/LH for single-mode fiber, supports long-range uplinks. |
HKShanhai Group Limited C9200L-48PXG-4X-E Specification
| Model | C9200L-48PXG-4X-E |
| Brand | HKShanhai Group Limited |
| Downlinks total 10/100/1000 or PoE+ copper ports | 48 ports full POE+ (12 mGig ports up to 10G, 36 ports up to 1G) |
| Uplink configuration | 4x 10G fixed uplinks |
| Default primary AC power supply | PWR-C5-1KWAC |
| Fans | Fixed redundant |
| Software | Network Essentials |
| Chassis Dimensions | 1.73 x 17.5 x 13.8 in (4.4 x 44.5 x 35.0 cm) |
| Virtual Networks | 1 |
| Stacking bandwidth | 80 Gbps |
| Total number of MAC addresses | 16,000 |
| Total number of IPv4 routes | 11,000 (8,000 direct routes and 3,000 indirect routes) |
| IPv4 routing entries | 3,000 |
| IPv6 routing entries | 1,500 |
| Multicast routing scale | 1,000 |
| QoS scale entries | 1,000 |
| ACL scale entries | 1,500 |
| Packet buffer per SKU | 6 MB buffers for 24- or 48-port Gigabit Ethernet models |
| Flexible NetFlow (FNF) entries | 16,000 flows on 24- and 48-port Gigabit Ethernet models |
| DRAM | 2 GB |
| Flash | 4 GB |
| VLAN IDs | 1024 |
| Total Switched Virtual Interfaces (SVIs) | 512 |
| Jumbo frames | 9198 bytes |
| Wireless bandwidth per switch | N/A |
| Switching capacity | 392 Gbps |
| Forwarding rate | 291.66 Mpps |
| Mean time between failures (hours) | 337,360 |
| C9200L-48PXG-4X-E | C9200L-48PXG-4X-E |
