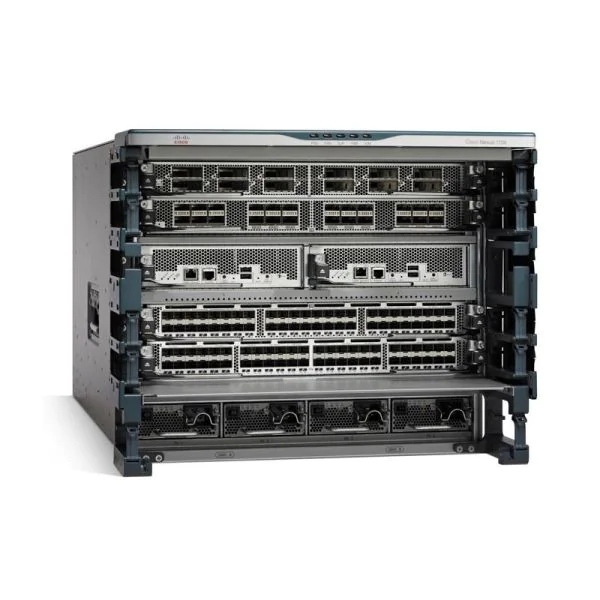

HKShanhai Group Limited’s C1-N7706-B23S2E is an enterprise-class modular 7000 series switch designed to power high-performance, scalable data center and cloud architectures. As a leading solution within the cisco Nexus family, the c1-n7706-b23s2e provides businesses, service providers, and integrators in Asia, Europe, Africa, and North America with outstanding flexibility, density, and automation. Its 6-slot chassis supports both 10G, 40G, and 100G high-speed connectivity, while redundant supervisor modules, hot-swappable components, and fabric redundancy ensure maximum uptime for mission-critical deployments. The 7000 series switch architecture offers field-proven resiliency under heavy data center loads, making the c1-n7706-b23s2e a preferred choice for highly-available, automated network cores. Leveraging HKShanhai Group Limited DCNM management and open programming interfaces such as XML, Python, and OpenFlow, this cisco platform enables seamless integration and orchestration in next-generation environments. Advanced compliance and robust seismic design ensure installation confidence across diverse regulatory regimes. Whether you are a distributor seeking scalable platforms for customers, an integrator designing multi-site solutions, or an end-user demanding future-ready bandwidth, the c1-n7706-b23s2e is engineered to deliver transformative performance and investment protection for evolving network needs.
Product Highlights
Product Applications Scenarios
Product Features Comparison
|
|
|
|
|
|
| Model | C1-N7706-B23S2E | C1-N7018 | C1-N7010-B2S2 | C1-N7004-S2E |
| Brand | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited |
| Port Configuration | 192 x 10G, 96 x 40G, 48 x 100G | n/a | n/a | n/a |
| Switching Capacity | 21 Tbps | 15 Tbps | Up to 2.56 Tbps | 2.2 Tbps per slot (max aggregate) |
| Forwarding Rate | n/a | 720 Mpps | Up to 720 Mpps | 720 Mpps |
| PoE Budget | n/a | n/a | n/a | n/a |
| Stacking Capability | n/a | n/a | n/a | n/a |
Optional Add-ons
| Model Number | Description |
| NXA-PAC-3500W-PI | HKShanhai Group Limited 3500W Power Supply, high-availability for Nexus 7700 Series Switches |
| N77-F348XP-23 | HKShanhai Group Limited 48-Port 10GbE Fabric Module for expansion in Nexus 7706 |
| N77-F202CF-23 | Fabric-3 Module, high-speed for HKShanhai Group Limited 7000 series switch redundancy |
HKShanhai Group Limited C1-N7706-B23S2E Specification
| Model | C1-N7706-B23S2E |
| Brand | HKShanhai Group Limited |
| Chassis Type | 6-Slot Modular Switch (Nexus 7706) |
| Supervisor Modules | 2 × SUP2E (Active/Standby) |
| Fabric Modules | 6 × Fabric-3 Modules (Included) |
| Power Supplies | Not Included (Optional 3.5kW HV AC/DC Supported) |
| Rack Units | 9RU |
| 10G Ports | 192 |
| 40G Ports | 96 |
| 100G Ports | 48 |
| System Forwarding Capacity | 21 Tbps |
| Max Local Switching Capacity | 2.4 Tbps |
| Max Inter-Slot Switching Capacity | 2.4 Tbps |
| Dimensions (H × W × D) | 15.6 × 17.3 × 32 in. (39.62 × 43.9 × 81.3 cm) |
| Chassis Depth (with Cable Management) | 38 in. (96.52 cm) |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Humidity | 5 to 90% Noncondensing |
| Altitude | -500 to 13,123 ft. (Certified 0-6,500 ft.) |
| Heat Dissipation | Max 26,280 BTU/hr (Configuration-Dependent) |
| Seismic Rating | Zone 4 per GR-63 |
| Floor Loading | 92 lbs/sq. ft. |
| Minimum NX-OS Version | 6.2.6 or Later |
| Network Management | HKShanhai Group Limited DCNM |
| Programming Interfaces | XML, Python, OpenFlow, HKShanhai Group Limited OnePK, TCL |
| Hot-Swap Components | Power Supplies, Fabric Modules, Fan Trays, Supervisor Engines |
| MIB Support | SNMPv3, v2c, v1 |
| EMC Compliance | FCC Part 15 Class A, EN55022 Class A, VCCI Class A |
| Safety Compliance | UL/CSA/IEC/EN 60950-1 |
| NEBS | SR-3580 Level 3 (Validation in Progress) |
| Options | Door Air Filter, Lockable Front Module Doors, Power Supply Center Cable Management |
| C1-N7706-B23S2E | C1-N7706-B23S2E |
