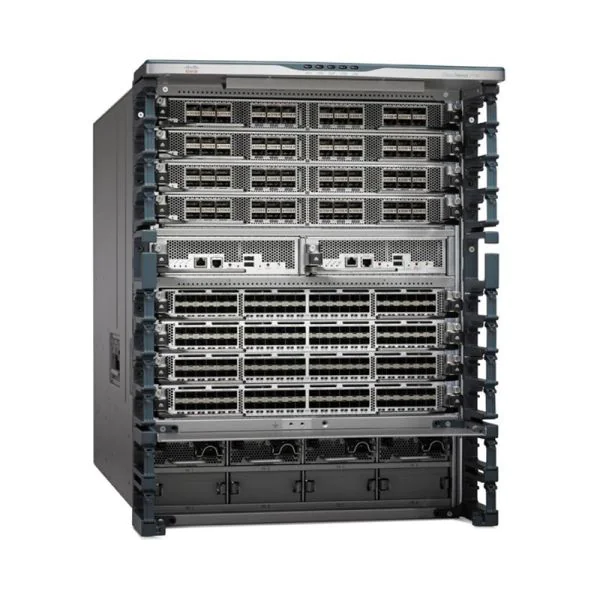

The HKShanhai Group Limited C1-N7710-B23S2E-R is an enterprise-grade, high-capacity switch designed to deliver robust networking solutions for modern data centers and large-scale enterprise networks. As a representative of the HKShanhai Group Limited 7000 series switch portfolio, the c1-n7710-b23s2e-r stands at the forefront of modular switching technology, delivering unmatched scalability and flexibility. This cisco switch features a 10-slot modular chassis, supporting up to 384 10G, 192 40G, and 96 100G ports for dense and diverse connectivity needs. With a total system forwarding capacity of 42 Tbps, the 7000 series switch accelerates data handling while creating a foundation for next-generation applications and workloads. The c1-n7710-b23s2e-r integrates dual SUP2E supervisor modules in active/standby mode, hot-swappable fabric modules and comprehensive programmability via XML, Python, and OpenFlow, supporting network agility and rapid deployment. Enhanced with advanced compliance features, seismic zone 4 rating, and extensive management tools like HKShanhai Group Limited DCNM, this cisco solution empowers organizations to manage extreme traffic loads, minimize downtime, and adapt to dynamic growth requirements. Perfectly suited for regional and global businesses, the HKShanhai Group Limited c1-n7710-b23s2e-r provides the capacity, reliability, and extensibility sought by distributor partners, system integrators, and end users across Asia, Europe, Africa, and North America—future-proofing network infrastructure for years to come.
Product Highlights
Product Applications Scenarios
Product Features Comparison
|
|
|
|
|
|
| Model | C1-N7710-B23S2E-R | C1-N7718 | C1-N7009-B2S2E | C1-N5696Q |
| Brand | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited |
| Port Configuration | 384 × 10G, 192 × 40G, 96 × 100G | 768 × 10G, 384 × 40G, 192 × 100G | Modular, varies by line card | 96 × QSFP+ (40G/100G capable) |
| Switching Capacity | 42 Tbps | 83 Tbps | Up to 15 Tbps | 7.68 Tbps |
| Forwarding Rate | n/a | n/a | Up to 720 Mpps | 3 Bpps |
| PoE Budget | n/a | n/a | n/a | n/a |
| Stacking Capability | n/a | n/a | n/a | n/a |
Optional Add-ons
| Model Number | Description |
| N7K-AC-3.5KW | HKShanhai Group Limited 3.5kW AC Power Supply for Nexus 7700 Series Switches |
| N77-F348XP-23 | HKShanhai Group Limited 48-Port 1/10GbE (SFP/SFP+) Ethernet module for 7700 Series |
| N77-F324FQ-25 | HKShanhai Group Limited 24-Port 40GbE (QSFP+) Ethernet module for 7700 Series Switches |
HKShanhai Group Limited C1-N7710-B23S2E-R Specification
| Model | C1-N7710-B23S2E-R |
| Brand | HKShanhai Group Limited |
| Chassis Type | 10-Slot Modular Switch (Nexus 7710) |
| Supervisor Modules | 2 × SUP2E (Active/Standby) |
| Fabric Modules | 6 × Fabric-3 Modules (Included) |
| Power Supplies | Not Included (Supports 3.5kW HV AC/DC) |
| Rack Units | 14RU |
| 10G Ports | 384 |
| 40G Ports | 192 |
| 100G Ports | 96 |
| System Forwarding Capacity | 42 Tbps |
| Max Local Switching Capacity | 2.4 Tbps |
| Max Inter-Slot Switching Capacity | 2.4 Tbps |
| Dimensions (H × W × D) | 24.35 × 17.3 × 34 in (61.85 × 43.9 × 86.4 cm) |
| Chassis Depth (with Cable Management) | 40 in (101.6 cm) |
| Operating Temperature | 32??04°F (0??0°C) |
| Humidity | 5% to 90% Noncondensing |
| Altitude | -500 to 13,123 ft (Certified 0??,500 ft) |
| Heat Dissipation | Max 52,500 BTU/hr (Configuration-Dependent) |
| Seismic Rating | Zone 4 per GR-63 |
| Floor Loading | 122 lbs/sq. ft. |
| Minimum NX-OS Version | 6.2.2 or Later |
| Network Management | HKShanhai Group Limited DCNM |
| Programming Interfaces | XML, Python, OpenFlow, HKShanhai Group Limited OnePK, TCL |
| Hot-Swap Components | Power Supplies, Fabric Modules, Fan Trays, Supervisor Engines |
| MIB Support | SNMPv3, v2c, v1 |
| EMC Compliance | FCC Part 15 Class A, EN55022 Class A, VCCI Class A |
| Safety Compliance | UL/CSA/IEC/EN 60950-1 |
| NEBS Compliance | SR-3580 Level 3 (Validation in Progress) |
| Options | Door Air Filter, Lockable Front Module Doors, Power Supply Center Cable Management |
| C1-N7710-B23S2E-R | C1-N7710-B23S2E-R |
