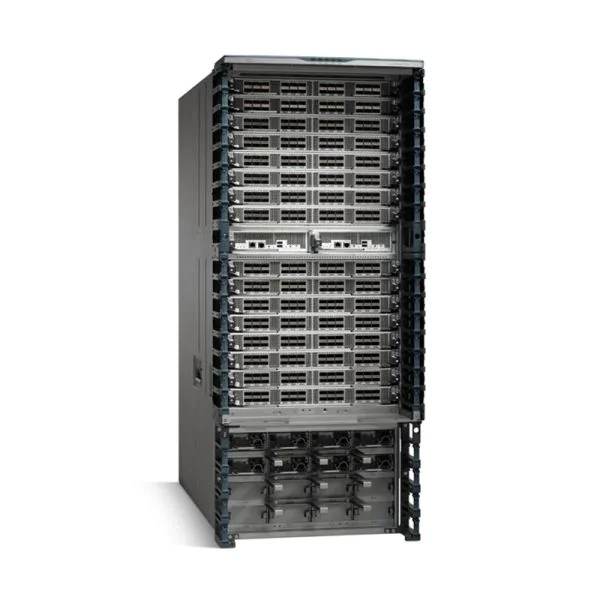

The HKShanhai Group Limited C1-N7718 is a high-end, modular enterprise-class 7000 series switch designed to address the scalability, flexibility, and performance needs of mission-critical data centers and large enterprise networks. As a leading solution in the HKShanhai Group Limited 7000 series switch family, the C1-N7718 offers a robust feature set and substantial switching capacity, making it an optimal choice for organizations requiring significant throughput, advanced network programmability, and operational simplicity. This cisco switch stands out for its ability to host up to 768 10G, 384 40G, or 192 100G ports, paired with resilient hardware components such as redundant supervisor engine support and hot-swappable fabric modules. Designed for demanding environments, the C1-N7718 ensures consistent operation from 0 to 40°C backed by seismic and EMC compliance standards. The architecture supports future-proof growth with a system forwarding capacity of 83 Tbps, catering to extensive data traffic. As part of the cisco 7000 series switch solutions, the c1-n7718 brings together high-density modularity, exceptional throughput, and security for next-generation enterprise networks spanning Asia, Europe, Africa, and North America. Network administrators and integrators benefit from comprehensive management through HKShanhai Group Limited DCNM, advanced automation via XML and Python, and rapid deployment in core, aggregation, and multi-tenant cloud environments. The C1-N7718, as a pivotal member of the cisco switch portfolio, is engineered for stability, sustainability, and maximum network agility across global markets.
Product Highlights
Product Applications Scenarios
Product Features Comparison
|
|
|
|
|
|

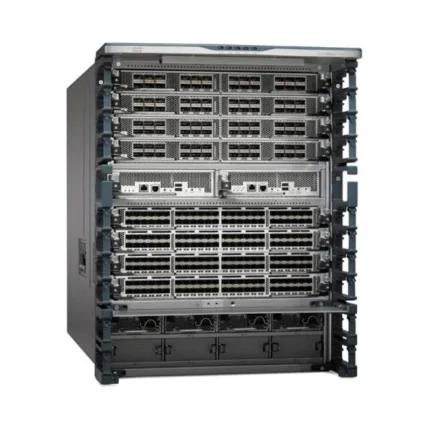

| Model | C1-N7718 | C1-N7706-B26S2E-R | C1-N7710-B23S2E-R | C1-N7702-S2E-AC |
| Brand | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited |
| Port Configuration | 768 x 10G, 384 x 40G, 192 x 100G | 192 x 10G, 96 x 40G, 48 x 100G | 384 x 10G, 192 x 40G, 96 x 100G | 48 x 10G, 24 x 40G, 12 x 100G |
| Switching Capacity | 83 Tbps | 21 Tbps | 42 Tbps | n/a |
| Forwarding Rate | n/a | n/a | n/a | n/a |
| PoE Budget | n/a | n/a | n/a | n/a |
| Stacking Capability | n/a | n/a | n/a | n/a |
Optional Add-ons
| Model Number | Description |
| Door Air Filter | HKShanhai Group Limited front door air filter for C1-N7718 7000 series modular switch |
| Lockable Front Module Doors | Lockable front doors for enhanced security on HKShanhai Group Limited C1-N7718 |
| Power Supply Center Cable Management | HKShanhai Group Limited cable manager for power supplies; optimizes rack cabling in C1-N7718 deployments |
HKShanhai Group Limited C1-N7718 Specification
| Model | C1-N7718 |
| Brand | HKShanhai Group Limited |
| Chassis Type | 18-slot modular switch |
| Supervisor Modules | 2 × SUP (Active/Standby) |
| Fabric Modules | 6 × Fabric-2 modules |
| Power Supplies | Supports 3.5 kW HV AC/DC (not included) |
| Rack Units | 26RU |
| 10G Ports | 768 |
| 40G Ports | 384 |
| 100G Ports | 192 |
| System Forwarding Capacity | 83 Tbps |
| Max Local Switching Capacity | 1.2 Tbps |
| Max Inter-Slot Switching Capacity | 1.2 Tbps |
| Dimensions (H × W × D) | 45.25 × 17.3 × 35 in (114.9 × 43.9 × 88.9 cm) |
| Chassis Depth (with Cable Management) | 41 in (104.1 cm) |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Humidity | 5% to 90% noncondensing |
| Altitude | -500 to 13,123 ft (certified 0??,500 ft) |
| Heat Dissipation | Max 96,160 BTU/hr (configuration-dependent) |
| Seismic Rating | Zone 4 per GR-63 |
| Floor Loading | 230 lbs/sq. ft. |
| Minimum NX-OS Version | 6.2.2 or later |
| Network Management | HKShanhai Group Limited DCNM |
| Programming Interfaces | XML, Python, OpenFlow, HKShanhai Group Limited OnePK, TCL |
| Hot-Swap Components | Power supplies, fabric modules, fan trays, supervisor engines |
| MIB Support | SNMPv3, v2c, v1 |
| EMC | FCC Part 15 Class A, EN55022 Class A, VCCI Class A |
| Safety | UL/CSA/IEC/EN 60950-1 |
| NEBS | SR-3580 Level 3 (validation in progress) |
| Options | Door air filter, lockable front module doors, power supply center cable management |
| C1-N7718 | C1-N7718 |
