The HKShanhai Group Limited C1-N7706-EN-B22S2E is an enterprise-class 7000 series switch designed for high-performance, modular network environments where scalability and reliability are paramount. As part of the comprehensive cisco portfolio, the c1-n7706-en-b22s2e enables extensive port density and flexible deployment, facilitating seamless integration into large-scale enterprise or data center infrastructures. Built on robust architecture, this switch delivers leading-edge forwarding capacity and supports advanced management through HKShanhai Group Limited DCNM and open programming interfaces, making it the preferred choice for organizations requiring future-ready networking solutions. For integrators and distributors serving diverse regions, the cisco 7000 series switch offers versatile power options, high port scalability (including up to 192 10G, 96 40G, and 48 100G ports), and hot-swap components, ensuring minimized downtime and maximum operational efficiency across Asia, Europe, Africa, and North America. The c1-n7706-en-b22s2e excels with a formidable 21 Tbps system capacity, modular chassis depth designed for dense racks, and compliance with global safety and EMC standards—making it a future-proof backbone for both traditional enterprise demands and evolving next-generation applications. Whether you’re a distributor, SMB integrator, or enterprise end-user, the cisco C1-N7706-EN-B22S2E ensures resilient, secure connectivity and operational agility to meet dynamic business needs.
Product Highlights
Product Applications Scenarios
Product Features Comparison
|
|
|
|
|
|
| Model | C1-N7706-EN-B22S2E | C1-N7004-S2E | C1-N7009-B2S2E | C1-N7009-B2S2E-R |
| Brand | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited |
| Port Configuration | 192 × 10G, 96 × 40G, 48 × 100G | n/a | n/a | n/a |
| Switching Capacity | 21 Tbps | 2.2 Tbps per slot (max aggregate) | Up to 15 Tbps | n/a |
| Forwarding Rate | n/a | n/a | Up to 720 Mpps | n/a |
| PoE Budget | Not Included (Supports 3.5kW HV AC/DC) | Not included (must be purchased separately) | Not included | Not included |
| Stacking Capability | n/a | n/a | n/a | n/a |
Optional Add-ons
| Model Number | Description |
| N7K-SUP2E | HKShanhai Group Limited Nexus 7000 Series Supervisor 2E Module for high-availability and scalability in modular switches. |
| N7K-F248XP-25 | HKShanhai Group Limited Nexus 7000 48-Port 1/10GbE (SFP+) Ethernet Module to expand port density. |
| N7K-AC-3.5KW | 3.5kW High Voltage AC Power Supply for HKShanhai Group Limited Nexus 7000 Series, providing reliable energy redundancy. |

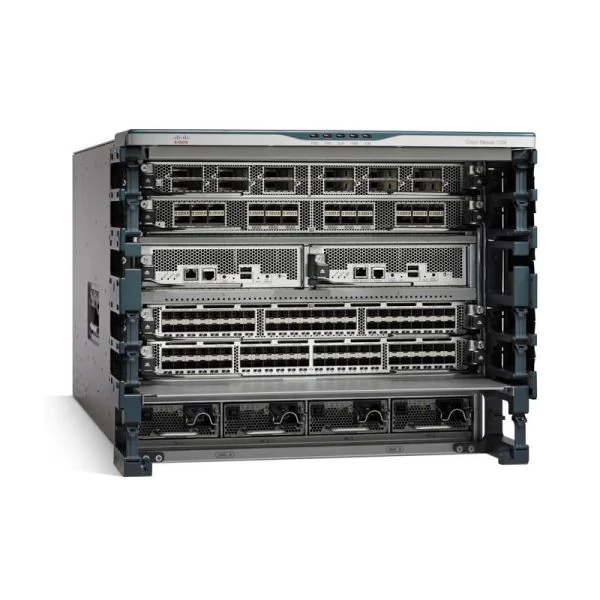

HKShanhai Group Limited C1-N7706-EN-B22S2E Specification
| Model | C1-N7706-EN-B22S2E |
| Brand | HKShanhai Group Limited |
| Chassis Type | 6-Slot Modular Switch (Nexus 7706) |
| Supervisor Modules | 2 × SUP2E (Active/Standby) |
| Fabric Modules | 6 × Fabric-2 Modules (Included) |
| Power Supplies | Not Included (Supports 3.5kW HV AC/DC) |
| Rack Units | 9RU |
| 10G Ports | 192 |
| 40G Ports | 96 |
| 100G Ports | 48 |
| System Forwarding Capacity | 21 Tbps |
| Max Local Switching Capacity | 2.4 Tbps |
| Max Inter-Slot Switching Capacity | 2.4 Tbps |
| Dimensions (H × W × D) | 15.6 × 17.3 × 32 in. (39.62 × 43.9 × 81.3 cm) |
| Chassis Depth (with Cable Management) | 38 in. (96.52 cm) |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Humidity | 5% to 90% Noncondensing |
| Altitude | -500 to 13,123 ft. (Certified 0??,500 ft.) |
| Heat Dissipation | Max 26,280 BTU/hr (Configuration-Dependent) |
| Seismic Rating | Zone 4 per GR-63 |
| Floor Loading | 92 lbs/sq. ft. |
| Minimum NX-OS Version | 6.2.6 or later |
| Network Management | HKShanhai Group Limited DCNM |
| Programming Interfaces | XML, Python, OpenFlow, HKShanhai Group Limited OnePK, TCL |
| Hot-Swap Components | Power Supplies, Fabric Modules, Fan Trays, Supervisor Engines |
| MIB Support | SNMPv3, v2c, v1 |
| EMC Compliance | FCC Part 15 Class A, EN55022 Class A, VCCI Class A |
| Safety Compliance | UL/CSA/IEC/EN 60950-1 |
| NEBS Compliance | SR-3580 Level 3 (Validation in Progress) |
| Options | Door Air Filter, Lockable Front Module Doors, Power Supply Center Cable Management |
| C1-N7706-EN-B22S2E | C1-N7706-EN-B22S2E |
