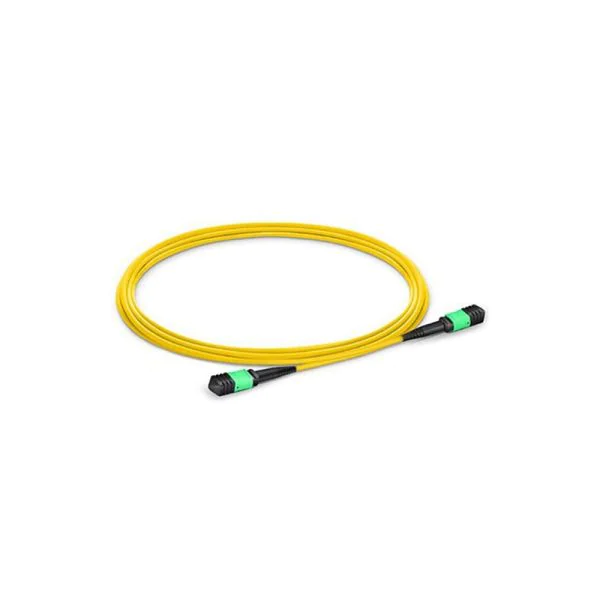

The Default Neutral-AMPOF-1M-AMPOF-G.652D-12C-3R-A-L is a high-performance fiber optic cable designed to deliver superior connectivity and efficient data transmission. This MPO/APC female-MPO/APC female cable brings notable improvements in fiber optic communications, ensuring low insertion loss and high return loss. Its 12 cores, 3.0mm round cable design, G.652D fiber, and LSZH sheath make it a reliable choice for various networking applications.
Quick Spec
| Connector Type: | MPO/APC female-MPO/APC female |
| Length: | 1M |
| Fiber Type: | G.652D |
| Number of Cores: | 12 |
| Cable Diameter: | 3.0mm round cable |
| Polarization: | Type A |
| Sheath Material: | LSZH |
Product Features
- MPO/APC female-MPO/APC female connectivity for secure and efficient coupling
- High-quality G.652D fiber ensuring consistent performance
- 12 cores for enhanced data transmission capacity
- 3.0mm round cable providing flexibility and durability
- Compliant with LSZH standards for enhanced safety in case of fire
Product Applications
- Data centers requiring efficient, high-capacity fiber optic cabling
- Telecommunication networks demanding low insertion loss and high return loss
- Enterprise networks looking for reliable and flexible fiber optic solutions
Supported Options
| Dust Caps: | Cap-DMPO |
| Cable Management Clips: | Clip-MGMT-12C |
| Testing Equipment: | Test-MPO-APC |
Compare to Similar Items
| Model: | Neutral-AMPOF-2M-AMPOF-G.652D-24C-3R-A-L |
| Key Difference: | 2M length, 24 cores |
| Model: | Neutral-SMPOF-1M-AMPOF-G.657A-12C-3R-B-L |
| Key Difference: | G.657A fiber type, Type B polarization |
| Model: | Neutral-LCMPOF-1M-AMPOF-G.652D-12C-2R-A-L |
| Key Difference: | 2.0mm round cable |
Get more information
Check Default Neutral-AMPOF-1M-AMPOF-G.652D-12C-3R-A-L price and Neutral-AMPOF-1M-AMPOF-G.652D-12C-3R-A-L datasheet, buy Default Neutral-AMPOF-1M-AMPOF-G.652D-12C-3R-A-L with best price and fast shipping. Free Live Chat are supported. For further information about the product, contact us through Live Chat or email us at sales@router-switch.com.
Other AMPOF-1M-AMPOF-G.652D-12C-3R-A-L Specification
Specifications of MPO/MTP fiber patch cords |
|||
|
Item |
Parameter |
||
|
Applicable connector type |
MPO end: MPO or MTP; branch end connector: FC, LC, SC, ST (customer’s choice) |
||
|
Fiber type |
Single-mode (G.652D;G.657A) |
Multi-mode (OM1,OM2,OM3,OM4) |
|
|
Working wavelength range |
1250~1650nm |
850nm, 1300nm |
|
|
Test wavelength |
1310nm, 1550nm |
850nm, 1300nm |
|
|
End face grinding type |
MPO end: APC; |
MPO end: UPC; |
|
|
Branch end connector: UPC or APC |
Branch end connector: UPC or APC |
||
|
Insertion loss (IL) |
MPO end: typical value??.50dB, maximum value??.70dB, low value(optional)??.35dB |
||
|
Branch-end connector: typical value??.20dB,maximum value??.30dB |
|||
|
Return loss (RL) |
MPO end:APC??0dB |
MPO end:??0dB |
|
|
Branch-end connector：UPC??0dB,APC??0dB |
Branch-end connector：≥35dB |
||
|
Optical cable type |
MPO end: ribbon optical cable, bundle optical cable; |
||
|
Branch end connector: 2.0 or 0.9mm loose tube fan-out |
|||
|
Repeatability |
??.10dB |
||
|
Interchangeability |
??.20dB |
||
|
Durability |
MPO: plug and unplug 500 times, typical change value ??.20dB |
||
|
Branch-end connector: plugged and unplugged 1000 times, typical change value ??.20dB |
|||
|
Vertical tension |
??20N (except 0.9mm optical cable) or customer requirements |
||
|
Working temperature |
-10℃ to +70??/p> |
||
|
Storage temperature |
-40℃ to +85??/p> |
||
|
Cable Jackets Color Codes |
SM: Yellow; OM4: Magenta; OM3: Aqua |
||
|
Connectors Color Codes |
SM: OS2: Green; OM4/OM3: Aqua |
||
|
Boots Color Codes |
8 Fibers: Grey; 12 Fibers: Black; 24 Fibers: Red |
||
Specifications of MPO/MTP Cassette（include adapter and harness cable) |
|||
|
Item |
Parameter |
||
|
Model |
RS-MPO-12C-TC-OM3 |
RS-MPO-24C-TC-OM3(or G.652D, OM4) |
|
|
Max. No. of Cores |
12 |
24 |
|
|
Material |
Typical: ABS+PC; Optional: Cold rolled steel |
||
|
Dimensions (mm) |
123 (L) x 97 (W) x 32 (H) (1.2mm thickness) |
||
|
Weight (kg) |
0.6kg |
||
|
Other |
Pls. choose MPO/MTP-LC cable model |
||
Specifications of MPO/MTP Management Rack |
|||
|
Item |
Parameter |
||
|
Model |
RS-MPO-IRA-4C-1U |
RS-MPO-DRA-4C-3U |
RS-MPO-IRA-12C-3U |
|
Max. No. of Modules |
4 |
4 |
12 |
|
Max. No. of Cores |
96 |
96 |
288 |
|
Material |
Cold rolled steel |
||
|
Approx Dimensions (mm) |
425 (L) x 350 (W) x 45 (H) (1.2mm thickness) |
425 (L) x 365 (W) x 45 (H) (1.2mm thickness) |
425 (L) x 345 (W) x 130 (H) (1.2mm thickness) |
|
Weight (kg) |
3 |
3 |
5 |
|
Other |
Pls. choose MPO/MTP Cassette model |
