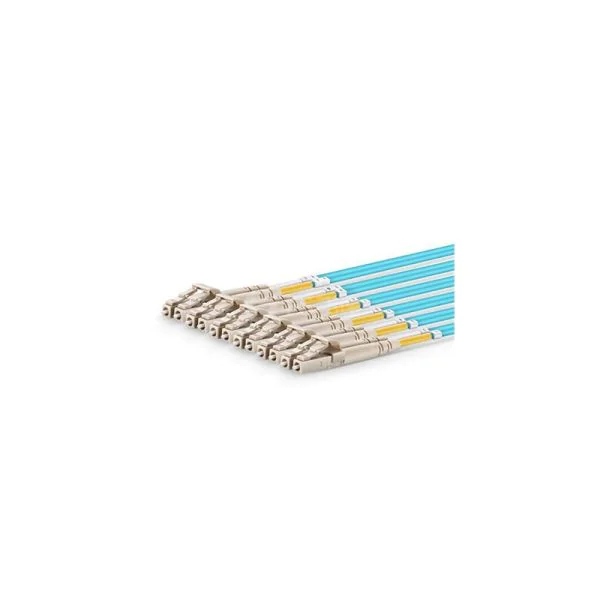

The Default Neutral-MPOM-1M-6LC(D)-OM3-12C-3R/2R-A-FO0.6-L is a high-performance fiber optic cable that meets industry standards for data communication. Suitable for MPO/UPC male to 6*LC/UPC duplex connections, this 1-meter cable supports OM3 fiber type, featuring 12 cores, a 3.0mm round cable design, and a 2.0mm fanout round cable. Designed with type A polarization and a fan-out length of 0.6m, it ensures optimal signal integrity with LSZH sheathing, making it an excellent choice for high-density cabling systems.
Quick Spec
| Brand | Default |
| Product Name | Neutral-MPOM-1M-6LC(D)-OM3-12C-3R/2R-A-FO0.6-L |
| Connection Type | MPO/UPC male to 6*LC/UPC duplex |
| Length | 1 meter |
| Polarity | Type A |
Product Features
- High-density fiber optic cable supporting 12 cores.
- OM3 fiber type capable of high-speed data transmission.
- MPO/UPC male to 6*LC/UPC duplex connection for versatile usage.
- 3.0mm round cable with 2.0mm fanout round cable for durability and flexibility.
- LSZH sheath for safety and environmental compliance.
Product Applications
- Data centers requiring high-density and high-performance cabling solutions.
- Telecommunications equipment needing reliable and fast fiber optic connections.
- Enterprise networks aiming for efficient and scalable fiber management.
Supported Options
| Accessory | Model |
| Patch Panel | PP24-OM3-LC |
| Cable Management System | CMS-12C-OM3 |
| Connector Cleaner | CC-UPC-Fiber |
Compare to Similar Items
| Model | Differences |
| Neutral-MPOM-2M-6LC(D)-OM4-24C-3R/2R-A-FO0.6-L | OM4 fiber type, 24 cores, 2-meter length |
| Neutral-MPOM-1M-12LC(D)-OM3-12C-3R/2R-A-FO1.0-L | 12 LC duplex connections, 1.0m fanout length |
| Neutral-MPOM-0.5M-6LC(D)-OM3-12C-3R/2R-A-FO0.3-L | 0.5-meter length, 0.3m fanout length |
Get more information
Check Default Neutral-MPOM-1M-6LC(D)-OM3-12C-3R/2R-A-FO0.6-L price and Neutral-MPOM-1M-6LC(D)-OM3-12C-3R/2R-A-FO0.6-L datasheet, buy Default Neutral-MPOM-1M-6LC(D)-OM3 fiber cable series with best price and fast shipping. Free Live Chat are supported.
Other MPOM-1M-6LC(D)-OM3-12C-3R/2R-A-FO0.6-L Specification
Specifications of MPO/MTP fiber patch cords |
|||
|
Item |
Parameter |
||
|
Applicable connector type |
MPO end: MPO or MTP; branch end connector: FC, LC, SC, ST (customer’s choice) |
||
|
Fiber type |
Single-mode (G.652D;G.657A) |
Multi-mode (OM1,OM2,OM3,OM4) |
|
|
Working wavelength range |
1250~1650nm |
850nm, 1300nm |
|
|
Test wavelength |
1310nm, 1550nm |
850nm, 1300nm |
|
|
End face grinding type |
MPO end: APC; |
MPO end: UPC; |
|
|
Branch end connector: UPC or APC |
Branch end connector: UPC or APC |
||
|
Insertion loss (IL) |
MPO end: typical value??.50dB, maximum value??.70dB, low value(optional)??.35dB |
||
|
Branch-end connector: typical value??.20dB,maximum value??.30dB |
|||
|
Return loss (RL) |
MPO end:APC??0dB |
MPO end:??0dB |
|
|
Branch-end connector：UPC??0dB,APC??0dB |
Branch-end connector：≥35dB |
||
|
Optical cable type |
MPO end: ribbon optical cable, bundle optical cable; |
||
|
Branch end connector: 2.0 or 0.9mm loose tube fan-out |
|||
|
Repeatability |
??.10dB |
||
|
Interchangeability |
??.20dB |
||
|
Durability |
MPO: plug and unplug 500 times, typical change value ??.20dB |
||
|
Branch-end connector: plugged and unplugged 1000 times, typical change value ??.20dB |
|||
|
Vertical tension |
??20N (except 0.9mm optical cable) or customer requirements |
||
|
Working temperature |
-10℃ to +70??/p> |
||
|
Storage temperature |
-40℃ to +85??/p> |
||
|
Cable Jackets Color Codes |
SM: Yellow; OM4: Magenta; OM3: Aqua |
||
|
Connectors Color Codes |
SM: OS2: Green; OM4/OM3: Aqua |
||
|
Boots Color Codes |
8 Fibers: Grey; 12 Fibers: Black; 24 Fibers: Red |
||
Specifications of MPO/MTP Cassette（include adapter and harness cable) |
|||
|
Item |
Parameter |
||
|
Model |
RS-MPO-12C-TC-OM3 |
RS-MPO-24C-TC-OM3(or G.652D, OM4) |
|
|
Max. No. of Cores |
12 |
24 |
|
|
Material |
Typical: ABS+PC; Optional: Cold rolled steel |
||
|
Dimensions (mm) |
123 (L) x 97 (W) x 32 (H) (1.2mm thickness) |
||
|
Weight (kg) |
0.6kg |
||
|
Other |
Pls. choose MPO/MTP-LC cable model |
||
Specifications of MPO/MTP Management Rack |
|||
|
Item |
Parameter |
||
|
Model |
RS-MPO-IRA-4C-1U |
RS-MPO-DRA-4C-3U |
RS-MPO-IRA-12C-3U |
|
Max. No. of Modules |
4 |
4 |
12 |
|
Max. No. of Cores |
96 |
96 |
288 |
|
Material |
Cold rolled steel |
||
|
Approx Dimensions (mm) |
425 (L) x 350 (W) x 45 (H) (1.2mm thickness) |
425 (L) x 365 (W) x 45 (H) (1.2mm thickness) |
425 (L) x 345 (W) x 130 (H) (1.2mm thickness) |
|
Weight (kg) |
3 |
3 |
5 |
|
Other |
Pls. choose MPO/MTP Cassette model |
