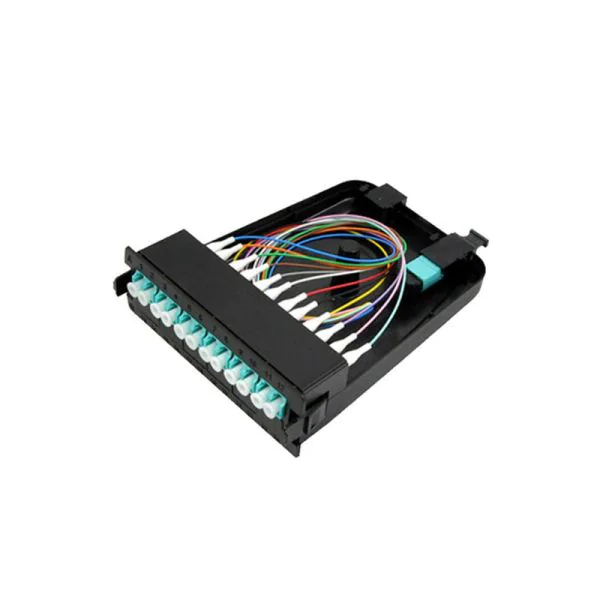

The Default Neutral-MPO-12C-TC-OM3 is an advanced MPO cassette with 12 cores designed for robust performance in high-density fiber optic networks. This cassette is built with durable ABS+PC materials and features OM3 specifications, ensuring top-notch data transmission speeds and reliability. Incorporating 6 DLC adapters and 1 MPO adapter, along with a 12-core MPO-LC harness cable, it is tailored for critical data center applications.
Quick Spec
| Brand | Default |
| Product Name | Neutral-MPO-12C-TC-OM3 |
| Material | ABS+PC |
| Core Count | 12 |
| Specification | OM3 |
Product Features
- Durable ABS+PC construction for enhanced longevity
- 12-core MPO-LC harness cable for high-density connectivity
- OM3 specification ensures superior data transmission
- Includes 6 DLC adapters and 1 MPO adapter for flexible connections
- Optimized for critical data center environments
Product Applications
- High-speed data center fiber infrastructure
- Telecommunications backbone networks
- Enterprise network systems requiring high-density and reliability
Supported Options
| Accessory | Model |
| DLC Adapter | DLC-6X |
| MPO Adapter | MPO-1X |
| MPO-LC Harness Cable | MPO-LC12 |
Compare to Similar Items
| Model | Differences |
| Default Neutral-MPO-8C-OM3 | 8 cores instead of 12 |
| Default Neutral-MPO-12C-OM4 | OM4 specification for enhanced data rate |
| Default Neutral-MPO-24C-OM3 | 24 cores for higher density |
Get more information
Check Default Neutral-MPO-12C-TC-OM3 price and Neutral-MPO-12C-TC-OM3 datasheet, buy Default Neutral-MPO-12C-TC-OM3 series with best price and fast shipping. Free Live Chat are supported. Contact us through Live Chat or sales@router-switch.com for further information about the product and its price.
Other MPO-12C-TC-OM3 Specification
Specifications of MPO/MTP fiber patch cords |
|||
|
Item |
Parameter |
||
|
Applicable connector type |
MPO end: MPO or MTP; branch end connector: FC, LC, SC, ST (customer’s choice) |
||
|
Fiber type |
Single-mode (G.652D;G.657A) |
Multi-mode (OM1,OM2,OM3,OM4) |
|
|
Working wavelength range |
1250~1650nm |
850nm, 1300nm |
|
|
Test wavelength |
1310nm, 1550nm |
850nm, 1300nm |
|
|
End face grinding type |
MPO end: APC; |
MPO end: UPC; |
|
|
Branch end connector: UPC or APC |
Branch end connector: UPC or APC |
||
|
Insertion loss (IL) |
MPO end: typical value??.50dB, maximum value??.70dB, low value(optional)??.35dB |
||
|
Branch-end connector: typical value??.20dB,maximum value??.30dB |
|||
|
Return loss (RL) |
MPO end:APC??0dB |
MPO end:??0dB |
|
|
Branch-end connector：UPC??0dB,APC??0dB |
Branch-end connector：≥35dB |
||
|
Optical cable type |
MPO end: ribbon optical cable, bundle optical cable; |
||
|
Branch end connector: 2.0 or 0.9mm loose tube fan-out |
|||
|
Repeatability |
??.10dB |
||
|
Interchangeability |
??.20dB |
||
|
Durability |
MPO: plug and unplug 500 times, typical change value ??.20dB |
||
|
Branch-end connector: plugged and unplugged 1000 times, typical change value ??.20dB |
|||
|
Vertical tension |
??20N (except 0.9mm optical cable) or customer requirements |
||
|
Working temperature |
-10℃ to +70??/p> |
||
|
Storage temperature |
-40℃ to +85??/p> |
||
|
Cable Jackets Color Codes |
SM: Yellow; OM4: Magenta; OM3: Aqua |
||
|
Connectors Color Codes |
SM: OS2: Green; OM4/OM3: Aqua |
||
|
Boots Color Codes |
8 Fibers: Grey; 12 Fibers: Black; 24 Fibers: Red |
||
Specifications of MPO/MTP Cassette（include adapter and harness cable) |
|||
|
Item |
Parameter |
||
|
Model |
RS-MPO-12C-TC-OM3 |
RS-MPO-24C-TC-OM3(or G.652D, OM4) |
|
|
Max. No. of Cores |
12 |
24 |
|
|
Material |
Typical: ABS+PC; Optional: Cold rolled steel |
||
|
Dimensions (mm) |
123 (L) x 97 (W) x 32 (H) (1.2mm thickness) |
||
|
Weight (kg) |
0.6kg |
||
|
Other |
Pls. choose MPO/MTP-LC cable model |
||
Specifications of MPO/MTP Management Rack |
|||
|
Item |
Parameter |
||
|
Model |
RS-MPO-IRA-4C-1U |
RS-MPO-DRA-4C-3U |
RS-MPO-IRA-12C-3U |
|
Max. No. of Modules |
4 |
4 |
12 |
|
Max. No. of Cores |
96 |
96 |
288 |
|
Material |
Cold rolled steel |
||
|
Approx Dimensions (mm) |
425 (L) x 350 (W) x 45 (H) (1.2mm thickness) |
425 (L) x 365 (W) x 45 (H) (1.2mm thickness) |
425 (L) x 345 (W) x 130 (H) (1.2mm thickness) |
|
Weight (kg) |
3 |
3 |
5 |
|
Other |
Pls. choose MPO/MTP Cassette model |
