The Default Neutral-MPOM-0.35M-12LC-OM4-12C-0.9mm-FO0.35-L is a high-efficiency MPO/UPC male to 12*LC/UPC round cable ideal for dense fiber optic connectivity. Designed with OM4 compliance, it ensures optimal performance over longer distances and supports high-speed data transmission. This cable comes with a low smoke zero halogen (LSZH) sheath, ensuring safety and reducing toxic emission during fire incidents.
Quick Spec
| Brand | Default |
| Model | Neutral-MPOM-0.35M-12LC-OM4-12C-0.9mm-FO0.35-L |
| Cable Length | 0.35M |
| Core Count | 12 Cores |
| Sheath Type | LSZH |
Product Features
- MPO/UPC male to 12*LC/UPC Configuration
- Round cable with 0.9mm fanout diameter
- OM4 compliance for high-speed data transfer
- Low Smoke Zero Halogen (LSZH) sheath for enhanced safety
- 0.35M fanout length for flexible installation
Product Applications
- High-density data center networks
- Storage Area Networks (SAN) systems requiring reliable high-speed connections
- Telecommunications networks needing scalable fiber solutions
Supported Options
| Accessory | Model |
| Carrying Case | CC-500M |
| Cable Management Tray | CMT-1U |
| LC Fiber Adapters | FA-LC-OM4 |
Compare to Similar Items
| Related Model | Differences |
| Neutral-MPOM-1M-24LC-OM4 | Has a longer cable length of 1 meter and 24 LC connectors |
| Neutral-MPOM-0.5M-12SC-OM3 | Supports OM3 standard and uses SC connectors |
| Neutral-MPOM-2M-8LC-OM4 | Has a longer cable length of 2 meters with 8 LC connectors |
Get more information
Check Default Neutral-MPOM-0.35M-12LC-OM4-12C-0.9mm-FO0.35-L price and Neutral-MPOM-0.35M-12LC-OM4-12C-0.9mm-FO0.35-L datasheet, buy Default Neutral-MPOM-0.35M-12LC-OM4-12C-0.9mm-FO0.35-L with best price and fast shipping. Free Live Chat are supported. For further information about the product and its price, contact us through Live Chat or sales@router-switch.com.
Other MPOM-0.35M-12LC-OM4-12C-0.9mm-FO0.35-L Specification

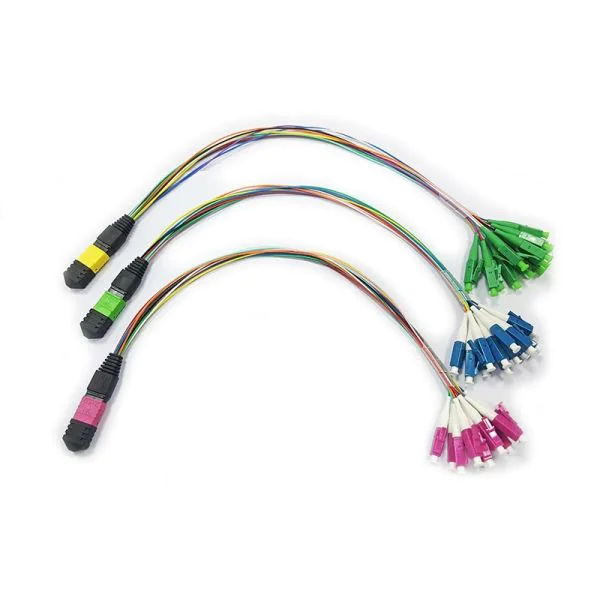

Specifications of MPO/MTP fiber patch cords |
|||
|
Item |
Parameter |
||
|
Applicable connector type |
MPO end: MPO or MTP; branch end connector: FC, LC, SC, ST (customer’s choice) |
||
|
Fiber type |
Single-mode (G.652D;G.657A) |
Multi-mode (OM1,OM2,OM3,OM4) |
|
|
Working wavelength range |
1250~1650nm |
850nm, 1300nm |
|
|
Test wavelength |
1310nm, 1550nm |
850nm, 1300nm |
|
|
End face grinding type |
MPO end: APC; |
MPO end: UPC; |
|
|
Branch end connector: UPC or APC |
Branch end connector: UPC or APC |
||
|
Insertion loss (IL) |
MPO end: typical value??.50dB, maximum value??.70dB, low value(optional)??.35dB |
||
|
Branch-end connector: typical value??.20dB,maximum value??.30dB |
|||
|
Return loss (RL) |
MPO end:APC??0dB |
MPO end:??0dB |
|
|
Branch-end connector：UPC??0dB,APC??0dB |
Branch-end connector：≥35dB |
||
|
Optical cable type |
MPO end: ribbon optical cable, bundle optical cable; |
||
|
Branch end connector: 2.0 or 0.9mm loose tube fan-out |
|||
|
Repeatability |
??.10dB |
||
|
Interchangeability |
??.20dB |
||
|
Durability |
MPO: plug and unplug 500 times, typical change value ??.20dB |
||
|
Branch-end connector: plugged and unplugged 1000 times, typical change value ??.20dB |
|||
|
Vertical tension |
??20N (except 0.9mm optical cable) or customer requirements |
||
|
Working temperature |
-10℃ to +70??/p> |
||
|
Storage temperature |
-40℃ to +85??/p> |
||
|
Cable Jackets Color Codes |
SM: Yellow; OM4: Magenta; OM3: Aqua |
||
|
Connectors Color Codes |
SM: OS2: Green; OM4/OM3: Aqua |
||
|
Boots Color Codes |
8 Fibers: Grey; 12 Fibers: Black; 24 Fibers: Red |
||
Specifications of MPO/MTP Cassette（include adapter and harness cable) |
|||
|
Item |
Parameter |
||
|
Model |
RS-MPO-12C-TC-OM3 |
RS-MPO-24C-TC-OM3(or G.652D, OM4) |
|
|
Max. No. of Cores |
12 |
24 |
|
|
Material |
Typical: ABS+PC; Optional: Cold rolled steel |
||
|
Dimensions (mm) |
123 (L) x 97 (W) x 32 (H) (1.2mm thickness) |
||
|
Weight (kg) |
0.6kg |
||
|
Other |
Pls. choose MPO/MTP-LC cable model |
||
Specifications of MPO/MTP Management Rack |
|||
|
Item |
Parameter |
||
|
Model |
RS-MPO-IRA-4C-1U |
RS-MPO-DRA-4C-3U |
RS-MPO-IRA-12C-3U |
|
Max. No. of Modules |
4 |
4 |
12 |
|
Max. No. of Cores |
96 |
96 |
288 |
|
Material |
Cold rolled steel |
||
|
Approx Dimensions (mm) |
425 (L) x 350 (W) x 45 (H) (1.2mm thickness) |
425 (L) x 365 (W) x 45 (H) (1.2mm thickness) |
425 (L) x 345 (W) x 130 (H) (1.2mm thickness) |
|
Weight (kg) |
3 |
3 |
5 |
|
Other |
Pls. choose MPO/MTP Cassette model |
