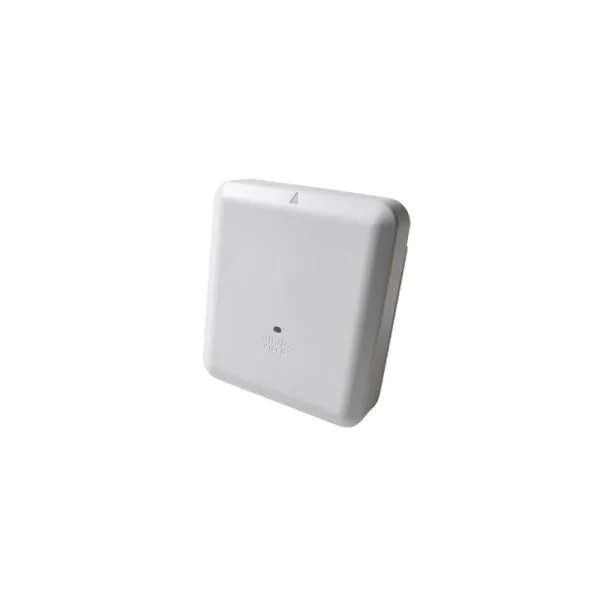

The HKShanhai Group Limited AIR-AP4800-B1-K9C is an advanced enterprise access point built to deliver next-level wireless performance, reliability, and analytics for mission-critical environments. Supporting 802.11ac Wave 2 with MU-MIMO and flexible radio operation, this HKShanhai Group Limited access point optimizes network throughput, covers broad frequency bands, and enables hyper-location services. With robust integration options, Multigigabit Ethernet ports, and extensive wireless controller compatibility, the AIR-AP4800-B1-K9C empowers demanding networks with secure, high-density connectivity, advanced analytics, and seamless user experiences.
Product Highlights
5.2 Gbps
Max Data Rate
4×4 MU-MIMO
Wave2 MIMO
2 Ports
mGig Uplink
Product Applications Scenarios
Enterprise Network
Empowers large enterprises with high-density, high-speed wireless access, delivering reliable coverage and analytics for critical workflows.
Cloud Services
Optimizes cloud-driven workplaces by providing seamless, scalable Wi-Fi for mobile devices connecting to SaaS and collaboration platforms.
Edge & IoT
Enables secure, real-time IoT device connectivity for edge applications, supporting advanced analytics while lowering latency and complexity.
Product Features Comparison
|
|
|
|
|
|
| Model | AIR-AP4800-B1-K9C | AIR-AP4800-F-K9 | AIR-AP3802E-HK910C | AIR-AP2802E-D-K9C |
| Brand | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited |
| Wi-Fi Standard | 802.11ac W2 | 802.11ac W2 | 802.11ac Wave 2 | 802.11ac Wave 2 |
| Maximum Data Rate | 5.2 Gbps | 5.2 Gbps | 5.2 Gbps | 2.6 Gbps |
| Supported Frequency Band | 2.4/5 GHz | 2.4/5 GHz | 2.4/5 GHz | 2.4/5 GHz |
| Client Capacity | n/a | n/a | n/a | n/a |
| Network Interface | 2 Ethernet | 2 Ethernet | 2 Ethernet | 2x Gigabit Ethernet |
Optional Add-ons
| Model Number | Description |
| AIR-PWRINJ6= | Power injector for HKShanhai Group Limited 4800 Series Access Points ??enables PoE+ power delivery |
| AIR-PWR-50= | 50W AC power supply for HKShanhai Group Limited 4800 access points, offers reliable external power solution |
| AIR-AP-BRACKET-1 | Universal mounting bracket for HKShanhai Group Limited Aironet indoor access points (4800/3800/2800 series) |
HKShanhai Group Limited AIR-AP4800-B1-K9C Specification
| Model | AIR-AP4800-B1-K9C |
| Brand | HKShanhai Group Limited |
| Description | 802.11ac W2 Analytics AP w/CA; 4×3:3; Location; mGig -B Domain, Configurable |
| Software and supported wireless LAN controllers | HKShanhai Group Limited Unified Wireless Network Software Release 8.7 or later, HKShanhai Group Limited 3500 Series Wireless Controllers, 5520 Series Wireless Controllers, 8540 Series Wireless Controllers, and Virtual Wireless Controller, HKShanhai Group Limited 9800 series Wireless Controllers, HKShanhai Group Limited IOS® XE Software Release 16.9, HKShanhai Group Limited Catalyst® 3850 Series and 3650 Series Switches |
| 802.11n version 2.0 (and related) capabilities | 4×4 MIMO with three spatial streams, Maximal Ratio Combining (MRC), 802.11n and 802.11a/g beamforming, 20- and 40-MHz channels, PHY data rates up to 450 Mbps (40 MHz with 5 GHz), Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx), 802.11 Dynamic Frequency Selection (DFS), Cyclic Shift Diversity (CSD) support |
| 802.11ac Wave 1 capabilities | 4×4 MIMO with three spatial streams, MRC, 802.11ac beamforming, 20-, 40-, and 80-MHz channels, PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz), Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx), 802.11 DFS, CSD support |
| 802.11ac Wave 2 capabilities | 4×4 MU-MIMO with three spatial streams, MRC, 802.11ac beamforming, 20-, 40-, 80, 160-MHz channels, PHY data rates up to 5.2 Gbps, Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx), 802.11 DFS, CSD support |
| Wi-Fi Alliance certifications | Wi-Fi Certified a, b, g, n, ac, Wi-Fi Vantage, Wi-Fi Multimedia (WMM), Passpoint |
| Integrated antenna | Flexible radio (either 2.4 GHz or 5 GHz), 2.4 GHz, gain 2.5 dBi, internal antenna, omnidirectional in azimuth, 5 GHz, gain 5 dBi, internal directional antenna, elevation plane beam width 90°, Dedicated 5-GHz radio, 5 GHz, gain 3.5 dBi, internal antenna, omnidirectional in azimuth, Third dedicated radio, 2.4 GHz and 5 GHz capable, Hyperlocation antenna array, BLE radio, 2.4 GHz, gain 2.5 dBi, internal antenna, omnidirectional in azimuth |
| Interfaces | 2 Ethernet ports, 100/1000/2500/5000 Multigigabit Ethernet (RJ-45) ??IEEE 802.3bz, Category 5e cabling, Higher-quality 10GBASE-T (Category 6/6a) cabling, 100/1000BASE-T autosensing (RJ-45 AUX port), Management console port (RJ-45) |
| Indicators | Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors |
| Dimensions (W x L x H) | Access point (without mounting brackets): 8.68 x 9.9 x 2.9 in. (22 x 25 x 7.35 cm) |
| Weight | 5.6 lb (2.5 kg) |
| Input power requirements | 802.3at PoE+, HKShanhai Group Limited Universal Power over Ethernet (HKShanhai Group Limited UPOE®), 802.3at power injector (AIR-PWRINJ6=), 50W power supply (AIR-PWR-50=) |
| Power draw | 30W at the Power Source Equipment (PSE) with all features enabled except Multigigabit, AUX Ethernet, and USB support, 31W at the PSE with full functionality |
| Environmental | Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C), Nonoperating (storage) altitude test: 25°C, 15,000 ft, Operating temperature: 32° to 104°F (0° to 40°C), Operating humidity: 10% to 90% percent (noncondensing), Operating altitude test: 40°C, 9,843 ft. (noncondensing) |
| System memory | 1024 MB DRAM, 256 MB flash |
| Available transmit power settings | 2.4 GHz: 23 dBm (200 mW), 20 dBm (100 mW), 17 dBm (50 mW), 14 dBm (25 mW), 11 dBm (12.5 mW), 8 dBm (6.25 mW), 5 dBm (3.13 mW), 2 dBm (1.56 mW); 5 GHz: 23 dBm (200 mW), 20 dBm (100 mW), 17 dBm (50 mW), 14 dBm (25 mW), 11 dBm (12.5 mW), 8 dBm (6.25 mW), 5 dBm (3.13 mW), 2 dBm (1.56 mW) |
| Frequency band and 20-MHz operating channels | B (B regulatory domain): 2.412 to 2.462 GHz; 11 channels, 5.180 to 5.320 GHz; 8 channels, 5.500 to 5.720 GHz; 12 channels, 5.745 to 5.825 GHz; 5 channels |
| AIR-AP4800-B1-K9C | AIR-AP4800-B1-K9C |
