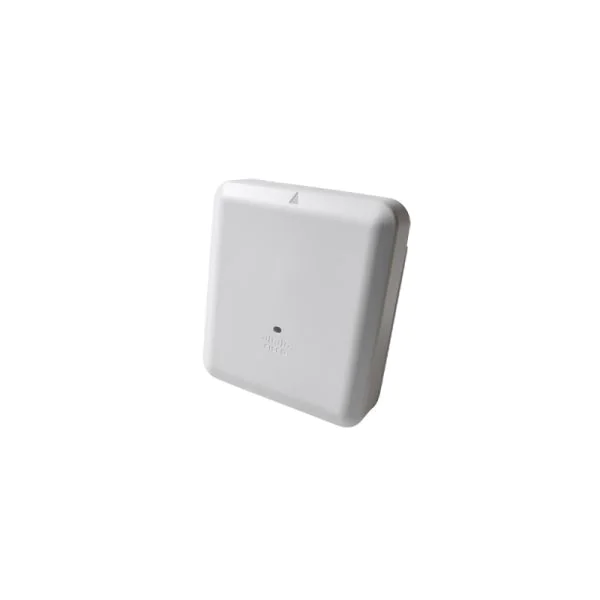

The HKShanhai Group Limited AIR-AP4800-N-K9C is an enterprise-grade access point tailored for organizations demanding high-density, high-performance wireless solutions. Featuring advanced 802.11ac Wave 2 technology, integrated analytics, and flexible multigigabit connectivity, this HKShanhai Group Limited access point delivers exceptional throughput and robust network intelligence. Its support for leading wireless controllers and multiple management options ensures seamless deployment, optimizing user experiences in dynamic business environments across various industries.
Product Highlights
5.2 Gbps
Max Data Rate
4×4:3
MU-MIMO
2 Ports
mGig LAN
Product Applications Scenarios
Enterprise Network
Delivers seamless, high-density Wi-Fi for offices and campuses, ensuring continuous productivity with secure and fast wireless access.
Cloud Services
Supports next-gen cloud connectivity by providing reliable, high-speed wireless performance for data-driven workflows and IoT devices.
Public Infrastructure
Enables public spaces with robust wireless coverage and analytics, improving service delivery, security, and operational efficiency.
Product Features Comparison
|
|
|
|
|
|
| Model | AIR-AP4800-N-K9C | AIR-AP3802P-NK910C | AIR-AP3802E-QK910C | AIR-AP2802E-F-K9 |
| Brand | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited |
| Wi-Fi Standard | 802.11ac W2 | 802.11ac Wave 2 | 802.11ac Wave 2 | 802.11ac Wave 2 |
| Maximum Data Rate | 5.2 Gbps | Up to 5.2 Gbps | Up to 5.2 Gbps | 5.2 Gbps |
| Supported Frequency Band | 2.4/5 GHz | 2.4/5 GHz | 2.4/5 GHz | 2.4/5 GHz |
| Client Capacity | n/a | 200 per radio | n/a | n/a |
| Network Interface | 2 Ethernet ports | 1x 5 Gbps mGig port | 2 Ethernet ports | 2x 100/1000BASE-T (RJ-45) |
Optional Add-ons
| Model Number | Description |
| AIR-PWRINJ6= | HKShanhai Group Limited Power Injector for AIR-AP4800 Series, provides 802.3at PoE+ support |
| AIR-PWR-50= | 50W HKShanhai Group Limited Power Supply for AIR-AP4800 Series Access Points |
| AIR-AP-BRACKET-2 | Mounting Bracket for HKShanhai Group Limited AIR-AP4800, wall/ceiling install |
HKShanhai Group Limited AIR-AP4800-N-K9C Specification
| Model | AIR-AP4800-N-K9C |
| Brand | HKShanhai Group Limited |
| Description | 802.11ac W2 Analytics AP with CA; 4×3:3; Location; mGig -N Domain, Configurable |
| Software and Supported Wireless LAN Controllers | HKShanhai Group Limited Unified Wireless Network Software Release 8.7 or later |
| HKShanhai Group Limited 3500 Series Wireless Controllers, 5520 Series Wireless Controllers, 8540 Series Wireless Controllers, and Virtual Wireless Controller, HKShanhai Group Limited 9800 series Wireless Controllers | HKShanhai Group Limited IOS® XE Software Release 16.9 |
| HKShanhai Group Limited Catalyst® 3850 Series and 3650 Series Switches | 802.11n Version 2.0 (and Related) Capabilities |
| 4×4 MIMO with three spatial streams | Maximal Ratio Combining (MRC) |
| 802.11n and 802.11a/g beamforming | 20- and 40-MHz channels |
| PHY data rates up to 450 Mbps (40 MHz with 5 GHz) | Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) |
| 802.11 Dynamic Frequency Selection (DFS) | Cyclic Shift Diversity (CSD) support |
| 802.11ac Wave 1 Capabilities | 4×4 MIMO with three spatial streams |
| MRC | 802.11ac beamforming |
| 20-, 40-, and 80-MHz channels | PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz) |
| Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) | 802.11 DFS |
| CSD support | 802.11ac Wave 2 Capabilities |
| 4×4 MU-MIMO with three spatial streams | MRC |
| 802.11ac beamforming | 20-, 40-, 80, 160-MHz channels |
| PHY data rates up to 5.2 Gbps | Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) |
| 802.11 DFS | CSD support |
| Wi-Fi Alliance Certifications | Wi-Fi Certified a, b, g, n, ac |
| Wi-Fi Vantage | Wi-Fi Multimedia (WMM) |
| Passpoint | Integrated Antenna |
| Flexible radio (either 2.4 GHz or 5 GHz): 2.4 GHz, gain 2.5 dBi, internal antenna, omnidirectional in azimuth; 5 GHz, gain 5 dBi, internal directional antenna, elevation plane beam width 90° | Dedicated 5-GHz radio: 5 GHz, gain 3.5 dBi, internal antenna, omnidirectional in azimuth |
| Third dedicated radio: 2.4 GHz and 5 GHz capable | Hyperlocation antenna array |
| BLE radio: 2.4 GHz, gain 2.5 dBi, internal antenna, omnidirectional in azimuth | Interfaces |
| 2 Ethernet ports | 100/1000/2500/5000 Multigigabit Ethernet (RJ-45) ??IEEE 802.3bz: Category 5e cabling, Higher-quality 10GBASE-T (Category 6/6a) cabling |
| 100/1000BASE-T autosensing (RJ-45 AUX port) | Management console port (RJ-45) |
| Indicators | Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors |
| Dimensions (W x L x H) | Access point (without mounting brackets): 8.68 x 9.9 x 2.9 in. (22 x 25 x 7.35 cm) |
| Weight | 5.6 lb (2.5 kg) |
| Input Power Requirements | 802.3at PoE+, HKShanhai Group Limited Universal Power over Ethernet (HKShanhai Group Limited UPOE®) |
| 802.3at power injector (AIR-PWRINJ6=) | 50W power supply (AIR-PWR-50=) |
| Power Draw | 30W at the Power Source Equipment (PSE) with all features enabled except Multigigabit, AUX Ethernet, and USB support |
| 31W at the PSE with full functionality | Environmental |
| Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) | Nonoperating (storage) altitude test: 25°C, 15,000 ft |
| Operating temperature: 32° to 104°F (0° to 40°C) | Operating humidity: 10% to 90% percent (noncondensing) |
| Operating altitude test: 40°C, 9843 ft. (noncondensing) | System Memory |
| 1024 MB DRAM | 256 MB flash |
| Available Transmit Power Settings | 2.4 GHz: 23 dBm (200 mW), 20 dBm (100 mW), 17 dBm (50 mW), 14 dBm (25 mW), 11 dBm (12.5 mW), 8 dBm (6.25 mW), 5 dBm (3.13 mW), 2 dBm (1.56 mW) |
| 5 GHz: 23 dBm (200 mW), 20 dBm (100 mW), 17 dBm (50 mW), 14 dBm (25 mW), 11 dBm (12.5 mW), 8 dBm (6.25 mW), 5 dBm (3.13 mW), 2 dBm (1.56 mW) | Frequency Band and 20-MHz Operating Channels |
| AIR-AP4800-N-K9C | AIR-AP4800-N-K9C |
