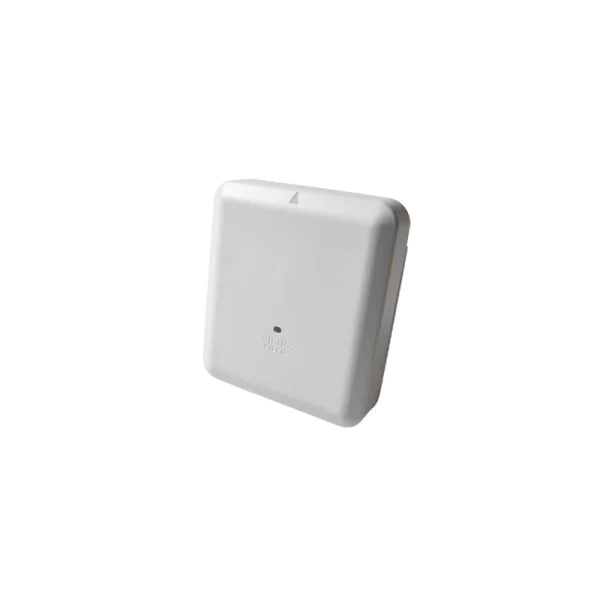

The HKShanhai Group Limited AIR-AP4800-A-K9C is an advanced enterprise-class access point engineered for high-density environments. It features 802.11ac Wave 2 technology, enabling seamless multi-user connectivity and strong wireless analytics. With flexible dual-band radios, integrated location services, and Multigigabit support, this HKShanhai Group Limited access point delivers exceptional throughput, secure wireless coverage, and scalable management for demanding modern networks. Its robust feature set ensures optimized connectivity, making it an ideal choice for large enterprises seeking reliable and future-proof wireless solutions.
Product Highlights
5.2 Gbps
Max Data
4×4 MIMO
Wave 2
2 ports
mGig Eth
Product Applications Scenarios
Enterprise Network
Delivers robust Wi-Fi for seamless connectivity and high-speed data access in corporate offices, reducing bottlenecks and improving uptime and user productivity.
Cloud Services
Offers reliable, high-performance wireless that ensures fast uplink for cloud apps, enhancing access, minimizing latency, and optimizing user experience.
Edge & IoT
Enables secure, high-capacity IoT deployments by supporting many devices, helping streamline management and empower real-time data collection and control.
Product Features Comparison
|
|
|
|
|
|
| Model | AIR-AP4800-A-K9C | AIR-AP4800-B-K9C | AIR-AP4800-D-K9C | AIR-AP4800-R-K9 |
| Brand | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited |
| Wi-Fi Standard | 802.11ac Wave 2 | 802.11ac Wave 2 | 802.11ac Wave 2 | 802.11ac Wave 2 |
| Maximum Data Rate | 5.2 Gbps | 5.2 Gbps | 5.2 Gbps | 5.2 Gbps |
| Supported Frequency Band | 2.4 GHz & 5 GHz | 2.4 GHz & 5 GHz | 2.4 GHz & 5 GHz | 2.4 GHz & 5 GHz |
| Client Capacity | n/a | n/a | n/a | n/a |
| Network Interface | 2x Multigigabit Ethernet (RJ-45) | 2x Multigigabit Ethernet (RJ-45) | 2x Multigigabit Ethernet (RJ-45) | mGig Ethernet Port |
Optional Add-ons
| Model Number | Description |
| AIR-PWRINJ6= | HKShanhai Group Limited Power Injector for 802.3at PoE+ AP, supplies power and Ethernet connectivity. |
| AIR-PWR-50= | HKShanhai Group Limited 50W Power Supply for high performance AP, stable AC input for enterprise use. |
| AIR-AP-BRACKET-1 | Universal mounting bracket for secure installation of HKShanhai Group Limited 4800 Series AP. |
HKShanhai Group Limited AIR-AP4800-A-K9C Specification
| Model | AIR-AP4800-A-K9C |
| Brand | HKShanhai Group Limited |
| Description | 802.11ac W2 Analytics AP w/CA; 4×3:3; Location; mGig -A Domain, Configurable |
| Software and supported wireless LAN controllers | HKShanhai Group Limited Unified Wireless Network Software Release 8.7 or later, HKShanhai Group Limited 3500 Series Wireless Controllers, 5520 Series Wireless Controllers, 8540 Series Wireless Controllers, and Virtual Wireless Controller, HKShanhai Group Limited 9800 series Wireless Controllers, HKShanhai Group Limited IOS® XE Software Release 16.9, HKShanhai Group Limited Catalyst® 3850 Series and 3650 Series Switches |
| 802.11n version 2.0 capabilities | 4×4 MIMO with three spatial streams, Maximal Ratio Combining (MRC), 802.11n and 802.11a/g beamforming, 20- and 40-MHz channels, PHY data rates up to 450 Mbps (40 MHz with 5 GHz), Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx), 802.11 Dynamic Frequency Selection (DFS), Cyclic Shift Diversity (CSD) support |
| 802.11ac Wave 1 capabilities | 4×4 MIMO with three spatial streams, MRC, 802.11ac beamforming, 20-, 40-, and 80-MHz channels, PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz), Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx), 802.11 DFS, CSD support |
| 802.11ac Wave 2 capabilities | 4×4 MU-MIMO with three spatial streams, MRC, 802.11ac beamforming, 20-, 40-, 80-, 160-MHz channels, PHY data rates up to 5.2 Gbps, Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx), 802.11 DFS, CSD support |
| Wi-Fi Alliance certifications | Wi-Fi Certified a, b, g, n, ac, Wi-Fi Vantage, Wi-Fi Multimedia (WMM), Passpoint |
| Integrated antenna | Flexible radio (either 2.4 GHz or 5 GHz): 2.4 GHz, gain 2.5 dBi, internal antenna, omnidirectional in azimuth; 5 GHz, gain 5 dBi, internal directional antenna, elevation plane beam width 90°, Dedicated 5-GHz radio: 5 GHz, gain 3.5 dBi, internal antenna, omnidirectional in azimuth, Third dedicated radio: 2.4 GHz and 5 GHz capable, Hyperlocation antenna array, BLE radio: 2.4 GHz, gain 2.5 dBi, internal antenna, omnidirectional in azimuth |
| Interfaces | 2 Ethernet ports, 100/1000/2500/5000 Multigigabit Ethernet (RJ-45) ??IEEE 802.3bz: Category 5e cabling, Higher-quality 10GBASE-T (Category 6/6a) cabling, 100/1000BASE-T autosensing (RJ-45 AUX port), Management console port (RJ-45) |
| Indicators | Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors |
| Dimensions (W x L x H) | Access point (without mounting brackets): 8.68 x 9.9 x 2.9 in. (22 x 25 x 7.35 cm) |
| Weight | 5.6 lb (2.5 kg) |
| Input power requirements | 802.3at PoE+, HKShanhai Group Limited Universal Power over Ethernet (HKShanhai Group Limited UPOE®), 802.3at power injector (AIR-PWRINJ6=), 50W power supply (AIR-PWR-50=) |
| Power draw | 30W at the Power Source Equipment (PSE) with all features enabled except Multigigabit, AUX Ethernet, and USB support; 31W at the PSE with full functionality |
| Environmental | Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C), Nonoperating (storage) altitude test: 25˚C, 15,000 ft, Operating temperature: 32° to 104°F (0° to 40°C), Operating humidity: 10% to 90% percent (noncondensing), Operating altitude test: 40˚C, 9843 ft. (noncondensing) |
| System memory | 1024 MB DRAM, 256 MB flash |
| Available transmit power settings | 2.4 GHz: 23 dBm (200 mW), 20 dBm (100 mW), 17 dBm (50 mW), 14 dBm (25 mW), 11 dBm (12.5 mW), 8 dBm (6.25 mW), 5 dBm (3.13 mW), 2 dBm (1.56 mW), 5 GHz: 23 dBm (200 mW), 20 dBm (100 mW), 17 dBm (50 mW), 14 dBm (25 mW), 11 dBm (12.5 mW), 8 dBm (6.25 mW), 5 dBm (3.13 mW), 2 dBm (1.56 mW) |
| Frequency band and 20-MHz operating channels | A (A regulatory domain): 2.412 to 2.462 GHz; 11 channels, 5.180 to 5.320 GHz; 8 channels, 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz), 5.745 to 5.825 GHz; 5 channels |
| AIR-AP4800-A-K9C | AIR-AP4800-A-K9C |
