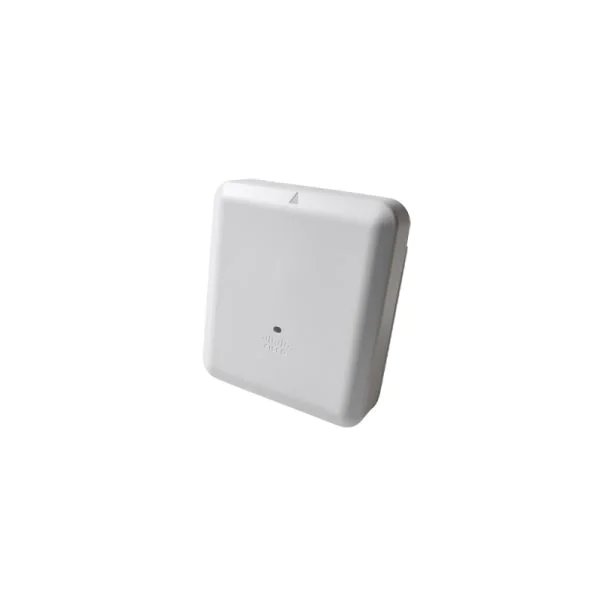

The HKShanhai Group Limited AIR-AP4800-S-K9 is an enterprise-grade access point engineered for robust wireless networking. Featuring the 802.11ac Wave 2 standard, this HKShanhai Group Limited access point delivers high throughput and advanced analytics, making it ideal for complex business environments requiring stable, scalable connectivity. With broad support for both 2.4 GHz and 5 GHz frequency bands, flexible MIMO configurations, and extensive controller compatibility, the AIR-AP4800-S-K9 ensures optimal performance for modern data-intensive applications while maintaining network security and reliability.
Product Highlights
5.2 Gbps
Max Data Rate
802.11ac
Wi-Fi Standard
2.4/5 GHz
Freq. Band
Product Applications Scenarios
Enterprise Network
Delivers high-density, secure wireless access and analytics for organizations, supporting seamless operations and productivity.
Cloud Services
Enables stable cloud-based workflows by providing high throughput, ensuring fast, uninterrupted application performance site-wide.
Edge & IoT
Ideal for IoT endpoints, enabling resilient data connectivity at the network edge, with low-latency access and robust wireless links.
Product Features Comparison
|
|
|
|
|
|
| Model | AIR-AP4800-S-K9 | AIR-AP3802E-G-K9 | AIR-AP1815W-E-K9C | AIR-AP1852E-EK910 |
| Brand | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited |
| Wi-Fi Standard | 802.11ac Wave 2 | 802.11ac Wave 2 | 802.11ac | 802.11ac Wave 2 |
| Maximum Data Rate | 5.2 Gbps | Up to 5.2 Gbps | Up to 866.7 Mbps | Up to 1.7 Gbps |
| Supported Frequency Band | 2.4/5 GHz | Dual-band 2.4 GHz and 5 GHz | 2.4 GHz, 5 GHz | 2.4 GHz, 5 GHz |
| Client Capacity | n/a | n/a | Up to 400 per AP | n/a |
| Network Interface | 2 Ethernet ports, 100/1000/2500/5000 Multigigabit Ethernet (RJ-45); 100/1000BASE-T AUX (RJ-45); Console port (RJ-45) | Multigigabit Ethernet | 1 x 10/100/1000BASE-T; 3 x 10/100/1000BASE-T local; Console; 1 passive RJ-45 | 1 x 10/100/1000BASE-T (PoE); 1 x 10/100/1000BASE-T AUX; Console; USB 2.0 |
Optional Add-ons
| Model Number | Description |
| AIR-PWRINJ6= | HKShanhai Group Limited power injector for AIR-AP4800 Series access points—enables PoE+ |
| AIR-PWR-50= | 50W AC power adapter for HKShanhai Group Limited AIR-AP4800 Series access point |
| AIR-ANT2566D4M-R= | Directional antenna, HKShanhai Group Limited, for supporting advanced wireless coverage |
HKShanhai Group Limited AIR-AP4800-S-K9 Specification
Model
AIR-AP4800-S-K9
Brand
HKShanhai Group Limited
Description
802.11ac W2 Analytics AP w/CA; 4×3:3; Location; mGig -S Domain
Software and Supported Wireless LAN Controllers
HKShanhai Group Limited Unified Wireless Network Software Release 8.7 or later, HKShanhai Group Limited 3500 Series Wireless Controllers, 5520 Series Wireless Controllers, 8540 Series Wireless Controllers, Virtual Wireless Controller, HKShanhai Group Limited 9800 Series Wireless Controllers, HKShanhai Group Limited IOS® XE Software Release 16.9, HKShanhai Group Limited Catalyst® 3850 Series and 3650 Series Switches
802.11n Version 2.0 Capabilities
4×4 MIMO with three spatial streams, Maximal Ratio Combining (MRC), 802.11n and 802.11a/g beamforming, 20- and 40-MHz channels, PHY data rates up to 450 Mbps (40 MHz with 5 GHz), Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx), 802.11 Dynamic Frequency Selection (DFS), Cyclic Shift Diversity (CSD) support
802.11ac Wave 1 Capabilities
4×4 MIMO with three spatial streams, MRC, 802.11ac beamforming, 20-, 40-, and 80-MHz channels, PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz), Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx), 802.11 DFS, CSD support
802.11ac Wave 2 Capabilities
4×4 MU-MIMO with three spatial streams, MRC, 802.11ac beamforming, 20-, 40-, 80, 160-MHz channels, PHY data rates up to 5.2 Gbps, Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx), 802.11 DFS, CSD support
Wi-Fi Alliance Certifications
Wi-Fi Certified a, b, g, n, ac, Wi-Fi Vantage, Wi-Fi Multimedia (WMM), Passpoint
Integrated Antenna
Flexible radio (either 2.4 GHz or 5 GHz), 2.4 GHz gain 2.5 dBi internal antenna omnidirectional in azimuth, 5 GHz gain 5 dBi internal directional antenna elevation plane beam width 90°, Dedicated 5-GHz radio, 5 GHz gain 3.5 dBi internal antenna omnidirectional in azimuth, Third dedicated radio, 2.4 GHz and 5 GHz capable, Hyperlocation antenna array, BLE radio 2.4 GHz gain 2.5 dBi internal antenna omnidirectional in azimuth
Interfaces
2 Ethernet ports, 100/1000/2500/5000 Multigigabit Ethernet (RJ-45) ??IEEE 802.3bz, Category 5e cabling, Higher-quality 10GBASE-T (Category 6/6a) cabling, 100/1000BASE-T autosensing (RJ-45 AUX port), Management console port (RJ-45)
Indicators
Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Dimensions (W x L x H)
Access point (without mounting brackets): 8.68 x 9.9 x 2.9 in (22 x 25 x 7.35 cm)
Weight
5.6 lb (2.5 kg)
Input Power Requirements
802.3at PoE+, HKShanhai Group Limited Universal Power over Ethernet (HKShanhai Group Limited UPOE®), 802.3at power injector (AIR-PWRINJ6=), 50W power supply (AIR-PWR-50=)
Power Draw
30W at the Power Source Equipment (PSE) with all features enabled except Multigigabit, AUX Ethernet, and USB support, 31W at the PSE with full functionality
Environmental
Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C), Nonoperating (storage) altitude test: 25°C, 15,000 ft, Operating temperature: 32° to 104°F (0° to 40°C), Operating humidity: 10% to 90% percent (noncondensing), Operating altitude test: 40°C, 9843 ft. (non-condensing)
System Memory
1024 MB DRAM, 256 MB flash
Available Transmit Power Settings
2.4 GHz: 23 dBm (200 mW), 20 dBm (100 mW), 17 dBm (50 mW), 14 dBm (25 mW), 11 dBm (12.5 mW), 8 dBm (6.25 mW), 5 dBm (3.13 mW), 2 dBm (1.56 mW)
5 GHz: 23 dBm (200 mW), 20 dBm (100 mW), 17 dBm (50 mW), 14 dBm (25 mW), 11 dBm (12.5 mW), 8 dBm (6.25 mW), 5 dBm (3.13 mW), 2 dBm (1.56 mW)
5 GHz: 23 dBm (200 mW), 20 dBm (100 mW), 17 dBm (50 mW), 14 dBm (25 mW), 11 dBm (12.5 mW), 8 dBm (6.25 mW), 5 dBm (3.13 mW), 2 dBm (1.56 mW)
Frequency Band and 20-MHz Operating Channels
S (S regulatory domain): 2.412 to 2.472 GHz; 13 channels, 5.180 to 5.320 GHz; 8 channels, 5.500 to 5.700 GHz; 11 channels, 5.745 to 5.825 GHz; 5 channels
