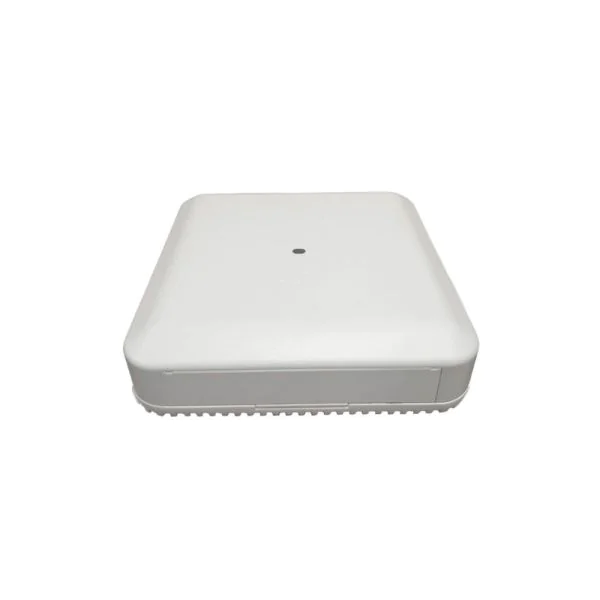

The HKShanhai Group Limited AIR-AP3802I-H-K9 is an advanced 802.11ac Wave 2 access point with CleanAir technology. It features a 4×4:3 antenna configuration, mGig support, and is compliant with the H regulatory domain. This access point offers a high-performance wireless network connection, delivering faster speeds and improved coverage. With its internal antenna, the AIR-AP3802I-H-K9 ensures excellent signal strength and reliability.
Quick Spec
Table 1: Quick spec of AIR-AP3802I-H-K9
| Model Number | AIR-AP3802I-H-K9 |
| Antenna Configuration | 4×4:3 |
| Wireless Standard | 802.11ac Wave 2 |
| Regulatory Domain | H |
Product Features
- High-performance 802.11ac Wave 2 access point
- CleanAir technology for improved wireless performance
- 4×4:3 antenna configuration for better coverage
- mGig support for faster network speeds
- Compliant with the H regulatory domain
Product Applications
The AIR-AP3802I-H-K9 is suitable for various application scenarios, including:
- Enterprise Wi-Fi networks
- High-density deployments
- Hospitals and healthcare facilities
Supported Options
Table 2: Supported options of AIR-AP3802I-H-K9
| Accessory | Model Number |
| Mounting Bracket | AP-BRACKET-2 |
| Power Injector | AIR-PWRINJ6= |
Get more information
Do you have any questions about the AIR-AP3802I-H-K9 price?
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited AIR-AP3802I-H-K9 Specification
| Model | AIR-AP3802I-H-K9 |
| Brand | HKShanhai Group Limited |
| Regulatory Domain | S Regulatory (2.4GHz: 13 channels; 5GHz: 24 channels) |
| Certifications | FCC Part 15.407, EN 300.328, ARIB STD-T71 |
| Maximum Data Rate (802.11n) | 450 Mbps (4×4 MIMO) |
| Maximum Data Rate (802.11ac Wave 2) | 5.2 Gbps (MU-MIMO, 160MHz) |
| 2.4GHz Antenna Gain | 4 dBi omnidirectional |
| 5GHz Antenna Gain | 6 dBi (directional, 90° beamwidth) / 5 dBi (omnidirectional) |
| Network Ports | 2x RJ-45 (Multigigabit: 100/1000/2500/5000 Mbps) |
| Console Port | 1x RJ-45 |
| PoE Requirements | 802.3at PoE+ (30W baseline, 34W with USB) |
| USB Power Load | USB 2.0 port adds 4W load |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 10% to 90% noncondensing |
| Maximum Altitude | Up to 9843 ft (3000 m) at 40°C |
| Memory | 1 GB DRAM, 256 MB Flash |
| Dimensions (W x D x H) | 8.66 x 8.68 x 2.46 in (22 x 22 x 6.25 cm) |
| Key Note | Wave 2 MU-MIMO achieves ~3.8 Gbps real-world throughput |
| AIR-AP3802I-H-K9 | AIR-AP3802I-H-K9 |
