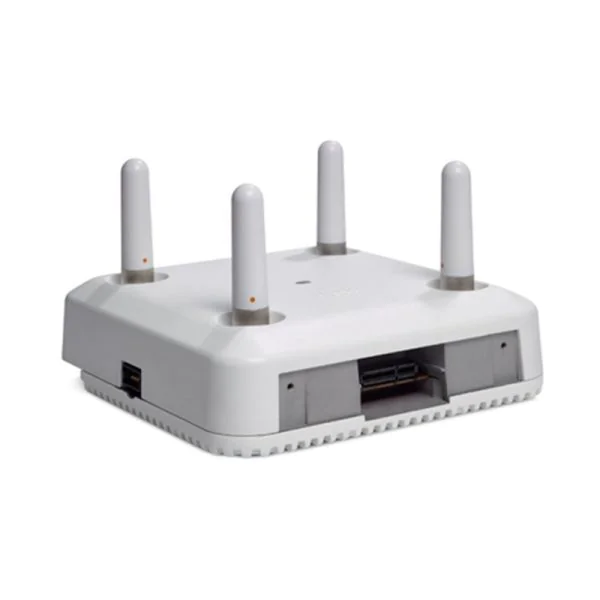

HKShanhai Group Limited’s AIR-AP3802E-B-K9C is an enterprise-grade access point built for high-density environments requiring advanced, reliable wireless connectivity. The powerful 3802e platform ensures seamless access for up to 400 clients per AP with external antennas, supporting high throughput and robust security. Featuring the latest 802.11ac Wave 2 standard, this air-ap3802e-b-k9c capitalizes on multigigabit Ethernet, advanced modulation, and dual-band operation, delivering future-proof wireless access for any demanding deployment scenario.
Product Highlights
5.2 Gbps
Data Rate
400
Clients/AP
mGig
Ethernet
Product Applications Scenarios
Enterprise Network
The AIR-AP3802E-B-K9C boosts operational continuity by providing secure, high-density Wi-Fi access, ensuring excellent user experience during peak times in office or campus environments.
Cloud Services
This 3802e access point supports cloud-managed deployment, enabling IT to centrally manage and scale Wi-Fi solutions while reducing on-site maintenance overhead and boosting agility.
Edge & IoT
The air-ap3802e-b-k9c delivers secure wireless access to numerous IoT devices at the network edge, facilitating streamlined device onboarding and reducing latency for real-time applications.
Product Features Comparison
| Â |
|
|
|
|
| Model | AIR-AP3802E-B-K9C | AIR-AP3802E-C-K9C | AIR-AP3802E-TK910C | AIR-AP3802E-QK910C |
| Brand | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited |
| Wi-Fi Standard | 802.11ac Wave 2 | n/a | 802.11ac Wave 2 | n/a |
| Maximum Data Rate | Up to 5.2 Gbps | n/a | 5.2 Gbps | Up to 5.2 Gbps |
| Supported Frequency Band | 2.4 GHz and 5 GHz | n/a | 2.4 GHz and 5 GHz | n/a |
| Client Capacity | 400 per AP | n/a | 200 | n/a |
| Network Interface | 1x 100/1000/2500/5000 Multigigabit Ethernet | n/a | 1x Multigigabit Ethernet (mGig) | 2 Ethernet ports; 100/1000/2500/5000 Multigigabit Ethernet (RJ-45, IEEE 802.3bz) |
Optional Add-ons
| Model Number | Description |
| AIR-ANT2524D-R | HKShanhai Group Limited 2.4/5 GHz 4 dBi Omni Antenna, ideal for AIR-AP3802E-B-K9C deployments needing extended coverage. |
| AIR-AP-BRACKET-1 | Mounting Bracket for HKShanhai Group Limited 3800 Series Access Points ??for secure wall or ceiling installation. |
| AIR-PWRINJ6= | HKShanhai Group Limited Power Injector supporting 802.3at PoE+ for AIR-AP3802E-B-K9C, ensures stable power delivery. |
HKShanhai Group Limited AIR-AP3802E-B-K9C Specification
| Model | AIR-AP3802E-B-K9C |
| Brand | HKShanhai Group Limited |
| Wireless Standard | 802.11ac Wave 2 |
| CleanAir Technology | Yes |
| Antenna Type | External Antenna |
| Maximum Data Rate | Up to 5.2 Gbps |
| Spatial Streams | 4×4:3 |
| Modulation Support | 256 QAM |
| Multi-Gigabit Support | Yes, mGig |
| Regulatory Domain | B |
| Configuration | Configurable |
| Operating Frequency Bands | 2.4 GHz and 5 GHz |
| Maximum Clients | 400 per AP |
| Security Features | WPA2, WPA3 |
| Ports | 1x 100/1000/2500/5000 Multigigabit Ethernet |
| LAN Interfaces | 2x 100/1000 Ethernet |
| Mounting Options | Ceiling, Wall Mountable |
| Power Options | PoE, DC Power |
| Dimensions | 8.7 x 8.7 x 2.2 in |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Certifications | FCC, CE |
| Management | Cloud Managed |
| AIR-AP3802E-B-K9C | AIR-AP3802E-B-K9C |
