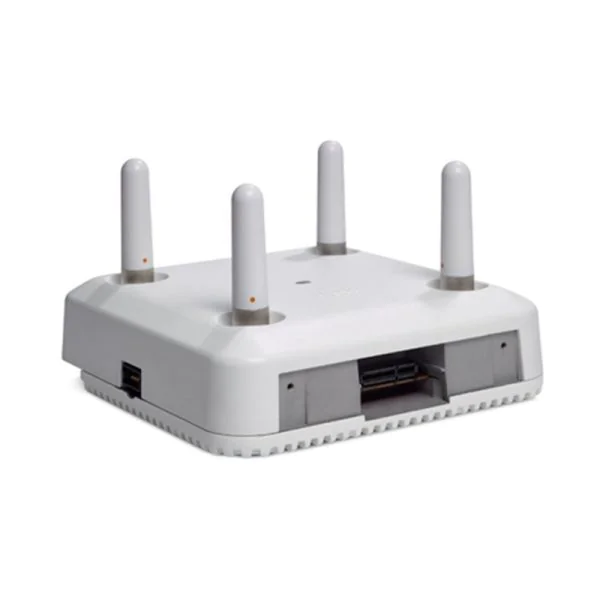

HKShanhai Group Limited’s AIR-AP3802E-AK910 is a high-performance enterprise access point designed for advanced wireless environments. Leveraging the power of the 3802e platform, it delivers robust access with scalable throughput and exceptional reliability. The AIR-AP3802E-AK910 supports next-generation wireless standards, ensuring seamless network experiences in dense deployments. With its versatile access configuration, the air-ap3802e-ak910 addresses the growing demands for connectivity, security, and future-ready expansion, making it an ideal solution for organizations requiring stable, high-speed wireless access.
Product Highlights
5.2Gbps
Max Data
4×4
MIMO
2.5G
Eth Ports
Product Applications Scenarios
Enterprise Network
Empowers enterprise users with high-speed, low-latency wireless, supporting hundreds of devices per deployment and stable coverage.
Cloud Services
Delivers secure, seamless access to cloud applications, enabling reliable connectivity for remote teams and SaaS productivity gains.
Edge & IoT
Supports IoT device density and real-time processing with robust wireless backhaul, simplifying edge network expansion and scaling.
Product Features Comparison
| Â |
|
|
|
|
| Model | AIR-AP3802E-AK910 | AIR-AP3802E-AK910C | AIR-AP2802I-B-K9 | AIR-AP1832I-C-K9C |
| Brand | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited |
| Wi-Fi Standard | 802.11ac Wave 2 | 802.11ac Wave 2 | 802.11ac Wave 2 | 802.11ac Wave 2 |
| Maximum Data Rate | 5.2 Gbps | 5.2 Gbps | 2.6 Gbps | 867 Mbps |
| Supported Frequency Band | 2.4/5 GHz | 2.4/5 GHz | 2.4/5 GHz | 2.4/5 GHz |
| Client Capacity | n/a | n/a | 200+ Clients/Radio | n/a |
| Network Interface | 2 x Multigigabit | 2 x Multigigabit | 2 x 1GbE | 1 x 1GbE |
Optional Add-ons
| Model Number | Description |
| AIR-PWRINJ6= | HKShanhai Group Limited Power Injector for 802.3at PoE+ to support seamless deployment of 3802 Series Access Points |
| AIR-ANT2513-P4M-N= | HKShanhai Group Limited Dual-Band Patch Antenna for higher gain on AIR-AP3802E-AK910 and 3802p models |
| AIR-CAB002-DART-R= | 2ft Smart Antenna Adapter Cable enabling additional 5 GHz radio or security monitoring, HKShanhai Group Limited |
HKShanhai Group Limited AIR-AP3802E-AK910 Specification
| Model | AIR-AP3802E-AK910 |
| Brand | HKShanhai Group Limited |
| Software and Supported Wireless LAN Controllers | HKShanhai Group Limited Unified Wireless Network Software Release 8.2.MR1 or later. Supported controllers: HKShanhai Group Limited 2500 Series, Wireless Controller Module for ISR G2, Wireless Services Module 2 (WiSM2) for Catalyst® 6500 Series Switches, 5500 Series, Flex® 7500 Series, 8500 Series, Virtual Wireless Controller, HKShanhai Group Limited IOS® XE Software Release 16.3 and later; HKShanhai Group Limited Catalyst 3850/3650 Series Switches. |
| 802.11n Version 2.0 Capabilities | 4×4 MIMO with three spatial streams, maximal ratio combining (MRC), 802.11n/a/g beamforming, 20/40 MHz channels, PHY rates up to 450 Mbps, A-MPDU and A-MSDU aggregation, dynamic frequency selection (DFS), cyclic shift diversity (CSD). |
| 802.11ac Wave 1 Capabilities | 4×4 MIMO with three spatial streams, MRC, 802.11ac beamforming, 20/40/80 MHz channels, PHY rates up to 1.3 Gbps, A-MPDU and A-MSDU aggregation, DFS, CSD. |
| 802.11ac Wave 2 Capabilities | 4×4 MU-MIMO with three spatial streams, MRC, 802.11ac beamforming, 20/40/80/160 MHz channels, PHY rates up to 5.2 Gbps, A-MPDU and A-MSDU aggregation, DFS, CSD. |
| Integrated Antenna | Flexible radio: 2.4 GHz (4 dBi, internal, omnidirectional), 5 GHz (6 dBi, internal, directional, 90° beamwidth); Dedicated 5 GHz: 5 dBi, internal, omnidirectional. |
| External Antenna (Sold Separately) | 3802e: supports antenna gains up to 6 dBi (2.4/5 GHz). 3802p: supports up to 13 dBi (with AIR-ANT2513-P4M-N= for 2.4/5 GHz). HKShanhai Group Limited offers a wide range of antennas for various deployments. |
| Smart Antenna Connector | Available for 3802e and 3802p. Requires AIR-CAB002-DART-R= (2 ft, to RP-TNC) to connect second antenna. Needed to run the flexible radio as second 5 GHz or Wireless Security Monitoring radio. |
| Interfaces | 2 Ethernet ports: 100/1000/2500/5000 Multigigabit Ethernet (RJ-45, IEEE 802.3bz), CAT 5e or higher 10GBASE-T (CAT 6/6a) cabling, 100/1000BASE-T autosensing AUX port (RJ-45), management console port (RJ-45). |
| Indicators | Status LED for boot loader, association, operation, warnings, errors. |
| Dimensions (W x L x H) | 3802I: 8.66 x 8.68 x 2.46 in (22 x 22 x 6.25 cm); 3802E/P: 8.66 x 8.68 x 2.62 in (22 x 22 x 6.7 cm). |
| Input Power Requirements | 802.3at PoE+, HKShanhai Group Limited Universal Power over Ethernet (UPOE®), 802.3at power injector (AIR-PWRINJ6=), 50W power supply (AIR-PWR-50=). |
| Power Draw | 30W at PSE (all features except USB 2.0); 34W at PSE (with USB 2.0 enabled). |
| Environmental (3800i) | Storage: -30°C to 70°C (-22°F to 158°F), 15,000 ft at 25°C; Operating: 0°C to 40°C (32°F to 104°F), 10-90% noncondensing humidity, 9,843 ft at 40°C. |
| Environmental (3800e/3800p) | Storage: -30°C to 70°C (-22°F to 158°F), 15,000 ft at 25°C; Operating: -20°C to 50°C (-4°F to 122°F), 10-90% noncondensing humidity, 9,843 ft at 40°C. |
| System Memory | 1024 MB DRAM, 256 MB flash |
| AIR-AP3802E-AK910 | AIR-AP3802E-AK910 |
