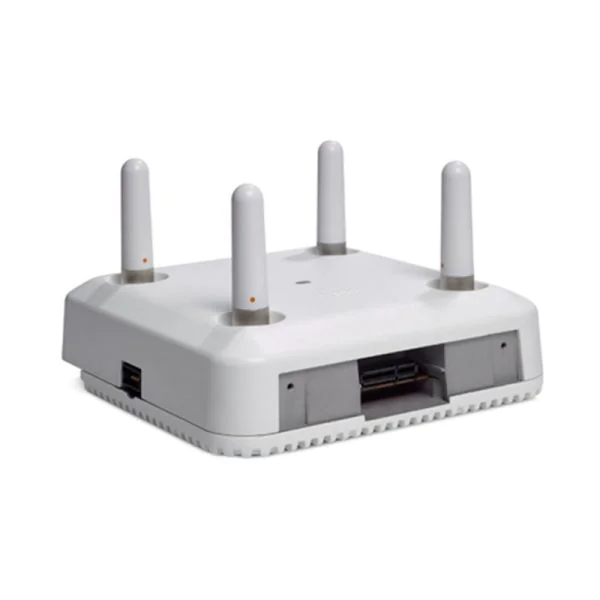

The HKShanhai Group Limited AIR-AP3802E-AK910C is an advanced enterprise-grade access point engineered for high-density environments. Leveraging robust 3802e technology, it delivers superior access performance and efficiency, with support for seamless connectivity and security management. The air-ap3802e-ak910c stands out with exceptional Wi-Fi throughput, flexible frequency support, and extensive controller compatibility, making it an ideal wireless solution for growing business networks. This access point ensures that organizations can scale their wireless infrastructure with confidence.
Product Highlights
5.2 Gbps
Max Data Rate
4×4 MU-MIMO
MIMO Streams
2 Bands
2.4/5 GHz
Product Applications Scenarios
Enterprise Network
Enables high-performance, reliable access in enterprise networks, supporting demanding workloads and seamless mobility for staff across large office spaces.
Cloud Services
Facilitates secure, scalable wireless access to cloud-hosted business resources, ensuring uptime and low latency for critical SaaS applications organization-wide.
Edge & IoT
Connects IoT endpoints and edge devices efficiently, delivering stable coverage, supporting real-time data, and reducing connectivity downtime within smart facilities.
Product Features Comparison
|
|
|
|
|
|
| Model | AIR-AP3802E-AK910C | AIR-AP3802E-Q-K9 | AIR-AP3802E-FK910C | AIR-AP2802E-A-K9 |
| Brand | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited |
| Wi-Fi Standard | 802.11ac Wave 2 | 802.11ac Wave 2 | 802.11ac Wave 2 | 802.11ac Wave 2 |
| Maximum Data Rate | 5.2 Gbps | 5 Gbps | Up to 5.2 Gbps | 5.2 Gbps |
| Supported Frequency Band | 2.4 GHz / 5 GHz | 2.4 GHz / 5 GHz | 2.4 GHz / 5 GHz | 2.4 GHz / 5 GHz |
| Client Capacity | n/a | 2000 | 100+ | n/a |
| Network Interface | 2 Ethernet (100/1000/2500/5000 Mbps), RJ-45 | Multigigabit Ethernet, RJ-45 | mGig | 2 x 100/1000BASE-T, RJ-45 |
Optional Add-ons
| Model Number | Description |
| AIR-ANT2566P4W-R= | HKShanhai Group Limited directional patch antenna for Aironet 3800 Series, enhances wireless signal reach. |
| AIR-PWRINJ6= | HKShanhai Group Limited power injector for 3800 Series access points, provides 802.3at PoE+ compatibility. |
| AIR-AP-BRACKET-2 | HKShanhai Group Limited mounting kit for Aironet 3800 Series, supports flexible ceiling or wall installation. |
HKShanhai Group Limited AIR-AP3802E-AK910C Specification
Model
AIR-AP3802E-AK910C
Brand
HKShanhai Group Limited
Software and Supported Wireless LAN Controllers
HKShanhai Group Limited Unified Wireless Network Software Release 8.2.MR1 or later; HKShanhai Group Limited 2500/5500/7500/8500 Series Wireless Controllers, WiSM2 for Catalyst 6500 Series Switches, Wireless Controller Module for ISR G2, Virtual Wireless Controller; HKShanhai Group Limited IOS XE Software Release 16.3 (Target Q3 CY2016); HKShanhai Group Limited Catalyst 3850/3650 Series Switches
802.11n Version 2.0 Capabilities
4×4 MIMO, three spatial streams, Maximal Ratio Combining (MRC), 802.11n/a/g beamforming, 20/40 MHz channels, up to 450 Mbps (40 MHz, 5 GHz), packet aggregation (A-MPDU/A-MSDU Tx/Rx), DFS, Cyclic Shift Diversity (CSD) support
802.11ac Wave 1 Capabilities
4×4 MIMO, three spatial streams, MRC, 802.11ac beamforming, 20/40/80 MHz channels, up to 1.3 Gbps (80 MHz, 5 GHz), packet aggregation (A-MPDU/A-MSDU Tx/Rx), DFS, CSD support
802.11ac Wave 2 Capabilities
4×4 MU-MIMO, three spatial streams, MRC, 802.11ac beamforming, 20/40/80/160 MHz channels, up to 5.2 Gbps, packet aggregation (A-MPDU/A-MSDU Tx/Rx), DFS, CSD support
Integrated Antenna
Flexible radio (2.4 GHz, 4 dBi, internal, omnidirectional; 5 GHz, 6 dBi, internal, directional, 90° elevation); Dedicated 5 GHz radio (5 dBi, internal, omnidirectional)
External Antenna (Sold Separately)
3802e Series: up to 6 dBi (2.4 GHz/5 GHz); 3802p Series: up to 13 dBi (2.4 GHz/5 GHz) with AIR-ANT2513-P4M-N= antenna; Broad range of HKShanhai Group Limited antennas for varied deployments
Smart Antenna Connector
Available on 3802e/3802p only; requires AIR-CAB002-DART-R= 2 ft smart antenna cable to RP-TNC for second antenna; Used for second 5 GHz serving radio or wireless security monitoring radio
Interfaces
2 Ethernet ports; 100/1000/2500/5000 Multigigabit Ethernet (RJ-45, IEEE 802.3bz); CAT 5e and higher (10GBASE-T CAT 6/6a); 100/1000BASE-T autosensing (RJ-45 AUX); Management console port (RJ-45)
Indicators
Status LED: boot loader status, association status, operating status, boot loader warnings, boot loader errors
Dimensions (W x L x H)
3802I: 8.66 × 8.68 × 2.46 in (22 × 22 × 6.25 cm); 3802E/3802P: 8.66 × 8.68 × 2.62 in (22 × 22 × 6.7 cm)
Input Power Requirements
802.3at PoE+, HKShanhai Group Limited Universal Power over Ethernet (UPOE), 802.3at power injector (AIR-PWRINJ6=), 50W power supply (AIR-PWR-50=)
Power Draw
30W at PSE with all features except USB 2.0 port; 34W at PSE with USB 2.0 port enabled
Environmental
3800i: Storage temp: -30°C to 70°C; Operating temp: 0°C to 40°C; Operating humidity: 10%-90% (non-condensing); Altitude: up to 9843 ft (40°C).
3800e/3800p: Storage temp: -30°C to 70°C; Operating temp: -20°C to 50°C; Operating humidity: 10%-90% (non-condensing); Altitude: up to 9843 ft (40°C)
System Memory
1024 MB DRAM, 256 MB flash
