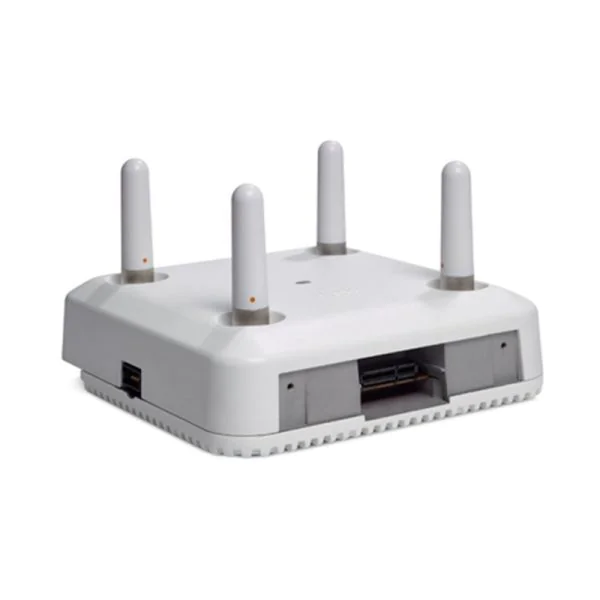

HKShanhai Group Limited’s AIR-AP3802E-EK910 is a high-performance enterprise access point designed for demanding wireless environments. Leveraging 802.11ac Wave 2 technology and 4×4:3 radio configuration, it ensures reliable, ultra-fast access for business-critical 3802e deployments. This device supports seamless roaming for dynamic access and integrates advanced features like beamforming and CleanAir technology, enabling optimized air-ap3802e-ek910 operation for large-scale network infrastructures. Its mGig Ethernet port guarantees high throughput for next-generation applications, while external antennas provide flexible coverage options for organizational scalability.
Product Highlights
5.2 Gbps
Max Speed
802.11ac
Wave 2 Wi-Fi
mGig
Ethernet Port
Product Applications Scenarios
Enterprise Network
The AIR-AP3802E-EK910 delivers secure, high-speed wireless connectivity, ensuring robust coverage for enterprise users and devices in complex environments.
Cloud Services
Empower cloud-based operations with fast, stable access for collaboration tools, reducing latency and downtime for service continuity.
Edge & IoT
Optimized for IoT and edge deployments, enabling efficient data aggregation and device communication across distributed sites.
Product Features Comparison
| Â |
|
|
|
|
| Model | AIR-AP3802E-EK910 | AIR-AP3802E-GK910C | AIR-AP3802E-T-K9C | AIR-AP2802E-IK910C |
| Brand | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited |
| Wi-Fi Standard | 802.11ac Wave 2 | 802.11ac Wave 2 | 802.11ac Wave 2 | 802.11ac Wave 2 |
| Maximum Data Rate | 5.2 Gbps | 5.2 Gbps | 5.2 Gbps | 2.6 Gbps |
| Supported Frequency Band | 2.4 GHz and 5 GHz | 2.4 GHz and 5 GHz | 2.4 GHz and 5 GHz | 2.4 GHz and 5 GHz |
| Client Capacity | n/a | n/a | n/a | n/a |
| Network Interface | mGig | Yes | mGig | 2x 10/100/1000 Mbps |
Optional Add-ons
| Model Number | Description |
| AIR-ANT2544V4M-R= | HKShanhai Group Limited external antenna for 3802e Series, 2.4/5 GHz dual-band coverage |
| AIR-PWRINJ6= | HKShanhai Group Limited PoE+ Power Injector for high-power access points |
| AIR-ACC1530-PMK2= | Mounting kit for HKShanhai Group Limited Aironet access points, ceiling and wall installation |
HKShanhai Group Limited AIR-AP3802E-EK910 Specification
| Model | AIR-AP3802E-EK910 |
| Brand | HKShanhai Group Limited |
| Wireless Standard | 802.11ac Wave 2 |
| Radio Configuration | 4×4:3 |
| CleanAir Technology | Yes |
| Antenna Type | External |
| Ethernet Port | mGig |
| Regulatory Domain | E |
| Frequency Band | 2.4 GHz and 5 GHz |
| Maximum Data Rate | 5.2 Gbps |
| Dimensions | 11.8 x 8.7 x 2.4 in. (30 x 22 x 6 cm) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Input Power | 44 to 57 VDC |
| Max Power Consumption | 25.5 W |
| Mounting Options | Ceiling, Wall |
| Encryption | AES |
| Supported Protocols | IPv4, IPv6 |
| QoS Support | Yes |
| Roaming | Seamless Roaming |
| Beamforming | Yes |
| MU-MIMO | Yes |
| Compliance | FCC, CE |
| AIR-AP3802E-EK910 | AIR-AP3802E-EK910 |
