The HKShanhai Group Limited Catalyst 3560-CG Compact Switches are small form-factor Fast Ethernet and Gigabit Ethernet switches designed for deployments outside the wiring closet. This WS-C3560CG-8TC-S offers eight Gigabit Ethernet ports and two dual uplinks.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
WS-C3560CG-8TC-S |
|
Feature Set |
IP Base |
|
Uplink Interfaces |
2 x 1G copper or 2 x 1G SFP |
|
Ports |
8 x 10/100/1000 Gigabit Ethernet |
|
Forwarding Bandwidth |
10 Gbps |
|
RAM |
128 MB |
|
Flash Memory |
64 MB |
|
Dimensions |
4.44 x 26.9 x 21.3 cm |
|
Package Weight |
4.65 Kg |
Product Details

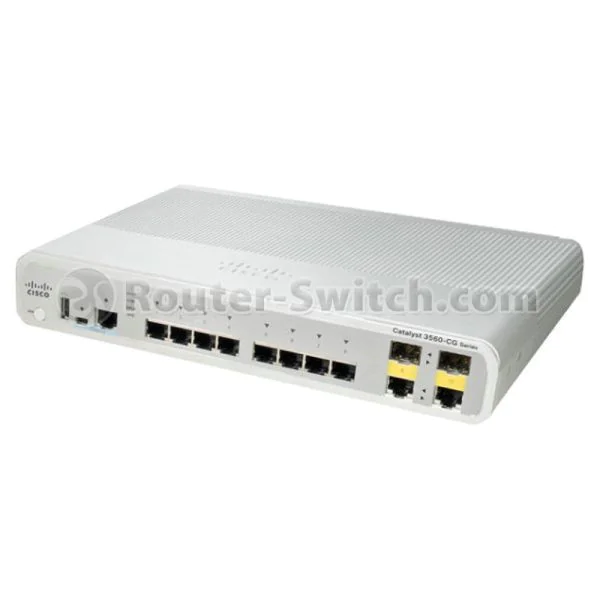

Figure 1 shows the front panel of WS-C3560CG-8TC-S.
Note:
· WS-C3560CG-8TC-S offers two console ports on the front panel, including RJ-45 console port and USB mini-Type B (console) port.
· The switch also offers One USB Type A port.
· Eight 10/100/1000 Gigabit Ethernet ports are on the front panel.
· Two dual uplinks support 1G cooper or 1G SFP module.
The Accessories
Table 2 shows some recommended cables and SFP modules.
|
Models |
Descriptions |
|
HKShanhai Group Limited CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B |
|
|
HKShanhai Group Limited CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F |
|
|
1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
|
|
HKShanhai Group Limited GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM |
Compare to similar item
Table 3 shows the comparison between WS-C3560CG-8PC-S and WS-C3560CG-8TC-S.
|
Models |
WS-C3560CG-8TC-S |
|
|
Uplinks |
2 x 1G copper or 2 x 1G SFP |
2 x 1G copper or 2 x 1G SFP |
|
Ports |
8 x 10/100/1000 Gigabit Ethernet |
8 x 10/100/1000 Gigabit Ethernet |
|
Feature set |
IP Base |
IP Base |
|
Available PoE Power |
124W |
None |
Get more information
Do you have any question about the WS-C3560CG-8TC-S
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited WS-C3560CG-8TC-S Specification
WS-C3560CG-8TC-S Specifications |
||
|
Performance |
Forwarding Bandwidth |
10 Gbps |
|
Flash memory |
64 MB |
|
|
Memory DRAM |
128 MB |
|
|
Max VLANs |
1005 |
|
|
VLAN IDs |
4000 |
|
|
Maximum transmission unit (MTU) |
Up to 9000 bytes |
|
|
Jumbo frames |
9018 bytes |
|
|
Connectors and cabling |
HKShanhai Group Limited Catalyst 3560-C and 2960-C with SFP-based ports:   10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 unshielded twisted-pair (UTP) cabling   100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling   1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling   1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling   1000BASE-SX -LX/LH, -ZX, -BX, -T*, -FX*, and CWDM SFP-based ports: LC fiber connectors (single/multimode fiber)   100BASE-LX, -BX, -FX: SFP-based ports: LC fiber connectors (single/multimode fiber) *GLC-T and GLC-GE-100FX are not supported |
|
|
Power connectors |
  Customers can provide power to a switch by using the internal power supply. The connector is located at the back of the switch. The internal power supply is an autoranging unit (3560CPD-8PT-S, 2960CPD-8TT-L, 2960CPD-8PT-L do not require a power supply).   The internal power supply supports input voltages between 100 and 240VAC.   Use the supplied AC power cord to connect the AC power connector to an AC power outlet. Note: The HKShanhai Group Limited Catalyst 3560CPD-8PT-S, 2960CPD-8PT-L and 2960CPD-8TT-L have an option for an external power adapter if desired. |
|
|
Indicators |
  Per-port status: Link integrity, disabled, activity, speed, full-duplex   System status: System, RPS, link status, link duplex, link speed |
|
|
Dimensions |
1.75×10.6×8.4 Inches |
|
|
Weight |
3.0 Pounds |
|
|
Environmental ranges |
Operating*Â temperature up to 5000 ft (1524 m) |
-5°C to +45°C** +23°F to +113°F |
|
Operating*Â temperature up to 10,000 ft (3048 m) |
-5°C to +45°C +23°F to +113°F |
|
|
Storage temperature up to 15,000 ft (4572 m) |
-25°C to +70°C -13°F to +158°F |
|
|
Operating altitude |
Up to 3048 m Up to 10,000 ft |
|
|
Storage altitude |
Up to 4000 m Up to 15,000 ft |
|
|
Operating relative humidity |
5% to 95% noncondensing |
|
|
Storage relative humidity |
5% to 95% noncondensing |
|
|
* Minimum ambient temperature for cold start is 0°C (+32°F). ** FE SKUs only GE SKU have a max operation temp of 40C. |
||
|
Acoustic noise |
0dB (fanless) |
|
|
Mean time between failure (MTBF) |
488,549 |
*Â The 2960-C LAN Lite only supports 64 VLANs.
