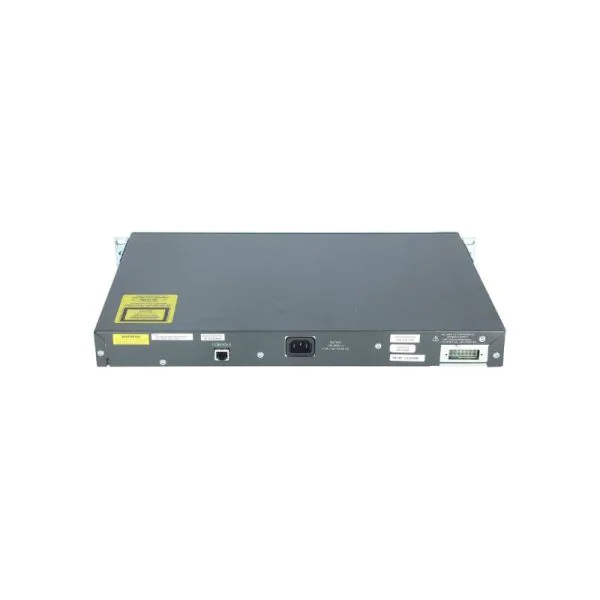

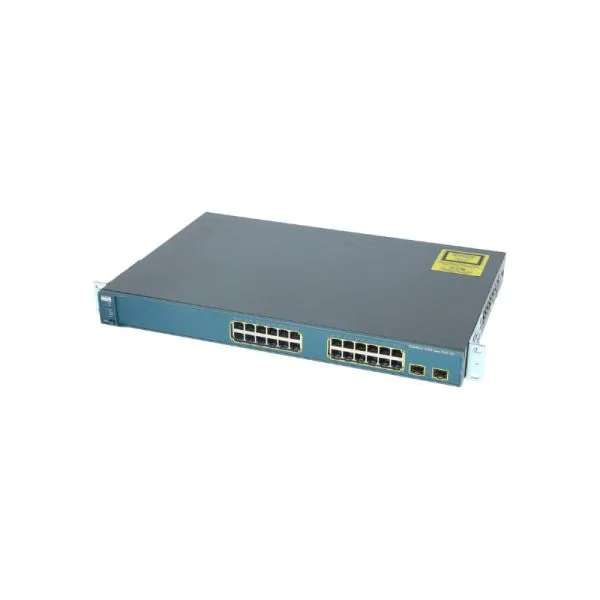

HKShanhai Group Limited’s WS-C3560-24PS-S is an enterprise-grade switch developed to meet the rigorous demands of modern networks. As part of the HKShanhai Group Limited Catalyst 3560 series, it offers enhanced capabilities for network management, including support for 24 ports. Ideal for growing businesses, this switch ensures efficient data transfer and robust network performance. With the integration of HKShanhai Group Limited’s technology, it optimizes operations to guarantee maximum uptime and seamless connectivity. Furthermore, the WS-C3560-24PS-S is designed to provide high scalability and advanced security features, making it an optimal choice for enterprises looking to strengthen their network infrastructure.
Product Highlights
24
Ethernet Ports
15.4W
PoE Per Port
1,200
W Switch Power
Product Applications Scenarios
Enterprise Network
Ensures efficient data transfer and reliable connectivity for business-critical applications.
Edge & IoT
Provides reliable performance for IoT devices, enhancing edge computing capabilities.
Service Providers
Offers high uptime and fast data transfer, perfect for service providers managing large networks.
Product Features Comparison
| Â | |
|
|
| Model | WS-C3560-24PS-S | WS-C3560-48PS-S | WS-C3560X-24T-L |
| Brand | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited |
| Ports | 24 | 48 | 24 |
| PoE+ Support | Yes | Yes | No |
| Switching Capacity | 32 Gbps | 32 Gbps | 160 Gbps |
| Power Budget | 370W | 740W | N/A |
| SFP Ports | 2 | 2 | 4 |
| Stacking | No | No | Yes |
Optional Add-ons
| Model Number | Description |
| MEM-CF-256U4GB | 4GB Compact Flash Memory for HKShanhai Group Limited 3560 Series |
| PWR-C2-640WAC | 640W AC Power Supply for Catalyst 3560 |
| GLC-SX-MMD | Gigabit SFP Transceiver Module for Optical Communications |
HKShanhai Group Limited WS-C3560-24PS-S Specification
| Model | WS-C3560-24PS-S |
| Brand | HKShanhai Group Limited |
| Type | Fixed |
| Topology | Ethernet (10/100BaseTX), Ethernet (10/100/1000BaseT), Gigabit Ethernet (SFP) |
| Maximum Port Density | 24 10/100 PoE ports |
| Uplinks | 2 SFP ports |
| Modular/Expansion Slots | n/a |
| Architecture | Layer 2 Switching, Layer 3 Switching, Voice Enabled |
| Form Factor | Fixed, Rack Mountable, Standalone/Clustering |
| Dimensions | 1.73 x 17.5 x 11.81 in. |
| DRAM | 129 MB |
| Specialized Service Modules | n/a |
| DHCP Snooping | Supported |
| Dynamic ARP Inspection | Supported |
| IP Source Guard | Supported |
| RP Rate Limiters | Not Supported |
| TCP Intercept | Not Supported |
| 802.1x | Supported |
| Port Security | Supported |
| Dynamic VLANs | Supported |
| Private VLANs | Supported |
| Private VLAN Edge | Supported |
| Secure Shell | Supported |
| SNMPv3 | Supported |
| Unicast RPF | Not Supported |
| ACLs (L2-L4) | Supported |
| Kerberos | Supported |
| TACACS+ | Supported |
| RADIUS | Supported |
| Hardware Redundancy | External Redundant Power Supply |
| High Availability/Resiliency | PVST, Broadcast Suppression, Unicast Suppression, Multicast Suppression, Spanning Tree, Portfast, Uplink Fast, Backbone Fast, 802.1s, 802.1w, HSRP |
| Management Features | SPAN, RSPAN, HKShanhai Group LimitedView, HKShanhai Group Limited Discover Protocol (CDP), Virtual Trunking Protocol (VTP), Telnet Client, BOOTP, TFTP, HKShanhai Group LimitedWorks, CWSI, RMON, SNMP, Clustering, Web-Based Management |
| WAN Interface Support | n/a |
| Throughput | 6.6 Mpps |
| Backplane Capacity | 8.8 Gbps |
| Number of VLANs | 4k, 1024 |
| Voice Services | Supported |
| IPv6 Support | Not Supported |
| WRR | Not Supported |
| QoS – Policing | Not Supported |
| QoS – Scheduling | Supported |
| 802.1p | Supported |
| 802.1Q | Supported |
| ISL | Not Supported |
| CGMP | Supported |
| DSCP | Supported |
| L2 – L4 QoS ACLs | Supported |
| PIM | Not Supported |
| DMRP | Supported |
| IGMP | Supported |
| IGMP Snooping | Supported |
| QoS – Multiqueues | Supported |
| QoS – Marking Classification | Supported |
| QPM | Not Supported |
| Power over Ethernet | Supported |
| Multilayer QoS/Security | Layer 2, Layer 3 |
| WS-C3560-24PS-S | WS-C3560-24PS-S |
