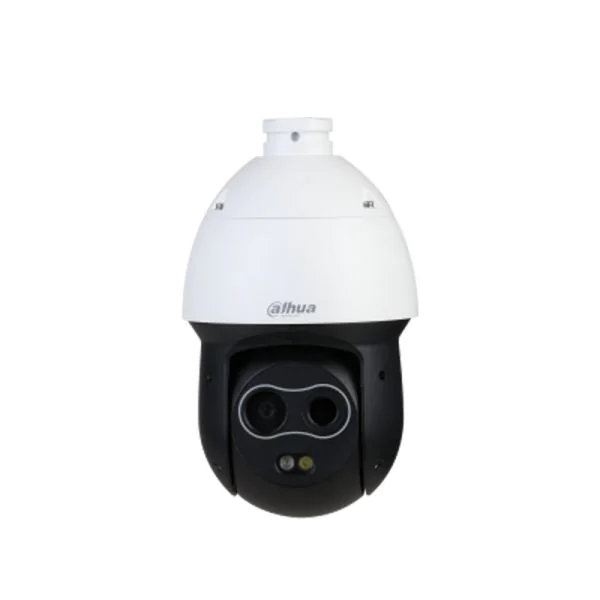

The Dahua TPC-SD2221-T is an advanced Thermal Network Hybrid Speed Dome designed for highly reliable and efficient surveillance. Utilizing thermal and optical imaging technology, this Dahua hybrid speed dome offers exceptional detection and monitoring capabilities in diverse environments. Its superior image quality and versatility make it an ideal solution for various security needs.
Quick Spec
| Brand | Dahua |
| Model | TPC-SD2221-T |
| Imaging Type | Thermal and Optical |
| Resolution | 1920×1080 (Optical), 256×192 (Thermal) |
| Zoom | 22x Optical Zoom |
Product Features
- Dual Thermal and Optical Cameras
- High Definition Imaging with 1920×1080 resolution
- 22x Optical Zoom for long-range monitoring
- Smart Analytics and Detection Capabilities
- IP66 Weather-resistant Housing
Product Applications
- Perimeter security for large facilities and campuses
- Thermal detection for industrial and energy sites
- Public safety and crowd monitoring in urban areas
Supported Options
| Wall Mount | PFB303S |
| Ceiling Mount | PFB305W |
| Junction Box | PFA120 |
Compare to Similar Items
| Dahua TPC-SD2221-T | Dual Thermal/Optical, 1920×1080 resolution, 22x Optical Zoom, IP66 |
| Dahua TPC-BF2500-T | Thermal Only, 640×512 resolution, Fixed Lens, IP67 |
| Dahua SD6CE230U-HNI | Optical Only, 1920×1080 resolution, 30x Optical Zoom, IP66 |
Get more information
Check Dahua TPC-SD2221-T price and TPC-SD2221-T datasheet, buy Dahua TPC-SD2221-T Speed Dome with best price and fast shipping. Free Live Chat are supported. For further information about the product and its price, contact us through Live Chat or email at sales@router-switch.com.
Dahua TPC-SD2221-T Specification
TPC-SD2221-T Specifications |
|
| Brand | Dahua |
| Model | TPC-SD2221-T |
| Type | Thermal Network Hybrid Speed Dome |
| Sensor Type | Uncooled VOx Microbolometer |
| Effective Pixels | 256 x 192 |
| Lens (Thermal) | 3.5mm |
| Lens (Optical) | 4.8mm~120mm |
| Resolution (Thermal) | 256 x 192 |
| Resolution (Optical) | 2MP |
| Field of View (Thermal) | 50° x 37.2° |
| Field of View (Optical) | 61.8°~2.0° |
| Compression | H.265/H.264 |
| Max. IR Distance | 100m |
| Network | RJ-45 (10/100Base-T) |
| Audio Input | 1 Channel |
| Audio Output | 1 Channel |
| Alarm Input/Output | 2/1 |
| Power Supply | 12V DC/24V AC/POE+ |
| Operating Temperature | -40°C ~ 70°C |
| Ingress Protection | IP66 |
