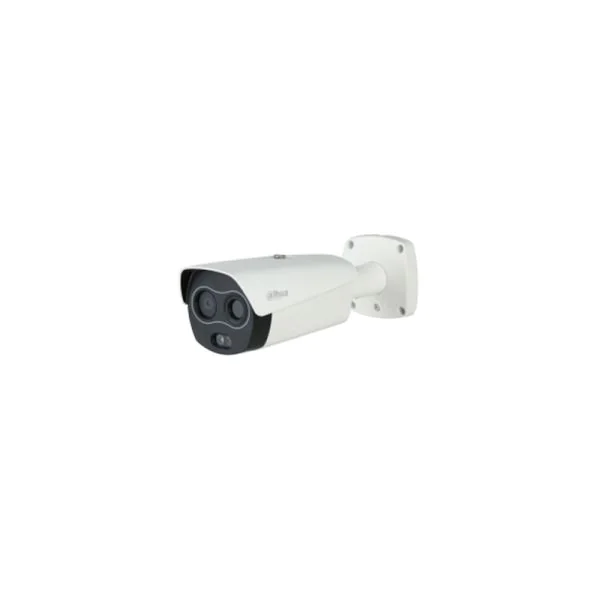

The Dahua TPC-BF2221-T is a powerful Thermal Network Hybrid Bullet Camera designed for accurate and efficient thermal imaging combined with advanced network monitoring capabilities. Ideal for use in various security applications, this camera delivers exceptional performance and high-quality imaging. It’s a perfect solution for those who require reliable and robust surveillance in diverse environments.
Quick Spec
| Resolution | 640 x 512 |
| Thermal Lens | 13mm |
| Digital Zoom | 2x, 4x, 8x |
| Ingress Protection | IP67 |
| Operating Temperature | -30°C to 60°C |
Product Features
- Advanced thermal imaging for high accuracy detection.
- Hybrid technology with thermal and visible light imaging.
- High-resolution sensor (640 x 512).
- Robust design with IP67 rating for outdoor use.
- Wide dynamic range and digital zoom up to 8x.
Product Applications
- Perimeter security and surveillance.
- Fire detection in industrial settings.
- Monitoring of critical infrastructure such as substations and pipelines.
Supported Options
| Mounting Bracket | PFA150 |
| Sunshield | PFB302S |
| Extension Cable | PFB121W |
Compare to Similar Items
| Similar Model | Differences |
| Dahua TPC-BF5120 | Lower resolution (400 x 300) |
| Dahua TPC-BF2241-T | 23mm thermal lens |
| Dahua TPC-PT8421C | Pan-tilt feature included |
Get more information
For more details, contact us through Live Chat or at sales@router-switch.com. Check Dahua TPC-BF2221-T price and TPC-BF2221-T datasheet. Buy Dahua TPC-BF2221-T with the best price and fast shipping. Free Live Chat support is available.
Dahua TPC-BF2221-T Specification
TPC-BF2221-T Specifications |
|
| Brand | Dahua |
| Product Name | Dahua Thermal Network Hybrid Bullet Camera |
| Model | TPC-BF2221-T |
| Image Sensor | 1/2.8° 2MP CMOS |
| Resolution | 1920 x 1080 |
| Thermal Sensor | 256×192 VOx Uncooled Thermal Sensor |
| Lens | 4 mm (thermal), 8 mm (visible) |
| IR Distance | Up to 50m |
| Display Mode | Thermal/Visible/Bifocal Fusion |
| Video Compression | H.265, H.264, MJPEG |
| Audio Compression | G.711a/G.711Mu/AAC |
| Frame Rate | Max. 25/30 fps |
| Day/Night Mode | IR Cut Filter with Auto Switch |
| Ingress Protection | IP67 |
| Power Supply | DC 12V, PoE (802.3af) |
| Operating Temperature | -20°C to +55°C |
| Dimensions | 246.6 mm ° 90 mm ° 90 mm |
| Storage | Micro SD card slot, up to 128 GB |
| Network Interface | RJ-45 (10/100 Base-T) |
| Smart Alarm | Temperature Measurement, Fire Detection |
| Housing | Metal |
