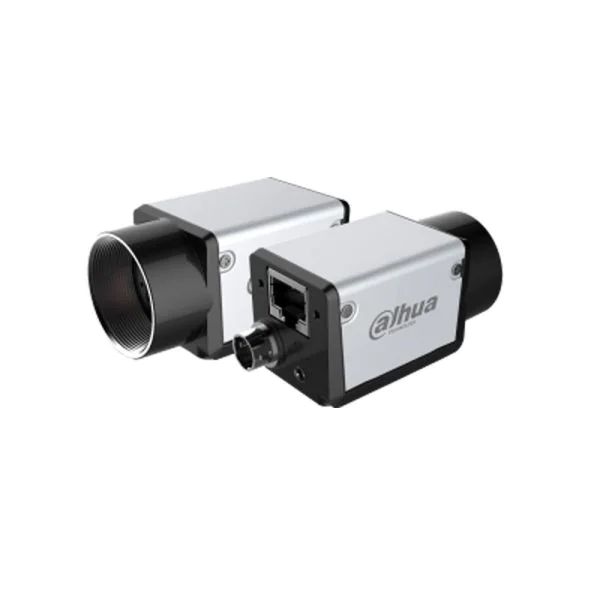

The Dahua MV-A5031M/CG300E, part of the Dahua Area Scan Cameras series, is a cutting-edge imaging solution designed for precision and reliability. With advanced capabilities tailored for industrial and surveillance applications, this camera offers superior image quality and functionality. It is ideal for capturing high-resolution images in a variety of environments, ensuring detailed inspection and accurate monitoring.
Quick Spec
| Brand | Dahua |
| Model | MV-A5031M/CG300E |
| Resolution | 5 MP |
| Frame Rate | 300 fps |
| Interface | Camera Link |
Product Features
- High-resolution 5 MP area scan sensor
- 300 frames per second for high-speed imaging
- Camera Link interface for fast data transfer
- Robust design suitable for industrial environments
- Automatic exposure control for optimal image quality
Product Applications
- Industrial inspection for quality control
- Surveillance in high-security areas
- Machine vision applications in manufacturing
Supported Options
| Accessory | Model |
| Cable | CL-10M |
| Lens | LH-50M |
| Mount | MT-20A |
Compare to Similar Items
| Model | Main Differences |
| MV-A5031M/CG200E | Lower frame rate at 200 fps |
| MV-A2031M/CG300E | Lower resolution at 2 MP |
| MV-A8031M/CG300E | Higher resolution at 8 MP |
Get more information
For further information about the Dahua MV-A5031M/CG300E and its price, including the Dahua MV-A5031M/CG300E datasheet, contact us through Live Chat or at sales@router-switch.com. Check Dahua MV-A5031M/CG300E price and MV-A5031M/CG300E datasheet, buy Dahua MV-A5031M/CG300E with best price and fast shipping. Free Live Chat is supported.
Dahua MV-A5031M/CG300E Specification
MV-A5031M/CG300E Specifications |
|
| Brand | Dahua |
| Model | MV-A5031M/CG300E |
| Type | Area Scan Camera |
| Resolution | 5 MP |
| Image Sensor | 1/1.8-inch CMOS |
| Frame Rate | 31 fps |
| Pixel Size | 3.45 °m x 3.45 °m |
| Shutter Type | Global Shutter |
| Dynamic Range | 65 dB |
| Lens Mount | C-Mount |
| Data Interface | GigE |
| Synchronization | Hardware and Software Trigger |
| Operating Temperature | -10°C to 60°C |
| Storage Temperature | -20°C to 70°C |
| Power Supply | POE or 12V DC |
| Power Consumption | 5W |
| Dimensions | 29 mm x 29 mm x 42 mm |
| Ingress Protection | IP30 |
| Compliance | CE, FCC, RoHS |
| Software | SDK provided |
| Applications | Industrial Inspection, Machine Vision, Surveillance |
