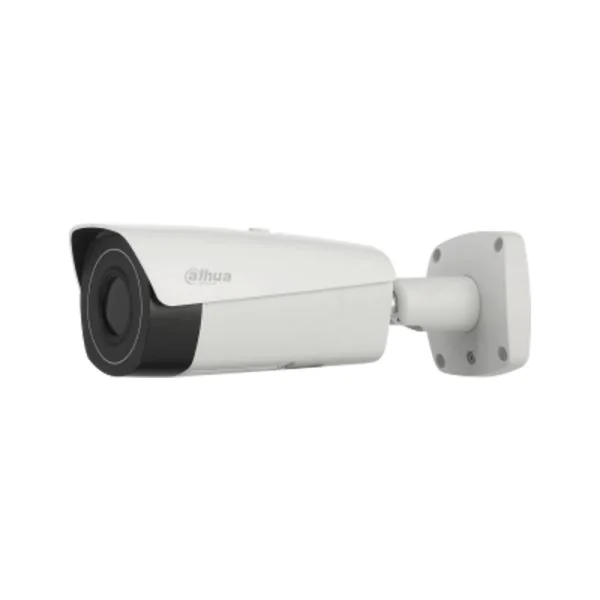

The Dahua TPC-BF5601-T Thermal Network Bullet Camera is a high-performance surveillance device designed for accurate temperature measurement and reliable monitoring in diverse environments. It utilizes advanced thermal imaging technology to provide clear and precise visuals in all lighting conditions, making it an ideal solution for perimeter monitoring and early fire detection.
Quick Spec
| Resolution | 640 �� 512 (thermal); 2MP (optical) |
| Lens | 13 mm; 35 mm (thermal); 8-32 mm (optical) |
| Temperature Range | -20°C to 150°C |
| Network Protocol | IPv4; IPv6; HTTP; HTTPS; FTP; RTP |
| Power Supply | 12V DC; PoE |
Product Features
- High-resolution thermal and optical imaging
- Smart tracking capabilities
- Advanced image fusion technology
- Wide temperature detection range
- Robust and weather-proof design
Product Applications
- Industrial facility monitoring for equipment overheating
- Perimeter surveillance in critical areas
- Early fire detection in high-risk zones
Supported Options
| Junction Mount | PFA137 |
| Ceiling Mount | PFB203W |
| Wall Mount | PFB204W |
Compare to Similar Items
| Model | Differences |
| Dahua TPC-BF1241 | Lower resolution, fewer smart features |
| Dahua TPC-BF3221 | Medium resolution, moderate smart capabilities |
| Dahua TPC-BF8781 | Higher resolution, more advanced features |
Get more information
Contact us through Live Chat or email at sales@router-switch.com for further information about the Dahua TPC-BF5601-T Thermal Network Bullet Camera and its price. Check Dahua TPC-BF5601-T price and TPC-BF5601-T datasheet, buy Dahua TPC-BF5601-T Thermal Network Bullet Camera with the best price and fast shipping. Free Live Chat is supported.
Dahua TPC-BF5601-T Specification
TPC-BF5601-T Specifications |
|
| Brand | Dahua |
| Model | TPC-BF5601-T |
| Product Type | Thermal Network Bullet Camera |
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Resolution | 640 x 512 |
| Pixel Size | 17 °m |
| Lens Type | Fixed |
| Focal Length | 35mm |
| Field of View | 17.7° x 14.2° |
| Min. Illumination Level | 0 lux (IR on, IR illumination distance: up to 50m) |
| Video Compression | H.264/H.265/MJPEG |
| Frame Rate | 50fps @ 1280 x 1024 |
| Day/Night Switch | Yes |
| Audio Compression | G.711a/ G.711Mu/ PCM |
| Audio Input | 1 channel |
| Audio Output | 1 channel |
| Network Protocols | IPv4/IPv6, HTTP, HTTPS, UDP, ICMP, RTP, RTSP, SMTP, DHCP, TCP/IP |
| Power Supply | DC12V/ PoE |
| Operating Temperature | -30°C to +60°C |
| Ingress Protection | IP67 |
| Dimensions | 273.2mm x 104.6mm x 104.9mm |
