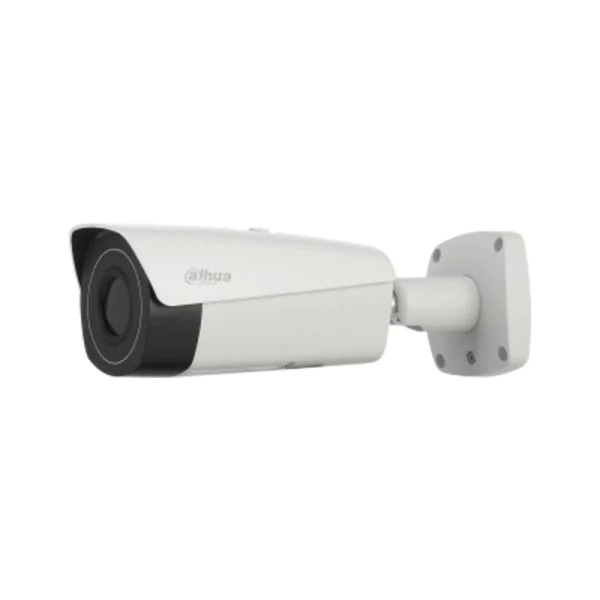

The Dahua TPC-BF5601 is a high-performance thermal network bullet camera designed for versatile surveillance applications. It delivers exceptional thermal imaging, making it ideal for various environments that require precise temperature measurements and superior security monitoring. The TPC-BF5601 ensures accurate detection and clear visuals, even in complete darkness.
Quick Spec
| Brand | Dahua |
| Model | TPC-BF5601 |
| Resolution | 640 x 512 |
| Lens | 25mm |
| Temperature Range | -40°C to 550°C |
Product Features
- High sensitivity thermal module with 640×512 resolution.
- Advanced image processing technology for clear and detailed thermal imaging.
- Comprehensive temperature measurement capabilities.
- Integrated network capabilities for remote monitoring and management.
- Durable and weatherproof design, suitable for outdoor use.
Product Applications
- Industrial temperature monitoring in manufacturing plants.
- Security surveillance for critical infrastructure and sensitive areas.
- Search and rescue operations in low-visibility environments.
Supported Options
| Mount | PFA150 |
| Junction Box | PFA120 |
| Sunshield | PFB703 |
Compare to Similar Items
| Model | Main Differences |
| Dahua TPC-BF5200 | Lower resolution of 384 x 288 |
| Dahua TPC-BF5400 | Limited temperature measurement range of -20°C to 550°C |
| Dahua TPC-SD8320 | PTZ functionality but lower image resolution |
Get more information
For further information about the Dahua TPC-BF5601 and its pricing, please contact us through Live Chat or email us at sales@router-switch.com. Check Dahua TPC-BF5601 price and TPC-BF5601 datasheet, buy Dahua TPC-BF5601 series with the best price and fast shipping. Free Live Chat support is available.
Dahua TPC-BF5601 Specification
TPC-BF5601 Specifications |
|
| Brand | Dahua |
| Model | TPC-BF5601 |
| Type | Thermal Network Bullet Camera |
| Resolution | 640 ° 512 |
| Thermal Sensor | Uncooled VOx Microbolometer |
| Pixel Pitch | 12 °m |
| Lens | 50 mm |
| Field of View | 12.4° ° 10.0° |
| Min. Illumination | 0.005 Lux at F1.4 |
| Image Frequency | 50 Hz/60 Hz |
| Shutter Speed | 1/3s to 1/100,000s |
| Network Protocol | HTTP, HTTPS, TCP/IP, IPv4/IPv6 |
| Video Compression | H.264, H.265, MJPEG |
| Audio Input | 1 Channel |
| Audio Output | 1 Channel |
| Protection Level | IP67 |
| Operating Temperature | -30°C to +60°C (-22°F to +140°F) |
| Power Supply | 12V DC/24V AC/ PoE |
| Power Consumption | Max. 12W |
| Dimension | 374.6 mm ° 119 mm ° 119 mm |
