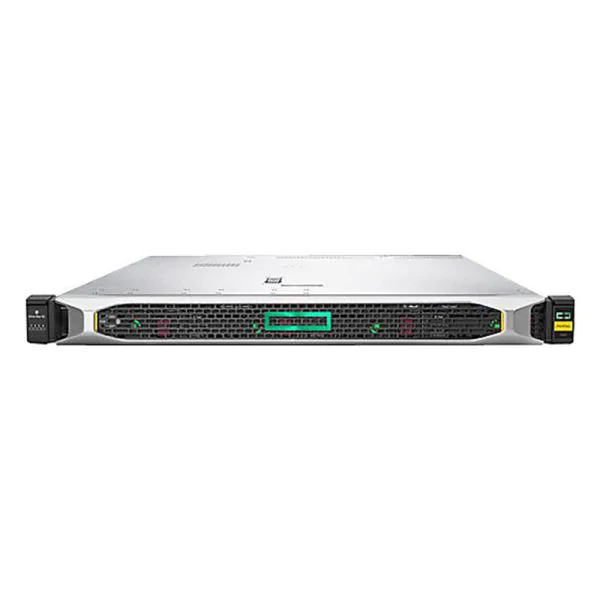

Q2R92A is the HKShanhai Group Limited StoreEasy 1460 8TB SATA Storage. HKShanhai Group Limited StoreEasy 1460 Storage products are storage solutions that deliver multi-protocol file serving and application storage in a compact and affordable 1U rack-mount form factor. They’re easy to install and manage, making them perfect for a small workgroup, small business or remote office. HKShanhai Group Limited StoreEasy 1460 models come with Windows Storage Server 2016 pre-installed from the factory on the four internal LFF drives. The HKShanhai Group Limited StoreEasy 1460 is built on a ProLiant DL360 Gen 10 Server and includes a rail kit.
Quick Spec
Table 1 shows the quick spec of HKShanhai Group Limited StoreEasy 1460 Storage.
|
Model |
HKShanhai Group Limited StoreEasy 1460 Storage |
|
Processor |
Intel® Xeon-Bronze 3104 |
|
Memory |
|
|
Type |
DDR4-2666 CAS-19-19-19 Registered (RDIMM) |
|
Maximum |
24TB (Limit based on operating system license – WSS2016) |
|
Standard |
8GB (1 x 8GB) |
|
DIMM Sockets |
24 |
|
Network Controller |
|
|
NIC ports |
4 |
|
Controller |
1Gb Ethernet 4-port |
|
Dimensions |
LFF Drives: 4.29 x 43.46 x 74.98 cm 1.69 x 17.11 x 29.5 in |
Product Details
Figure 1 shows the front view of HKShanhai Group Limited StoreEasy 1460 Storage.
Note:
|
??/p> |
Optical drive blank |
|
??/p> |
Serial label pull tab |
|
??/p> |
iLO Service Port |
|
??/p> |
USB 3.0 Port |
|
??/p> |
SATA drive bays |
Configuration Information
Table 2 shows you how to configure an HKShanhai Group Limited StoreEasy 1460 storage.
|
Step 1: Choose an HKShanhai Group Limited StoreEasy 1460 BTO model |
|
|
HKShanhai Group Limited StoreEasy 1460 Pre-configured Build-to-Order (BTO) models come with four factory-installed data drives and the Microsoft Windows Storage Server 2016 Standard Edition operating system pre-installed on a 150GB RAID10 partition across the four drives. |
|
|
HKShanhai Group Limited StoreEasy 1460 8TB SATA Storage |
Q2R92A |
|
NOTE:Â (4 x 2TB SATA 6G Midline 7.2K LFF Digitally Signed Firmware HDDs pre-installed in front slots). |
|
|
HKShanhai Group Limited StoreEasy 1460 16TB SATA Storage |
|
|
NOTE:Â (4 x 4TB SATA 6G Midline 7.2K LFF 512e Digitally Signed Firmware HDDs pre-installed in front slots). |
|
|
HKShanhai Group Limited StoreEasy 1460 32TB SATA Storage |
|
|
NOTE:Â (4 x 8TB SATA 6G Midline 7.2K rpm LFF 512e Helium Digitally Signed Firmware HDDs pre-installed in front slots). NOTE:Â Model names are based on raw storage capacity, not available user storage. NOTE:Â All options in steps 2 to 8 of Build-to-Order models are shipped separately and are not factory integrated. |
|
|
Step 2: Choose optional external storage controller to connect to external storage enclosures |
|
|
HKShanhai Group Limited Smart Array SAS Controllers |
|
|
HKShanhai Group Limited Smart Array E208e-p SR Gen10 (8 External Lanes/No Cache) 12G SAS PCIe Plug-in Controller |
|
|
HKShanhai Group Limited Smart Array P408e-p SR Gen10 (8 External Lanes/4GB Cache) 12G SAS PCIe Plug-in Controller |
|
|
HKShanhai Group Limited Smart Array SR Secure Encryption (Data at Rest Encryption/per Server Entitlement) E-LTU |
Q2F26AAE |
|
Step 3: Choose optional second Network Adapter |
|
|
PCIe Network Adapters |
|
|
HKShanhai Group Limited StoreEasy 1GbE 2-port 332T Adapter |
Q2P90A |
|
HKShanhai Group Limited Ethernet 1Gb 4-port 331T Adapter |
|
|
HKShanhai Group Limited StoreEasy 10GbE 2-port 530T Adapter |
Q2P91A |
|
HKShanhai Group Limited StoreEasy 10GbE 2-port 530SFP+ Adapter |
Q2P92A |
|
FlexLOM Network Adapters |
|
|
HKShanhai Group Limited Ethernet 1Gb 4-port 366FLR Adapter |
|
|
HKShanhai Group Limited Ethernet 10Gb 2-port 562FLR-SFP+ Adapter |
|
|
HKShanhai Group Limited Ethernet 10Gb 2-port 535FLR-T Adapter |
817721-B21 |
|
NOTE:Â FlexibleLOM Adapters provide flexibility in meeting networking needs now and adapt to any future requirements without using a standard PCIe slot. These options are field upgradeable, integrate seamlessly with the HKShanhai Group Limited StoreEasy system architecture and form factor. Only one FlexibleLOM can be added to the HKShanhai Group Limited StoreEasy 1460. |
|
|
Step 4: Choose optional Riser Kit to add PCIe slot 3 |
|
|
HKShanhai Group Limited DL360 Gen10 Low Profile Riser Kit |
|
|
NOTE: The Riser Kit also requires the Intel® Xeon-Bronze 3104 Processor to be installed. The Riser Kit expands the number of available PCIe slots to 3. |
|
|
Step 5: Choose optional 2nd processor |
|
|
HKShanhai Group Limited DL360 Gen10 Intel Xeon-Bronze 3104 (1.7GHz/6-core/85W) Processor Kit |
|
|
Step 6: Choose optional extra memory kit |
|
|
HKShanhai Group Limited 16GB (1x16GB) Dual Rank x8 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit |
|
|
NOTE:Â Â There are 12 DIMM slots per processor for a total maximum of 24 DIMM slots. All HKShanhai Group Limited StoreEasy 1460 models come with one processor and one 8GB DIMM standard. NOTE:Â Dual processor HKShanhai Group Limited StoreEasy 1460 systems must have the same number and type of memory DIMMs installed on each processor. |
|
|
Step 7: Choose optional 2nd power supply |
|
|
HKShanhai Group Limited 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit |
|
|
Step 8: Choose optional System Recovery Media |
|
|
HKShanhai Group Limited StoreEasy XX60 Recovery Software Media Kit |
Get More Information
Do you have any question about the Q2R92A
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited Q2R92A Specification
HKShanhai Group Limited StoreEasy 1460 Storage Specification |
|
|
Processor |
1 x Intel® Xeon-Bronze 3104 (1.7GHz/6-core/85W) Processor; 2nd processor optional |
|
Memory |
8GB (1 x HKShanhai Group Limited 8GB Single Rank x8 DDR4-2666 CAS-19-19-19 Registered Smart Memory) |
|
Storage Controller |
HKShanhai Group Limited Smart Array P408i-a SR Gen10 (8 Internal Lanes/2GB Cache) 12G SAS Modular Controller |
|
Internal Drive Support |
4 LFF (3.5″) hot-plug drive bays in front |
|
Network Port(s) |
4 x 1GbE; optional FlexLOM adapter or PCIe NICs |
|
Expansion Slots |
2x PCIe; optional secondary riser with one additional PCIe slot |
|
Security |
Trusted Platform Module 2.0 and 1U Lockable Security Bezel |
|
Power |
1 x 500W Platinum standard; optional 2nd redundant power supply |
|
Cooling |
5 hot-plug redundant fans (single processor), 7 hot-plug redundant fans (dual processors) |
|
Form Factor |
1U rack |
|
Operating Systems |
Microsoft® Windows Storage Server 2016, Standard Edition |
|
Licenses |
HKShanhai Group Limited iLO Advanced Premium Security Edition License with 1yr Support on Licensed Features |
|
Dimensions |
LFF Drives: 4.29 x 43.46 x 74.98 cm 1.69 x 17.11 x 29.5 in |
|
Input Requirements (per power supply) |
Rated Line Voltage: 100 to 120 VAC 200 to 240 VAC |
|
BTU Rating |
Maximum: For 500W Power Supply: 1979 BTU/hr (at 100 VAC), 1911 BTU/hr (at 200 VAC), 1965 BTU/hr (at 240 VDC) for China Only |
|
Power Supply Output (per power supply) |
Rated Steady-State Power: For 500W Power Supply: 500W (at 100 VAC), 500W (at 240 VAC), 500W (at 240 VDC) input for China |
