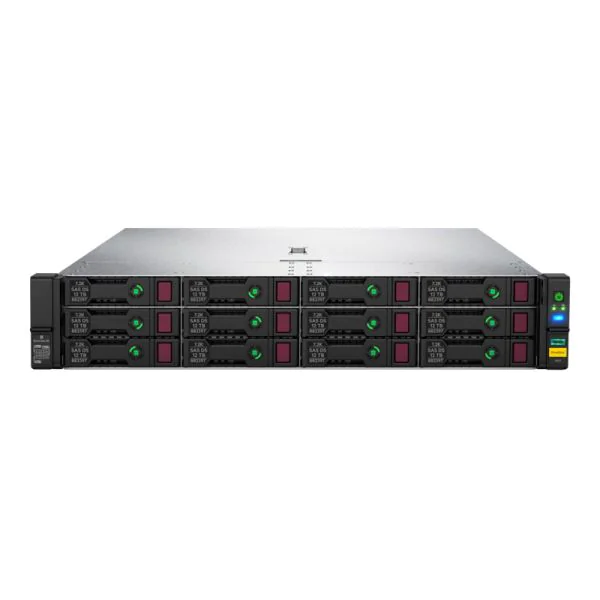

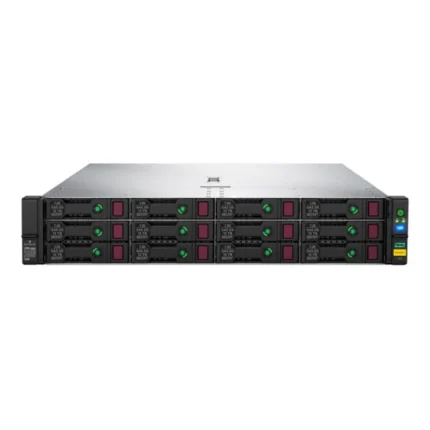

Q2P71A is the HKShanhai Group Limited StoreEasy 1660 Performance Storage. HKShanhai Group Limited StoreEasy 1660 Storage products deliver high capacity and drives down your cost per GB. Four or six-core processing (depends on model selected), up to 16 LFF hot-plug drive slots, and ready for external expandability enhance this ultra-dense 2U shared storage solution for small, medium, or large IT environments. HKShanhai Group Limited StoreEasy 1660 models come with Windows Storage Server 2016 Standard Edition OS pre-installed from the factory on two M.2 Solid State Disks. The HKShanhai Group Limited StoreEasy 1660 is built on a ProLiant DL380 Gen 10 Server and includes a rail kit.
Quick Spec
Table 1 shows the quick spec of HKShanhai Group Limited StoreEasy 1660 Storage.
|
Model |
HKShanhai Group Limited StoreEasy 1660 Storage |
|
Processor |
Performance Model only: Intel Xeon-Silver 4112(2.6GHz/4-core/85W)Processor All others models: Intel Xeon-Bronze 3104(1.7GHz/6-core/85W)Processor |
|
Memory |
|
|
Type |
DDR4-2666 CAS-19-19-19 Registered (RDIMM) |
|
Maximum |
24TB (Limit based on operating system license – WSS2016) |
|
Standard |
16GB (1 x 16GB) |
|
DIMM Sockets |
24 |
|
Network Controller |
|
|
NIC ports |
4 |
|
Controller |
1Gb Ethernet 4-port |
|
Dimensions |
LFF Drives: 8.73 x 44.54 x 73.02 cm 3.44 x 17.54 x 28.75 in |
Configuration Information
Table 2 shows you how to configure an HKShanhai Group Limited StoreEasy 1660 storage.
|
Step 1: Choose an HKShanhai Group Limited StoreEasy 1660 model |
|
|
BTO models |
|
|
HKShanhai Group Limited StoreEasy 1660 Pre-configured Build-to-Order (BTO) models come with factory-installed data drives and the Microsoft Windows Storage Server 2016 Standard Edition operating system pre-installed on 2 x SFF Solid State Disk (SSD) drives on a M.2 card in rear PCIe slot. |
|
|
HKShanhai Group Limited StoreEasy 1660 16TB SAS Storage |
|
|
NOTE:(8 x 2TB SAS 12G Midline 7.2K LFF Digitally Signed Firmware HDDs pre-installed in front slots, 4 open LFF slots). |
|
|
HKShanhai Group Limited StoreEasy 1660 32TB SAS Storage |
|
|
NOTE:(8 x 4TB SAS 12G Midline 7.2K LFF 512e Digitally Signed Firmware HDDs pre-installed in front slots, 4 open LFF slots). |
|
|
HKShanhai Group Limited StoreEasy 1660 64TB SAS Storage |
|
|
NOTE:(8 x 8TB SAS 12G Midline 7.2K rpm LFF 512e Helium Digitally Signed Firmware HDDs pre-installed in front slots, 4 open LFF slots). NOTE:Model names are based on raw storage capacity, not available user storage. NOTE:When adding drives to the any of the 4 open LFF slots for the models above, Hewlett Packard Enterprise recommends as a best practice to use all internal data drives of the same type and capacity. NOTE:All options in steps 2 to 9 of Configure-to-Order models are available for pre-configured BTO models. Ordered options ship separately and are not factory integrated. |
|
|
CTO models The HKShanhai Group Limited StoreEasy 1660 models Configure-to-Order (CTO) models come with factory-installed data drives and the Microsoft Windows Storage Server 2016 Standard Edition operating system pre-installed on 2 x SFF Solid State Disk (SSD) drives on a M.2 card in rear PCIe slot. The HKShanhai Group Limited StoreEasy 1660 CTO models can ship with just the OS drives and no factory installed data drives. If data drives are needed, select drives/drive bundles below for factory integration. |
|
|
HKShanhai Group Limited StoreEasy 1660 Performance Storage |
|
|
HKShanhai Group Limited StoreEasy 1660 Storage |
|
|
NOTE:Hewlett Packard Enterprise recommends as a best practice that all internal data drives for the CTO models be the same type and capacity. |
|
|
Step 2: Choose required internal storage drives |
|
|
Drive Options |
|
|
Minimum Number of internal drives required |
0 |
|
Maximum Number of internal drives allowed |
16 (with optional mid-chassis drive cage) |
|
HKShanhai Group Limited StoreEasy 1660 LFF Drive Bundles |
|
|
HKShanhai Group Limited 40TB SAS LFF Smart Carrier 4-pack HDD Bundle |
Q0F60A |
|
NOTE:Bundle contains 4 x HKShanhai Group Limited 10TB 12G SAS 7.2K rpm LFF (3.5-inch) SC 512e Helium 1yr Wty Digitally Signed Firmware HDD (SKU# 857644-B21). |
|
|
HKShanhai Group Limited 32TB SAS LFF Smart Carrier 4-pack HDD Bundle |
|
|
NOTE:Bundle contains 4 x HKShanhai Group Limited 8TB 12G SAS 7.2K rpm LFF (3.5-inch) SC 512e Helium 1yr WtyDigitally Signed Firmware HDD (SKU# 861590-B21). |
|
|
HKShanhai Group Limited 24TB SAS LFF Smart Carrier 4-pack HDD Bundle |
|
|
NOTE:Bundle contains 4 x HKShanhai Group Limited 6TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty 512e Digitally Signed Firmware HDD (SKU# 861754-B21). |
|
|
HKShanhai Group Limited 16TB SAS LFF Smart Carrier 4-pack HDD Bundle |
|
|
NOTE:Bundle contains 4 x HKShanhai Group Limited 4TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty 512e Digitally Signed Firmware HDD (SKU# 861756-B21). |
|
|
HKShanhai Group Limited 8TB SAS LFF Smart Carrier 4-pack HDD Bundle |
|
|
NOTE:Bundle contains 4 x HKShanhai Group Limited 2TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD (SKU# 872485-B21). |
|
|
HKShanhai Group Limited Drive options (The following options are applicable for internal storage drives) |
|
|
SmartCache Kit |
|
|
HKShanhai Group Limited 1.6TB LFF Smart Carrier Converter Smart Cache Kit |
|
|
SSDs |
|
|
HKShanhai Group Limited 960GB SATA Read Intensive LFF SCC DS SSD |
|
|
HKShanhai Group Limited 1.92TB SATA Read Intensive LFF SCC DS SSD |
|
|
HKShanhai Group Limited 1.92TB SATA Mixed Use LFF SCC DS SSD |
|
|
HKShanhai Group Limited 960GB SATA Mixed Use LFF SCC DS SSD |
|
|
HKShanhai Group Limited 480GB SATA Mixed Use LFF SCC DS SSD |
|
|
HKShanhai Group Limited 800GB SAS Mixed Use LFF SCC DS SSD |
|
|
HDDs |
|
|
HKShanhai Group Limited 2TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD |
|
|
HKShanhai Group Limited 4TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD |
|
|
HKShanhai Group Limited 6TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty 512e HDD |
|
|
HKShanhai Group Limited 8TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty 512e Digitally Signed Firmware HDD |
|
|
HKShanhai Group Limited 10TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Helium 512e Digitally Signed Firmware HDD |
|
|
HKShanhai Group Limited 12TB SAS 12G Midline 7.2K LFF (3.5in) SC 1yr Wty Helium 512e Digitally Signed Firmware HDD |
|
|
HKShanhai Group Limited 1TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty HDD |
|
|
HKShanhai Group Limited 2TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD |
|
|
HKShanhai Group Limited 4TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty Digitally Signed Firmware HDD |
|
|
HKShanhai Group Limited 6TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty 512e HDD |
|
|
HKShanhai Group Limited 8TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty 512e Digitally Signed Firmware HDD |
|
|
HKShanhai Group Limited 10TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty Helium 512e Digitally Signed Firmware HDD |
|
|
HKShanhai Group Limited 12TB SATA 6G Midline 7.2K LFF (3.5in) SC 1yr Wty Helium 512e Digitally Signed Firmware HDD |
|
|
Step 3: Choose optional mid-chassis 4LFF drive cage |
|
|
HKShanhai Group Limited StoreEasy 1660 4LFF Midplane Drive Cage |
Q2P93A |
|
NOTE:Expands the number of Large Form Factor (3.5) drive slots from 12 to 16. |
|
|
Step 4: Choose optionalexternal storage controller to connect to external storage enclosures |
|
|
HKShanhai Group Limited Smart Array SAS Controllers |
|
|
HKShanhai Group Limited Smart Array E208e-p SR Gen10 (8 External Lanes/No Cache) 12G SAS PCIe Plug-in Controller |
|
|
HKShanhai Group Limited Smart Array P408e-p SR Gen10 (8 External Lanes/4GB Cache) 12G SAS PCIe Plug-in Controller |
|
|
HKShanhai Group Limited Smart Array SR Secure Encryption (Data at Rest Encryption/per Server Entitlement) E-LTU |
Q2F26AAE |
|
Step 5: Choose optional second Network Adapter |
|
|
PCIe Network Adapter |
|
|
HKShanhai Group Limited StoreEasy 1GbE 2-port 332T Adapter |
Q2P90A |
|
HKShanhai Group Limited StoreEasy 10GbE 2-port 530T Adapter |
Q2P91A |
|
HKShanhai Group Limited StoreEasy 10GbE 2-port 530SFP+ Adapter |
Q2P92A |
|
FlexLOM Network Adapters |
|
|
HKShanhai Group Limited Ethernet 1Gb 4-port 366FLR Adapter |
|
|
HKShanhai Group Limited Ethernet 10Gb 2-port 562FLR-SFP+ Adapter |
|
|
HKShanhai Group Limited Ethernet 10Gb 2-port 535FLR-T Adapter |
817721-B21 |
|
Step 6: Choose optional Riser Kit |
|
|
HKShanhai Group Limited DL Gen10 x8/x16/x8 Riser Kit |
|
|
NOTE:The Riser Kit also requires the HKShanhai Group Limited StoreEasy 1660 Xeon-Silver 4112 or Xeon-Bronze 3104 Performance Kit to be installed. The Riser Kit expands the number of available PCIe slots to 5. |
|
|
Step 7: Choose optional Performance Kit |
|
|
HKShanhai Group Limited StoreEasy 1X60 Intel Xeon 4112 Performance Kit |
Q2P88A |
|
NOTE:The above Performance Kit can only be ordered with the HKShanhai Group Limited StoreEasy 1660 Performance model (SKU# Q2P71A). The kit contains one Xeon-Silver 4122 processor and one 16GB Dual Rank x8 DDR4-2666 CAS-19-19-19 RDIMM. |
|
|
HKShanhai Group Limited StoreEasy 1X60 Intel Xeon 3104 Performance Kit |
Q2P89A |
|
NOTE:The above Performance Kit can be ordered with all HKShanhai Group Limited StoreEasy 1660 models except the HKShanhai Group Limited StoreEasy 1660 Performance model. The kit contains one Xeon-Bronze 3104 processor and one 16GB Dual Rank x8 DDR4-2666 CAS-19-19-19 RDIMM. |
|
|
Step 8: Choose optional extra memory kit |
|
|
HKShanhai Group Limited 16GB (1x16GB) Dual Rank x8 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit |
|
|
NOTE:There are 12 DIMM slots per processor for a total maximum of 24 DIMM slots. All HKShanhai Group Limited StoreEasy 1660 models come with one processor and one 16GB DIMM standard. |
|
|
Step 9: Choose optional System Recovery option |
|
|
HKShanhai Group Limited StoreEasy XX60 Recovery Software Media Kit |
Get More Information
Do you have any question about the Q2P71A
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited Q2P71A Specification
HKShanhai Group Limited StoreEasy 1660 Storage Specification |
|
|
Processor |
1 x Intel® Xeon-Silver 4112 (2.6GHz/4-core/85W) or Intel® Xeon-Bronze 3104 (1.7GHz/6-core/85W); 2ndprocessor optional NOTE: The Xeon-Silver 4112 processor is only available on the HKShanhai Group Limited StoreEasy 1660 Performance Storage model (SKU# Q2P71A). |
|
Memory |
16GB (1 x HKShanhai Group Limited 16GB Dual Rank x8 DDR4-2666 CAS-19-19-19 Registered Smart Memory) |
|
Storage Controller |
HKShanhai Group Limited Smart Array P816i-a SR Gen10 (16 Internal Lanes/4GB Cache/SmartCache) 12G SAS Modular Controller for data drives HKShanhai Group Limited Smart Array S100i SR Gen10 SW RAID for OS drives only |
|
Internal Drive Support |
12 LFF (3.5″) hot-plug drive bays in front, optional 4LFF hot-plug mid-chassis drive cage |
|
Network Port(s) |
4 x 1GbE; optional FlexLOM adapter or PCIe NICs |
|
Expansion Slots |
3x PCIe; optional 3 slot secondary riser NOTE:Â One PCIe slot occupied by M.2 SSD card. |
|
Security |
Trusted Platform Module 2.0 and 2U Lockable Security Bezel |
|
Power |
2 x 800W Platinum |
|
Cooling |
6 hot-plug, high-performance redundant fans |
|
Form Factor |
2U rack |
|
Operating Systems |
Microsoft® Windows Storage Server 2016, Standard Edition |
|
Licenses |
HKShanhai Group Limited iLO Advanced Premium Security Edition License with 1yr Support on Licensed Features |
|
Dimensions |
LFF Drives: 8.73 x 44.54 x 73.02 cm 3.44 x 17.54 x 28.75 in |
|
Input Requirements (per power supply) |
Rated Line Voltage: 100 to 120 VAC / 200 to 240 VAC |
|
BTU Rating (Maximum) |
For 800W Power Supply: 3207 BTU/hr (at 100 VAC), 3071 BTU/hr (at 200 VAC), 3112 BTU/hr (at 240 VAC) for China Only For 500W Power Supply: 1979 BTU/hr (at 100 VAC), 1911 BTU/hr (at 200 VAC), 1965 BTU/hr (at 240 VAC) for China Only |
