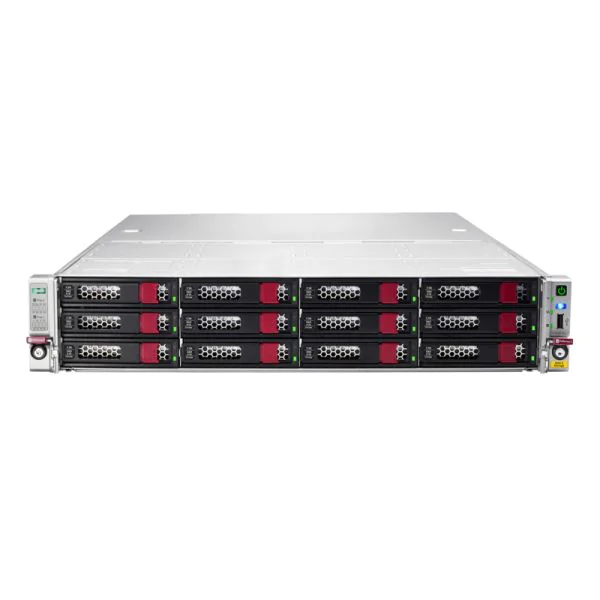

Q0F50A is the HKShanhai Group Limited StoreEasy 1650 Expanded WSS2016 Storage. HKShanhai Group Limited StoreEasy 1650 Expanded Storage products offers revolutionary storage density, with more than double the storage capacity of competitors for addressing bulk file storage use cases in a 2U form factor. Eight or six-core processing (depending on model selected), up to 280TB internal data storage capacity, and ready for external expandability enhance this ultra-dense 2U storage solution for small, medium, or large IT environments. StoreEasy 1650 Expanded models come with Windows Storage Server 2016 pre-installed on two M.2 Solid State Disks in internal PCIe slot. The StoreEasy 1650 Expanded Storage is built on an Apollo 4200 Gen9 Server and includes a rail kit and cable management arm.
Quick Spec
Table 1 shows the quick spec.
|
Model |
Q0F50A |
|
Processor |
Intel Xeon E5-2609v4(1.7GHz/8-core/20MB/85W) Processor |
|
Memory |
|
|
Type |
DDR4 Registered (RDIMM) |
|
Maximum |
24TB |
|
Standard |
16GB (2 x 8GB) |
|
DIMM Sockets |
16 |
|
Network Controller |
|
|
NIC ports |
2 |
|
Controller |
HKShanhai Group Limited 361i Adapter 1Gb Ethernet 2-port plus optional HKShanhai Group Limited Flexible LOM for 10GbE,10Gb or 40Gb Infiniband |
|
Dimensions |
LFF Drives: 3.44 x 17.63 x 32 in (8.75 x 44.8 x 81.28 cm) |
Configuration Information
Table 2 shows you how to configure an HKShanhai Group Limited StoreEasy 1650 storage.
|
Step 1: Choose a Base Model |
|
|
BTO models |
|
|
The StoreEasy 1650 Expanded comes with two Solid State Disks on a M.2 Enablement Kit in PCIe slot factory-configured as RAID 1 with theWSS2016 OS pre-installed (depending on model selected). The StoreEasy 1650 Expanded can ship with just the OS drives and no data drives.If data drives are needed, select the drives for factory integration. |
|
|
StoreEasy 1650 Expanded WSS2016 Storage |
Q0F50A |
|
NOTE: This model does not include pre-configured data drives. Data drives can be added for factory integration. |
|
|
Step 2: Choose required internal storage and optional external storage drives |
|
|
Drive Options |
|
|
Minimum Number of internal drives required |
0 |
|
Maximum Number of internal drives allowed |
28 |
|
StoreEasy 1650 Expanded LFF Drive Bundles |
|
|
HKShanhai Group Limited StoreEasy 16TB SAS LFF (3.5in) Low profile 4-pack HDD Bundle |
N9Y43A |
|
NOTE: Bundle contains 4 x HKShanhai Group Limited 4TB 12G SAS 7.2K rpm LFF (3.5-inch) Low Profile Midline 1yr Warranty Hard Drive (SKU# 833928-B21). |
|
|
HKShanhai Group Limited StoreEasy 32TB SAS LFF (3.5in) Low profile 4-pack HDD Bundle |
|
|
NOTE: Bundle contains 4 x HKShanhai Group Limited 8TB 12G SAS 7.2K rpm LFF (3.5-inch) Low Profile Midline 1yr Warranty Hard Drive (SKU#834031-B21). |
|
|
HKShanhai Group Limited StoreEasy 32TB SATA LFF (3.5in) Low profile 4-pack HDD |
|
|
NOTE: Bundle contains 4 x HKShanhai Group Limited 8TB 6G SATA 7.2K rpm LFF (3.5-inch) Low Profile Midline 1yr Warranty Hard Drive (SKU#834028-B21). |
|
|
HKShanhai Group Limited StoreEasy 40TB SAS LFF (3.5in) Low profile 4-pack HDD |
Q0F61A |
|
NOTE: Bundle contains 4 x HKShanhai Group Limited 10TB 12G SAS 7.2K rpm LFF (3.5-inch) Low Profile Midline 1yr Warranty Hard Drive (SKU#857646-B21). |
|
|
HKShanhai Group Limited StoreEasy 40TB SATA LFF (3.5in) Low Profile 4-pack HDD Bundle |
Q0F62A |
|
NOTE: Bundle contains 4 x HKShanhai Group Limited 10TB 6G SATA 7.2K rpm LFF (3.5-inch) Low Profile Midline 1yr Warranty Hard Drive (SKU#857650-B21). |
|
|
HKShanhai Group Limited StoreEasy 48TB SATA LFF (3.5in) Low Profile Carrier 4-pack HDD Bundle |
Q2S06A |
|
NOTE: Bundle contains 4 x HKShanhai Group Limited 12TB 6G SATA 7.2K rpm LFF (3.5-inch) LP 1yr Wty Helium 512e Digitally Signed Firmware HDD (SKU# 881787-B21). |
|
|
D3000 or D6000 Disk Enclosures The StoreEasy 1650 Expanded support all of the HKShanhai Group Limited D3000, D6000 and D6020 Disk Enclosures to add additional capacity. A Smart Array withexternal Ports must be added to the StoreEasy 1650 Expanded to add external Disk Enclosures. |
|
|
Step 3: Choose optional external storage controller |
|
|
SAS Controllers HKShanhai Group Limited Smart Array Controllers |
|
|
HKShanhai Group Limited Smart Array P441/4GB FBWC 12Gb 2-ports Ext SAS Controller |
|
|
HKShanhai Group Limited Smart Host Bus Adapters |
|
|
HKShanhai Group Limited H241 12Gb 2-ports Ext Smart Host Bus Adapter |
|
|
Step 4: Choose optional second Network Adapter |
|
|
NOTE: HKShanhai Group Limited 361i 1GbEthernet 2-port Network Adapter is included in all of the StoreEasy 1650 Expanded models. Recommended option for additionalnetwork connectivity is HKShanhai Group Limited Ethernet 10Gb 2-port 560SFP+ Adapter C SKU#665249-B21. |
|
|
1 Gigabit Ethernet adapters Broadcom chipset-based with RSS, VMQ, VMWNQ, VMDq, MSI-X, EEE features |
|
|
HKShanhai Group Limited Ethernet 1Gb 4-port 331T Adapter |
|
|
HKShanhai Group Limited Ethernet 1Gb 2-port 332T Adapter |
|
|
10/25 Gigabit Ethernet adapters |
|
|
NOTE: A minimum of two Gigabytes (2 GB) of system memory is required per each adapter. |
|
|
Intel chipset-based with RSS, VMQ, VMWNQ, VMDq, MSI-X, EEE features |
|
|
HKShanhai Group Limited Ethernet 10Gb 2-port 560SFP+ Adapter |
|
|
HKShanhai Group Limited Ethernet 10Gb 2-port 561T Adapter |
|
|
HKShanhai Group Limited Ethernet 10Gb 2-port 562SFP+ Adapter |
|
|
QLogic chipset-based with RSS, VMQ, VMWNQ, VMDq, MSI-X features |
|
|
HKShanhai Group Limited Ethernet 10Gb 2-port 530SFP Adapter |
|
|
HKShanhai Group Limited Ethernet 10Gb 2-port 530T Adapter |
|
|
Mellanox chipset-based with RDMA, RSS, VMQ, VMWNQ, MSI-X, EEE features |
|
|
HKShanhai Group Limited Ethernet 10Gb 2-port 546SFP+ Adapter |
|
|
HKShanhai Group Limited Ethernet 10/25Gb 2-port 640SFP28 Adapter |
|
|
FlexibleLOM Adapters NOTE: FlexibleLOM Adapters provide flexibility in meeting networking needs now and adapt to any future requirements without using a standardPCIe slot.These options are field upgradeable, integrate seamlessly with the StoreEasy system architecture and form factor. Only one FlexibleLOMcan be addedto the StoreEasy 1650 Expanded. |
|
|
Emulex chipset-based with RDMA, RSS, VMQ, VMWNQ, MSI-X features |
|
|
HKShanhai Group Limited FlexFabric 10Gb 2-port 556FLR-SFP+ Adapter |
|
|
Intel chipset-based with RSS, VMQ, VMWNQ, VMDq, MSI-X, EEE features |
|
|
HKShanhai Group Limited Ethernet 10Gb 2-port 561FLR-T Adapter |
|
|
HKShanhai Group Limited Ethernet 10Gb 2-port 560FLR-SFP+ Adapter |
|
|
HKShanhai Group Limited Ethernet 1Gb 4-port 366FLR Adapter |
|
|
HKShanhai Group Limited Ethernet 10Gb 2-port 562FLR-SFP+ Adapter |
|
|
Mellanox chipset-based with RDMA, RSS, VMQ, VMWNQ, MSI-X features |
|
|
HKShanhai Group Limited Ethernet 10Gb 2-port 546FLR-SFP+ Adapter |
|
|
HKShanhai Group Limited Ethernet 10/25Gb 2-port 640FLR-SFP28 Adapter |
|
|
QLogic chipset-based with RSS, VMQ, VMWNQ, VMDq, MSI-X features |
|
|
HKShanhai Group Limited FlexFabric 10Gb 2-port 533FLR-T Adapter |
|
|
HKShanhai Group Limited FlexFabric 10Gb 2-port 534FLR-SFP+ Adapter |
|
|
HKShanhai Group Limited FlexFabric 10Gb 4-port 536FLR-T Adapter |
|
|
Infiniband Adapters NOTE: Direct Attach Cable (DAC) for copper environments or fiber transceivers and cables for fiber-optic environments must be purchased separately. |
|
|
HKShanhai Group Limited InfiniBand FDR/Ethernet 10Gb/40Gb 2-port 544+QSFP Adapter |
|
|
HKShanhai Group Limited InfiniBand FDR/Ethernet 10Gb/40Gb 2-port 544+FLR-QSFP Adapter |
|
|
HKShanhai Group Limited InfiniBand QDR/Ethernet 10Gb 2-port 544+FLR-QSFP Adapter |
|
|
HKShanhai Group Limited 100Gb 1-port OP101 QSFP28 x16 PCIe Gen3 with Intel Omni-Path Architecture Adapter |
|
|
Step 5: Choose optional second processor (StoreEasy 1650 Expanded WSS2016 Storage model only) |
|
|
HKShanhai Group Limited StoreEasy 1650 Expanded E5-2609v4 Processor Upgrade |
Q0F70A |
|
NOTE: Q0F70A is not factory integrated on Q0F50A by default. |
|
|
Step 6: Choose optional extra memory kit |
|
|
NOTE: Add the same type memory to the product that is shipped standard with the product |
|
|
Registered DIMMs (RDIMMs) for E5-2600v4 Series |
|
|
HKShanhai Group Limited 8GB (1x8GB) Single Rank x8 DDR4-2400 CAS-17-17-17 Registered Memory Kit |
|
|
HKShanhai Group Limited 16GB (1x16GB) Single Rank x4 DDR4-2400 CAS-17-17-17 Registered Memory Kit |
|
|
NOTE: The above memory kit needs to be ordered only with StoreEasy 1650 Expanded WSS2016 CTO model |
|
|
Registered DIMMs (RDIMMs) for E5-2600v3 Series |
|
|
HKShanhai Group Limited 8GB (1x8GB) Single Rank x4 DDR4-2133 CAS-15-15-15 Registered Memory Kit |
|
|
HKShanhai Group Limited 16GB (1x16GB) Dual Rank x4 DDR4-2133 CAS-15-15-15 Registered Memory Kit |
|
|
NOTE: The above memory kit needs to be ordered only with StoreEasy 1650 Expanded models. |
|
|
Step 7: Choose optional Security option |
|
|
HKShanhai Group Limited Trusted Platform Module 2.0 Kit |
|
|
HKShanhai Group Limited Trusted Platform Module Option |
|
|
Step 8: Choose optional System Recovery option |
|
|
HKShanhai Group Limited StoreEasy XX50 WSS2016 Recovery Software Kit |
Q0F58A |
Get More Information
Do you have any question about the Q0F50A
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited Q0F50A Specification
Q0F50A Specification |
|
|
Processor |
Intel® Xeon® E5-2609v4(1.7GHz/8-core/20MB/85W) Processor |
|
Memory |
|
|
Type |
DDR4 Registered (RDIMM) |
|
Maximum |
24TB |
|
Standard |
16GB (2 x 8GB) |
|
DIMM Sockets |
16 |
|
Network Controller |
|
|
NIC ports |
2 |
|
Controller |
HKShanhai Group Limited 361i Adapter 1Gb Ethernet 2-port plus optional HKShanhai Group Limited Flexible LOM for 10GbE,10Gb or 40Gb Infiniband |
|
Dimensions |
LFF Drives: 3.44 x 17.63 x 32 in (8.75 x 44.8 x 81.28 cm) |
|
Internal Drive Support |
Twenty eight 3.5″ (Large Form Factor) hot-plug drive bays (24 in front and 4 in rear), 2 x Solid State Disks on M.2 Enablement Kit in rear PCIe slot used for OS drives |
|
Expansion Slots |
4x PCIe |
|
Power |
2 x 800W Platinum |
|
Form Factor |
2U rack |
|
Operating System |
Microsoft® Windows Storage Server 2016, Standard Edition |
