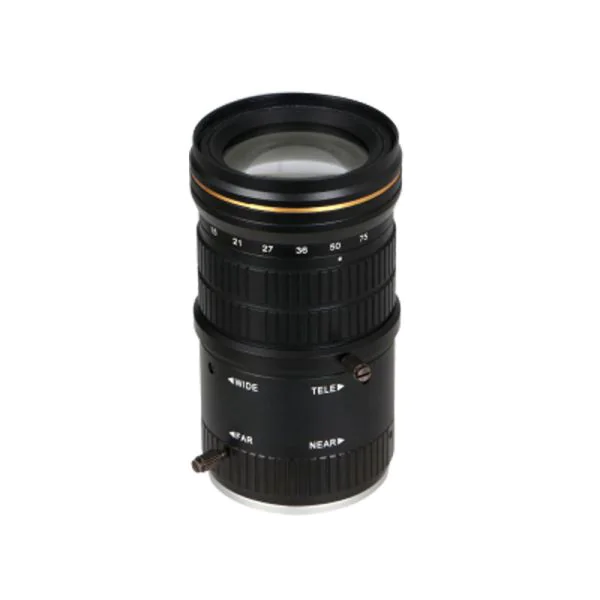

The Dahua PFL1575-A12D is a high-quality 12 MP vari-focal lens designed for superior imaging performance. Featuring a 1/1.7″ sensor and a 15-75mm focal length, this lens is ideal for capturing detailed images in various surveillance settings. Its advanced optical design ensures clarity and low distortion, making it perfect for demanding applications.
Quick Spec
| Brand | Dahua |
| Model | PFL1575-A12D |
| Resolution | 12 MP |
| Focal Length | 15-75mm |
| Sensor Size | 1/1.7″ |
Product Features
- High-resolution 12 MP imaging for detailed surveillance.
- Wide 15-75mm vari-focal lens for flexible coverage.
- Advanced optical design for high clarity and low distortion.
- Compatible with a range of Dahua network cameras.
- Reliable performance in various lighting conditions.
Product Applications
- Commercial and retail surveillance for increased security.
- Public space monitoring in airports, stations, and malls.
- High-resolution imaging for critical infrastructure protection.
Supported Options
| Accessory | Model |
| Mounting Bracket | PFA123 |
| Lens Controller | LC100 |
| Sunshield | SH75 |
Compare to Similar Items
| Model | Difference |
| HFW1230S | Lower resolution (2 MP) |
| PFL3960-A50D | Different focal length (10-50mm) |
| IPC-HF81230E | No vari-focal lens |
Get more information
For further details about the Dahua PFL1575-A12D and its pricing, please contact us via Live Chat or email us at sales@router-switch.com.
Dahua PFL1575-A12D Specification
PFL1575-A12D Specifications |
|
| Brand | Dahua |
| Model | PFL1575-A12D |
| Image Sensor | 12 MP 1/1.7″ |
| Lens Type | Vari-focal |
| Focal Length | 15-75mm |
| Aperture Range | F1.5 – F1.8 |
| Field of View | 29-123 degrees |
| Focus Type | Manual |
| Minimum Object Distance | 1.5 meters |
| Lens Mount | C-Mount |
| Iris Type | Auto Iris |
| IR Correction | Yes |
| Optical Coating | Multi-layer |
| Operating Temperature | -10°C to 60°C |
| Dimensions | 123.8mm x 69.8mm x 69.8mm |
| Housing Material | Aluminum |
| Color | Black |
| Power Supply | 12V DC / 24V AC |
| Power Consumption | 4W max |
| Mounting Type | Fixed Mount |
| Application | Surveillance |
