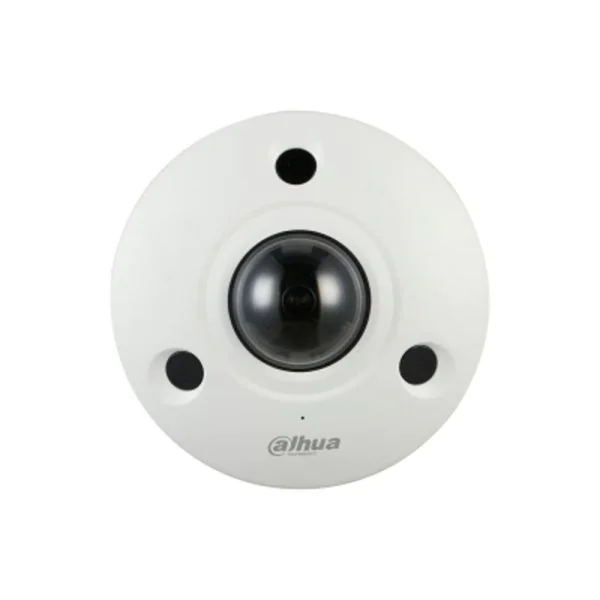

The Dahua IPC-EBW81242 is a high-resolution 12MP Panoramic Network IR Fisheye Camera, designed to provide exceptional image quality and coverage. This advanced camera is perfect for monitoring large areas with its panoramic view and built-in infrared capabilities, ensuring reliable surveillance day and night.
Quick Spec
| Resolution | 12 Megapixels |
| Lens Type | Fisheye |
| Field of View | 360panoramic |
| Infrared Range | Up to 10 meters |
| Power Supply | PoE (Power over Ethernet) |
Product Features
- 12MP high-resolution imaging for detailed clarity.
- Fisheye lens providing a 360panoramic view.
- Smart IR technology for optimal illumination at night.
- Built-in microphone for audio recording.
- Weather-resistant design for outdoor use (IP67-rated).
Product Applications
- Retail stores for complete floor coverage.
- Transportation hubs such as airports and train stations for comprehensive surveillance.
- Public spaces and parks for monitoring large open areas.
Supported Options
| Wall Mount Bracket | PFB203W |
| Ceiling Mount Bracket | PFB203C |
| Junction Box | PFM320D |
Compare to Similar Items
| Model | Dahua IPC-EBW81242 | Dahua IPC-HDBW8331E-Z | Dahua IPC-HDW5431R-Z |
| Resolution | 12MP | 4K | 4MP |
| Field of View | 360panoramic | 113horizontal | 98horizontal |
| Lens Type | Fisheye | Motorized zoom | Motorized zoom |
| Infrared Range | Up to 10 meters | Up to 50 meters | Up to 30 meters |
| Special Feature | Panoramic view | Intelligent detection | Compact design |
Get more information
For further information about the Dahua IPC-EBW81242 and its pricing, please contact us through Live Chat or email us at sales@router-switch.com.
Dahua EBW81242 (only for project) Specification
IPC-EBW81242 (only for project) Specifications |
|
| Brand | Dahua |
| Camera Type | Panoramic Network IR Fisheye Camera |
| Image Sensor | 1/1.712MP Progressive Scan CMOS |
| Resolution | 12MP (4000 x 3000) |
| Lens Type | Fisheye |
| Max. IR Distance | 10 meters (33 feet) |
| IR LEDs | 3 LEDs |
| Video Frame Rate | 25/30 fps @ 12M |
| Compression | H.265, H.264, MJPEG |
| Audio Interface | 1/1 channel In/Out |
| Micro SD Slot | Up to 128GB |
| Power Supply | DC12V, PoE (802.3af) |
| Power Consumption | < 8W |
| Operating Temperature | -30C ~ +60C (-22F ~ +140F) |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Dimensions (mm) | 164.8 x 50.6 |
| Network Interface | 1 RJ-45 (10/100 Base-T) |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, SMTP, FTP, DHCP, DNS, DDNS, RTP, RTCP, NTP, SNMP, IGMP, 802.1X, QoS, UPnP, Bonjour, ONVIF |
| Day/Night | ICR |
