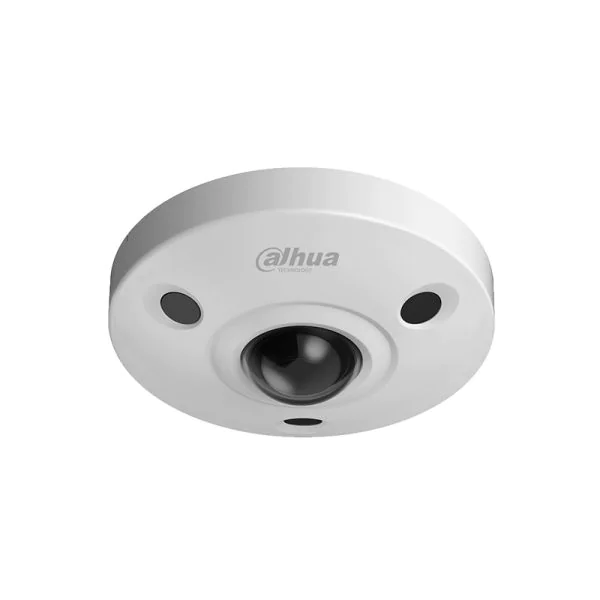

The Dahua NK8BR4 12MP IR 360 Panoramic IP Fisheye camera is a high-resolution surveillance solution designed to deliver comprehensive monitoring with its fisheye lens. This advanced IP camera ensures detailed coverage and superior image quality in various environments with its impressive 12MP resolution and infrared capabilities.
Quick Spec
| Brand | Dahua |
| Model | NK8BR4 |
| Resolution | 12MP |
| IR Range | Up to 10 meters |
| Viewing Angle | 360 Fisheye |
Product Features
- 360 panoramic view with fisheye lens
- 12MP high resolution for detailed images
- Infrared night vision up to 10 meters
- IP66 weather-resistant rating for outdoor use
- Advanced motion detection and real-time alerts
Product Applications
- Retail stores: Comprehensive coverage of sales floors for loss prevention and customer behavior analysis.
- Office buildings: Monitoring common areas, entry points, and large spaces without blind spots.
- Parking lots: Enhanced security with wide-area surveillance and night vision capabilities.
Supported Options
| Accessory | Model |
| Mounting Bracket | PFB302S |
| Power Supply Adapter | PFM320D |
| Wall Mount | PFB203W |
Compare to Similar Items
| Model | Differences |
| Dahua N45BL3 | 4MP, narrower viewing angle |
| Dahua DH-IPC-HDBW5442E-Z | 4MP, motorized lens |
| Dahua IPC-HDBW5831R-ZE | 8MP, no fisheye lens |
Get more information
Get more information about the Dahua NK8BR4, including its price and datasheet. Check ‘Dahua NK8BR4’ price and ‘NK8BR4 datasheet’, buy ‘Dahua NK8BR4 Panoramic IP Fisheye’ with best price and fast shipping. Free Live Chat is supported. Contact through Live Chat or email at sales@router-switch.com for further inquiries about the product and its price.
Dahua NK8BR4 Specification
NK8BR4 Specifications |
|
| Brand | Dahua |
| Model | NK8BR4 |
| Image Sensor | 1/1.7″ Progressive Scan CMOS |
| Effective Pixels | 12 Megapixels |
| Resolution | 4000��3000 |
| Lens Type | Fisheye |
| Field of View | 360�� panoramic |
| IR Distance | Up to 10 meters |
| Day/Night | Auto(ICR)/Color/B/W |
| Noise Reduction | 3D DNR |
| Backlight Compensation | BLC / HLC / WDR(120dB) |
| Compression | H.265/H.264 |
| Audio Compression | AAC (Advanced Audio Coding) |
| Network Protocols | IPv4/IPv6, HTTP, HTTPS, TCP/IP, UDP, NTP, DHCP, DNS, RTP, RTSP, RTCP, PPPoE, SMTP, SNMP, IGMP, ICMP, ARP, RTMP, NFS, SMB (CIFS), ONVIF 16.12 |
| Ethernet | 1 RJ-45 (10/100/1000 Base-T) |
| Storage | Micro SD card slot, up to 128GB |
| Ingress Protection | IP67 |
| Power Supply | DC12V, PoE (802.3af) |
| Operating Conditions | -30��C ~ +60��C, < 95% RH |
| Dimensions | ��164.8mm �� 72.9mm |
