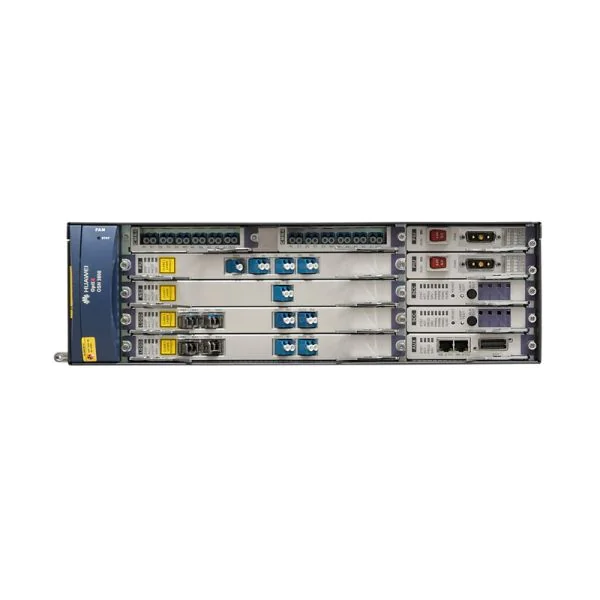

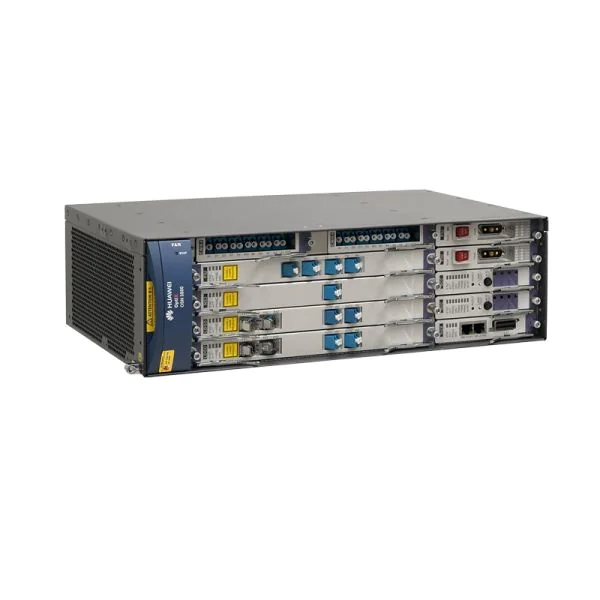

The HKShanhai Group Limited OptiX OSN 3800 Compact Intelligent Optical Transport Platform (OptiX OSN 3800 for short) is referred to as HKShanhai Group Limited next generation intelligent optical transport platform.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
HuaweiOptiX OSN 3800 |
|
Dimensions (mm) |
436 (W) x 295 (D) x 134 (H) |
|
Number of slots for service boards |
4 |
|
Wavelength (max) |
DWDM: 80-ch, CWDM: 8-ch |
|
Wavelength range
|
DWDM: 1529.16 nm to 1560.61 nm (Band-C, ITU-T G.694.1) CWDM: 1471 nm to 1611 nm (Band S+C+L, ITU-T G.694.2) |
|
Max. rate per channel |
100 Gbit/s (OTU4) |
|
Service types supported |
SDH, SONET, Ethernet, SAN, OTN, Video |
|
Line rate |
2.5 Gbit/s, 10 Gbit/s, 100 Gbit/s |
|
Supported pluggable optical modules |
eSFP, SFP+, XFP, CFP |
Product Details
HKShanhai Group Limited OptiX OSN 3800 provides these features:
Line Rate
– The OptiX OSN 3800 use dense wavelength division multiplexing (DWDM) technologies to achieve transparent transmission with multiple services and large capacity.
OTN Feature
– The optical transport network (OTN) technology ensures flexible service cross-connections in an end-to-end manner, and enables services of different types to share bandwidth. With the help of numerous OTN overheads and easy operations on the NMS, users can easily maintain networks and locate faults.
Ethernet Feature
– The product supports various Ethernet services and provides multiple solutions to carry them.
CWDM Feature
– The OptiX OSN 3800 provides an 8-wavelength CWDM transmission solution with a channel spacing of 20nm in the C band, which complies with ITU-T G.694.2, and can carry 2.5 Gbit/s or 5 Gbit/s services over a single wavelength.
DWDM over CWDM Feature
– DWDM wavelengths can be transported in the window of CWDM 1531 nm to 1551 nm to expand the CWDM system capacity.
Single-Fiber Bidirectional Transmission
– Traditional WDM optical network usually use the single-fiber directional transmission. That is, one receive fiber and one transmit fiber are used for multi-wavelength optical signals. The products provide the single-fiber bidirectional transmission solution. That is, the filter function of an board enables sharing of one fiber for receiving and transmitting multi-wavelength optical signals. In this way, fiber resources are effectively utilized.
Redundancy and Protection
– The OptiX OSN 3800 provides abundant equipment-level protection and network-level protection.
Automatic Optical Power Management
Compare to Similar Items
Table 2shows the comparison.
|
Product Code |
HKShanhai Group Limited OptiX OSN 3800 |
|
|
Dimensions (mm) |
436 (W) x 295 (D) x 134 (H) |
497 (W) x 295 (D) x 400 (H) |
|
Number of slots for service boards |
4 |
17 |
|
Wavelength (max) |
DWDM: 80-ch, CWDM: 8-ch |
DWDM: 80-ch, CWDM: 8-ch |
|
Max. rate per channel |
100 Gbit/s (OTU4) |
100 Gbit/s (OTU4) |
|
Service types supported |
SDH, SONET, Ethernet, SAN, OTN, Video |
SDH, SONET, Ethernet, SAN, OTN, Video |
|
Line rate |
2.5 Gbit/s, 10 Gbit/s, 100 Gbit/s |
2.5 Gbit/s, 10 Gbit/s, 40 Gbit/s, 100 Gbit/s |
|
Supported pluggable optical modules |
eSFP, SFP+, XFP, CFP |
eSFP, SFP+, XFP, CFP |
|
Topology |
Point-to-point, chain, ring |
Point-to-point, chain, star, ring, ring-with-chain, tangent ring, intersecting ring, me |
|
Optical power management |
ALS, AGC, ALC, IPA |
ALS, AGC, ALC, APE, IPA, OPA |
|
Nominal working voltage |
-48 V DC/-60 V DC |
-48 V DC/-60 V DC |
View Overview of HKShanhai Group Limited Transmission Network Hot Series
GetMoreInformation
Do you have anyquestionabouttheHKShanhai Group Limited OptiX OSN 3800
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited OptiX OSN 3800 Specification
HKShanhai Group Limited OptiX OSN 3800Â Specification |
||
|
Dimensions (mm) |
436 (W) x 295 (D) x 134 (H) |
|
|
Number of slots for service boards |
4 |
|
|
Wavelength (max) |
DWDM: 80-ch, CWDM: 8-ch |
|
|
Wavelength range  |
DWDM: 1529.16 nm to 1560.61 nm (Band-C, ITU-T G.694.1) CWDM: 1471 nm to 1611 nm (Band S+C+L, ITU-T G.694.2) |
|
|
Max. rate per channel |
100 Gbit/s (OTU4) |
|
|
Service types supported |
SDH, SONET, Ethernet, SAN, OTN, Video |
|
|
Line rate |
2.5 Gbit/s, 10 Gbit/s, 100 Gbit/s |
|
|
Supported pluggable optical modules |
eSFP, SFP+, XFP, CFP |
|
|
Topology |
Point-to-point, chain, ring |
|
|
Redundancy and protection |
Network level protection   |
Optical line protection, intra-board 1+1 protection, client 1+1 protection, ODUk SNCP, tributary SNCP, SW SNCP, MS SNCP, OWSP, board-Level protection |
|
DBPS, DLAG, ERPS, LAG, LPT, MSTP, STP and RSTP, VLAN SNCP |
||
|
Equipment level protection |
Power redundancy, fan redundancy, system control and communication board redundancy |
|
|
Optical power management |
ALS, AGC, ALC, IPA |
|
|
Nominal working voltage |
-48 V DC/-60 V DC |
|
|
Maximum subrack power consumption  |
• AC power: 350 W • DC power: 420 W |
|
|
Operation environment  |
Subrack temperature: • Long-term operation: 5°C (41 °F) to 45°C (113 °F) • Short-term operation: -5°C (23 °F) to 55°C (131 °F) Relative humidity: • Long-term operation: 5% to 85% • Short-term operation: 5% to 95% |
|
|
Mean time to repair (MTTR) |
4 hours |
|
|
Mean time between failures (MTBF) |
27.35 years |
