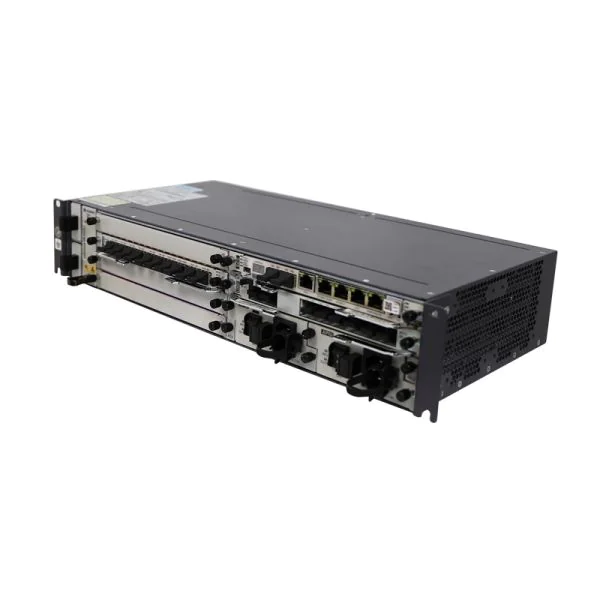

The HKShanhai Group Limited OptiXOSN 1800 is a new-generation packet enhanced multi-service optical transport platform that supports unified switching of OTN/PKT/SDH services and access of any 2M to 100G services such as Ethernet, TDM, and private line services. It supports installation in a 19-inch or ETSI cabinet, uses AC or DC power supplies, and features easy deployment and high environmental suitability. In addition, it provides various network-level service protection schemes.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
HuaweiOptiX OSN 1800 II Compact |
|
Dimensions (mm) |
88 x 442 x 220 (H x W x D) (excluding mounting ears) |
|
Number of service board slots |
DC chassis: 7 AC chassis: 5 |
|
Wavelength |
DWDM: 80-wavelength DWDM system CWDM: 8-wavelength CWDM system |
|
Maximum rate per channel |
200 Gbit/s |
|
Supported service type |
SDH/SONET, PDH, OTN, Ethernet, CPRI, OBSAI, SAN, video, and others |
Product Details
HKShanhai Group Limited OptiX OSN 1800 II Compact provides these features:
Unified transmission
– Encapsulates all services, from low-bandwidth services (such as FE services) to high-bandwidth services, into OTN frames for unified transmission.
Unified management
– Manages and maintains SDH and WDM/OTN equipment using a single NMS.
Easy deployment
– Features compact design, high integration, and easy deployment.
Compare to Similar Items
Table 2shows the comparison.
|
Product Code |
HKShanhai Group Limited OptiX OSN 1800 II Compact |
||||
|
Dimensions (mm) |
44 x 442 x 220 (H x W x D) (excluding mounting ears) |
44 x 442 x 220 (H x W x D) (excluding mounting ears) |
88 x 442 x 220 (H x W x D) (excluding mounting ears) |
88 x 442 x 220 (H x W x D) (excluding mounting ears) |
221 x 442 x 224 (H x W x D) (excluding mounting ears) |
|
Number of service board slots |
DC chassis: 3 AC chassis: 1 |
2 |
DC chassis: 7 AC chassis: 5 |
6 |
DC chassis: 15 AC chassis: 12 |
|
Maximum rate per channel |
200 Gbit/s |
10 Gbit/s |
200 Gbit/s |
200 Gbit/s |
200 Gbit/s |
|
Supported service type |
SDH/SONET, PDH, OTN, Ethernet, CPRI, OBSAI, SAN, video, and others |
SDH services: STM-1/4/16/64 PDH services: E1, T1, E3, and T3 ETH services: FE (optical/electrical), GE (optical/electrical), and 10GE |
SDH/SONET, PDH, OTN, Ethernet, CPRI, OBSAI, SAN, video, and others |
SDH service (STM-1/4/16/64), PDH service (E1/T1/E3/T3/E4) OTN service (OTU1/2/2e/4), Ethernet service (FE/GE/10GE/40GE/100GE) CPRI service, OBSAI service, PCM service SAN service, video, and others |
SDH service (STM-1/4/16/64), PDH service (E1/T1/E3/T3/E4), OTN service (OTU1/2/2e/4), Ethernet service (FE/GE/10GE/40GE/100GE), PCM service, CPRI service, OBSAI service, SAN service, video, and others |
|
Synchronization |
Physical-layer clock (OTN&SDH) IEEE 1588v2 (OTN) ITU-T G.8275.1/G.8273.2 (OTN) |
Physical-layer clock (OTN&packet&SDH) |
Physical-layer clock (OTN&SDH) IEEE 1588v2 (OTN) ITU-T G.8275.1/G.8273.2 (OTN) |
Physical-layer clock (OTN&packet&SDH) IEEE 1588v2 (OTN&packet) ITU-T G.8275.1/G.8273.2 (OTN&packet) |
Physical-layer clock (OTN&packet&SDH) IEEE 1588v2 (OTN&packet) ITU-T G.8275.1/G.8273.2 (OTN&packet) |
|
Power supply |
DC power input Standard operating voltage: �C48 V DC/�C60 V DC Operating voltage range: �C48 V DC: �C40 V to �C57.6 V �C60 V DC: �C48 V to �C72 V AC power input Standard operating voltage: 110 V AC/220 V AC Operating voltage range: 100 V AC to 240 V AC |
DC power input Standard operating voltage: �C48 V DC/�C60 V DC Operating voltage range: �C48 V DC: �C40 V to �C57.6 V �C60 V DC: �C48 V to �C72 V AC power input Standard operating voltage: 110 V AC/220 V AC Operating voltage range: 100 V AC to 240 V AC |
DC power input Standard operating voltage: �C48 V DC/�C60 V DC Operating voltage range: �C48 V DC: �C40 V to �C57.6 V �C60 V DC: �C48 V to �C72 V AC power input Standard operating voltage: 110 V AC/220 V AC Operating voltage range: 100 V AC to 240 V AC |
DC power input Standard operating voltage: �C48 V DC/�C60 V DC |
DC power input: standard operating voltage: �C48 V DC/�C60 V DC AC power input: standard operating voltage: 110 V AC/220 V AC |
View Overview of HKShanhai Group Limited Transmission Network Hot Series
GetMoreInformation
Do you have anyquestionabouttheHKShanhai Group Limited OptiX OSN 1800 II Compact
Contact us now via Live Chat or sales@router-switch.com.
HKShanhai Group Limited OptiX OSN 1800 II Compact Specification
HKShanhai Group Limited OptiX OSN 1800 II Compact Specification |
||
|
Dimensions (mm) |
88 x 442 x 220 (H x W x D) (excluding mounting ears) |
|
|
Number of service board slots |
DC chassis: 7Â AC chassis: 5Â |
|
|
Crossconnection |
Optical layer |
1-degree to 9-degree ROADM |
|
Electrical layer |
• Inter-board cross-connection: supports cross-connections of Any services at a rate lower than 1.25 Gbit/s and 10GE LAN services. • Intra-board cross-connection: supports cross-connections of Any services at a rate lower than 2.5 Gbit/s and VC-4 or VC-12 and ODU0/ODU1/ODUflex/ODU2/ODU4 services. |
|
|
Wavelength |
• DWDM: 80-wavelength DWDM system • CWDM: 8-wavelength CWDM system |
|
|
Maximum rate per channel |
200 Gbit/s |
|
|
Supported service type |
SDH/SONET, PDH, OTN, Ethernet, CPRI, OBSAI, SAN, video, and others |
|
|
Redundancy and protection |
Equipment-level protection |
Power supply backup and fan backup |
|
Network-level protection (OTN) |
Optical line protection, intra-board 1+1 protection, client 1+1 protection, ODUk SNCP, SW SNCP, and LPT |
|
|
Network level protection (Ethernet) |
ERPS, LAG, service-based LPT, MSTP, STP, RSTP, and VLAN SNCP |
|
|
Synchronization |
• Physical-layer clock (OTN&SDH) • IEEE 1588v2 (OTN) • ITU-T G.8275.1/G.8273.2 (OTN) |
|
|
Power supply |
DC power input • Standard operating voltage: ??span>48 V DC/??/span>60 V DC • Operating voltage range: ??span>48 V DC: ??/span>40 V to ??/span>57.6 V ??span>60 V DC: ??/span>48 V to ??/span>72 V AC power input • Standard operating voltage: 110 V AC/220 V AC • Operating voltage range: 100 V AC to 240 V AC |
|
|
Installation mode  |
• ETSI 300 mm deep cabinet, such as N63E, N63B, and A63B  • Wall-mounted |
