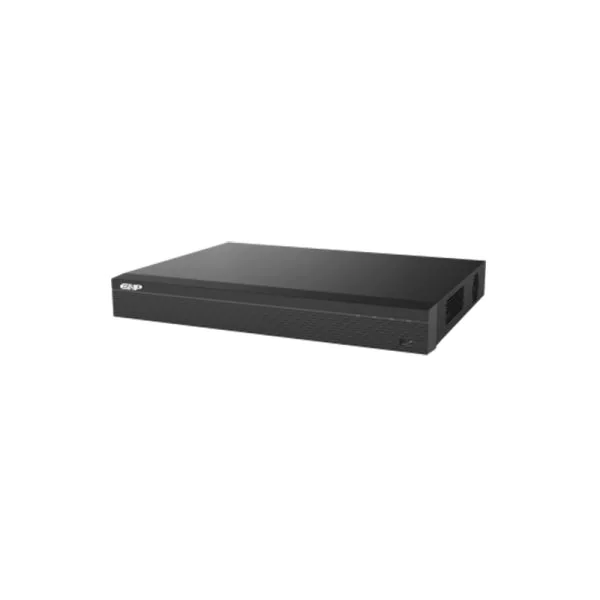

The Dahua NVR2B16 is a cutting-edge, 16-channel 1U H.265 Network Video Recorder designed to deliver high-quality and efficient video surveillance solutions. Ideal for both small to medium businesses, this NVR provides superior video clarity while optimizing bandwidth usage. Its advanced functionality and robust design ensure reliability and ease of use, making it a go-to choice for security professionals.
Quick Spec
| Brand | Dahua |
| Model | NVR2B16 |
| Channels | 16 |
| Video Compression | H.265 |
| Form Factor | 1U |
Product Features
- Supports up to 16 IP cameras
- Efficient H.265 video compression technology
- 1U rack-mountable chassis design for space-saving installation
- Simultaneous HDMI/VGA video output
- Remote monitoring through Dahua’s secure mobile application
Product Applications
- Retail Stores: Monitor customer activity, prevent theft, and ensure safety.
- Office Buildings: Enhance security measures and keep records of entry/exit points.
- Warehouses: Safeguard inventory and oversee loading/unloading areas.
Supported Options
| Accessory | Model |
| External Hard Disk | DH-HDD500GB |
| IP Camera | IPC-HFW1320S |
| PoE Switch | PFS3110-8P-96 |
Compare to Similar Items
| Model | Difference |
| Dahua NVR2B8 | 8 Channels, smaller storage capacity |
| Dahua NVR2B32 | 32 Channels, higher storage capacity |
| Dahua NVR4B16 | 4K support, higher bandwidth requirement |
Get more information
For further information about the Dahua NVR2B16 and its pricing, please contact us through Live Chat or email at sales@router-switch.com. Check Dahua NVR2B16 price and NVR2B16 datasheet, buy Dahua NVR2B16 Network Video Recorder with best price and fast shipping. Free Live Chat is supported.
Dahua NVR2B16 Specification
NVR2B16 Specifications |
|
| Brand | Dahua |
| Model | NVR2B16 |
| Number of Channels | 16 |
| Rack Unit | 1U |
| Video Compression | H.265 |
| Maximum Resolution | 12MP |
| Decoding Capability | 2-ch@12MP/8-ch@1080P/16-ch@720P |
| Hard Disk Slots | 2 SATA ports, up to 10TB capacity |
| Network Bandwidth | Incoming: 320 Mbps, Outgoing: 256 Mbps |
| USB Ports | 2 (1 USB 2.0, 1 USB 3.0) |
| HDMI Output | 1 (4K) |
| VGA Output | 1 |
| Power Supply | DC 12V/4A |
| Operating Temperature | -10��C to 55��C (14��F to 131��F) |
| Power Consumption | <15W (without HDD) |
| Dimensions | 375mm �� 282mm �� 53mm (14.8″ �� 11.1″ �� 2.1″) |
| Ethernet Ports | 2 RJ-45 Ports (10/100/1000 Mbps) |
| Storage Type | Internal SATA |
| Alarm In/Out | 16 Channel In / 6 Channel Out |
| Audio In/Out | 1 Channel In / 1 Channel Out |
