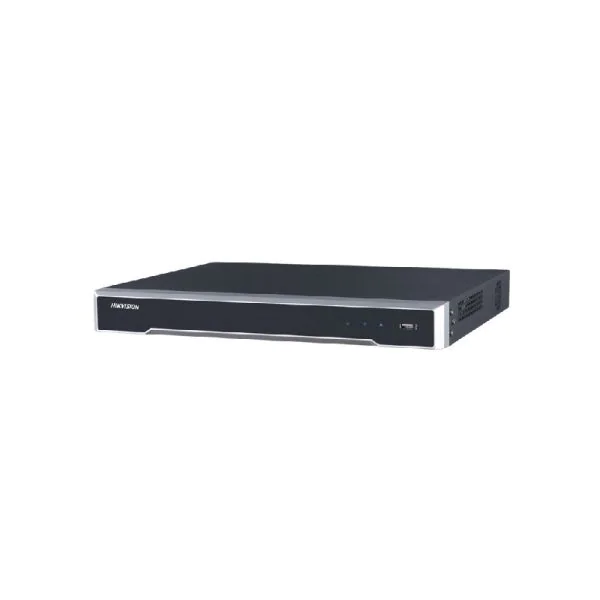

The Hikvision DS-7616NI-Q2 is a powerful and versatile 16-channel NVR with advanced 4K video capabilities, optimized for both performance and reliability. This 1U rack-mountable network video recorder is designed to meet the demands of professional surveillance systems, providing robust video management and storage solutions for diverse security environments.
Quick Spec
| Channels | 16 |
| Resolution | 4K |
| HDMI Output | 1 |
| Alarm In/Out | 16/4 |
| Network Ports | 2 |
Product Features
- Support for up to 16-channel IP cameras.
- 4K Ultra HD recording and playback.
- Dual Gigabit Ethernet ports for high-speed data transmission.
- H.265+ video compression for efficient storage utilization.
- 16 alarm inputs and 4 alarm outputs for enhanced security control.
Product Applications
- Large-scale commercial properties requiring comprehensive video monitoring.
- Public infrastructure installations such as airports and train stations in need of reliable surveillance systems.
- High-security environments like banks and government buildings that demand advanced storage and playback capabilities.
Supported Options
| Hard Drive | WD Purple 4TB HDD |
| POE Switch | D-Link DGS-1210-28P |
| UPS | APC Back-UPS Pro 1500VA |
Compare to Similar Items
| Hikvision DS-7616NI-K2 | Supports only 2 SATA interfaces instead of 4 |
| Hikvision DS-7608NI-Q2 | 8 channels instead of 16 |
| Dahua NVR5216-16P-I | 16 built-in POE ports but no 4K output |
Get more information
Check Hikvision DS-7616NI-Q2 price and DS-7616NI-Q2 datasheet, buy Hikvision DS-7616NI-Q2 NVR with best price and fast shipping. Free Live Chat are supported. For further details and inquiries, please contact us through Live Chat or sales@router-switch.com.
Hikvision DS-7616NI-Q2 Specification
DS-7616NI-Q2 Specifications |
|
| Brand | Hikvision |
| Model | DS-7616NI-Q2 |
| Input Channels | 16 channels |
| Maximum Resolution | 4K |
| Video Output | HDMI and VGA |
| Video Compression | H.265, H.264 |
| Audio Input/Output | 1/1 |
| Network Interface | 1 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interface |
| USB Ports | 2 USB 2.0 |
| Hard Drive Bays | 2 SATA interfaces |
| Maximum Hard Drive Capacity | Up to 6TB for each disk |
| Power Supply | 12V DC |
| Power Consumption | 15W (without HDD) |
| Operating Temperature | -10 ��C to +55 ��C |
| Dimensions | 385 mm �� 315 mm �� 52 mm |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Audio Bit Rate | 64 Kbps |
| Recording Resolution | Up to 8 MP |
| Protocols | TCP/IP, DHCP, Hik-Connect |
| Playback | 16-ch synchronous playback |
| Alarm I/O | 4/1 |
