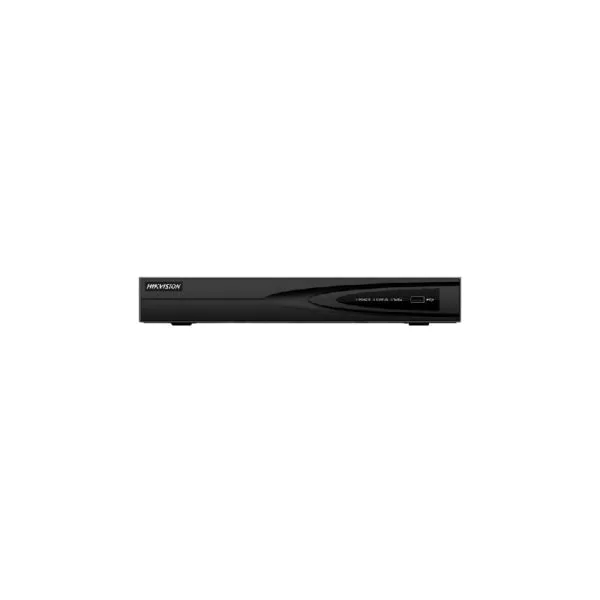

The Hikvision DS-7616NI-Q1 is a 16-channel, 1U 4K Network Video Recorder (NVR) that delivers efficient and reliable video surveillance solutions. It supports ultra-high definition recording and playback, making it a perfect choice for both residential and commercial applications where detailed video monitoring is critical.
Quick Spec
| Brand | Hikvision |
| Model | DS-7616NI-Q1 |
| Channels | 16 |
| Form Factor | 1U |
| Video Output Resolution | 4K |
Product Features
- Supports up to 16 IP camera inputs
- Ultra-high definition video output with 4K resolution
- H.265+/H.265/H.264+/H.264 video formats
- Dual-OS design ensures high reliability
- HDMI and VGA simultaneous output
Product Applications
- Large commercial complexes requiring extensive video surveillance
- High-security zones needing ultra-HD recording, such as banks and jewelry stores
- Residential buildings where comprehensive video monitoring is needed
Supported Options
| External Hard Drive | Hikvision DS-HD51200 |
| Network Camera | Hikvision DS-2CD2347G1-LU |
| PoE Switch | Hikvision DS-3E0518P-E |
Compare to Similar Items
| Model | Differences |
| DS-7608NI-Q1 | Supports 8 channels, 1U form factor, lower capacity |
| DS-7632NI-I2 | Supports 32 channels, 2U form factor, higher scalability |
| DS-7604NI-K1 | Supports 4 channels, compact design, ideal for small setups |
Get more information
For further information about the Hikvision DS-7616NI-Q1, please contact us via Live Chat or email at sales@router-switch.com. Check “Hikvision DS-7616NI-Q1” price and “DS-7616NI-Q1 datasheet”, buy “Hikvision DS-7616NI-Q1 NVR” with best price and fast shipping. Free Live Chat support is available.
Hikvision DS-7616NI-Q1 Specification
DS-7616NI-Q1 Specifications |
|
| Brand | Hikvision |
| Product Name | DS-7616NI-Q1 |
| Video/Audio Input | 16-ch |
| Video Compression | H.265/H.264 |
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| HDMI Output | 4K (3840 x 2160) |
| VGA Output | 1920 x 1080 |
| Compression standard | H.265+/H.265/H.264+/H.264 |
| Hard Disk | 2 SATA interfaces |
| Max Capacity | Up to 10 TB capacity for each disk |
| Network Interfaces | 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| USB Interface | 2 x USB 2.0 |
| Power Supply | 12 V DC |
| Consumption (without hard disks) | �� 15 W |
| Working Temperature | -10�� C to +55�� C |
| Working Humidity | 10% to 90%, non-condensing |
| Dimension (W x D x H) | 315 x 240 x 48 mm |
| Recorder Chassis | 1U |
| Warranty | 3 Years |
