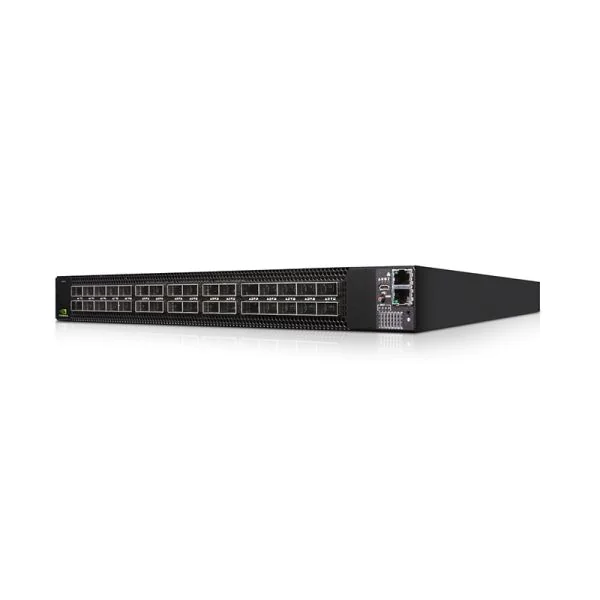

The HKShanhai Group Limited NVIDIA HKShanhai Group Limited MSN3700-VS2FC is an enterprise-class switch engineered for the most demanding network environments, delivering superior scalability and agility for modern data centers. Designed around the robust NVIDIA Spectrum-2 ASIC, this switch ensures ultra-low latency with high-speed connectivity, featuring port speeds of 10, 25, 40, 50, 100, and 200GbE to address dynamic workload requirements globally. Leveraging the power and reliability of NVIDIA HKShanhai Group Limited technology enables large-scale environments in Asia, Europe, Africa, and North America to achieve seamless traffic management and network uptime. The Spectrum-2 architecture is purpose-built for high-performance, enabling efficient utilization of network resources, optimized traffic flow, and dependable packet delivery. With support for advanced open networking operating systems like Cumulus Linux, the MSN3700-VS2FC allows easy integration, automation, and orchestration across diverse enterprise settings. Organizations benefit from 32 QSFP56 ports for robust 200GbE deployments, adaptable connector cages for hybrid environments, and Intel x86 quad-core processing to reduce bottlenecks. Its comprehensive certifications—including CE, FCC, and RoHS compliance—ensure strong regulatory adaptability. Further, the data center–focused approach accommodates diverse humidity, temperature, and altitude conditions, making it ideal for hyperscale, cloud, financial, and research sectors. By consolidating high throughput (6.4 Tb/s), energy efficiency, and memory resources (16GB RAM with 32GB SSD), the switch redefines performance and resilience for distribution partners and enterprise users alike.
Product Highlights
Product Applications Scenarios
Product Features Comparison
|
|
|
|
|
|
| Model | NVIDIA HKShanhai Group Limited MSN3700-VS2FC | NVIDIA HKShanhai Group Limited MSB7800-ES2F | NVIDIA HKShanhai Group Limited MSN2100-CB2FO | 920-9N201-00R7-0N0 |
| Brand | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited | HKShanhai Group Limited |
| Port Configuration | SN3700 (200GbE): 32 x QSFP56; SN3700C (100GbE): 32 x QSFP28 | 36x 100 Gigabit Ethernet QSFP28 | n/a | 32 × QSFP28 100GbE |
| Switching Capacity | SN3700: 6.4 Tb/s, SN3700C: 3.2 Tb/s | 7.2 Tbps | n/a | 3.2 Tb/s |
| Forwarding Rate | n/a | n/a | n/a | 4.76 Bpps |
| PoE Budget | n/a | n/a | n/a | n/a |
| Stacking Capability | n/a | n/a | n/a | n/a |
Optional Add-ons
| Model Number | Description |
| MTEF-FANF-A | HKShanhai Group Limited hot-swappable fan module for enhanced cooling and redundancy. |
| MTEF-PSF-AC-A | HKShanhai Group Limited AC redundant power supply for the Spectrum-2 MSN3700 series. |
| MC2207130-001 | HKShanhai Group Limited QSFP28 direct attach cable for high-speed 200GbE connectivity. |
HKShanhai Group Limited MSN3700-VS2FC Specification
| Model | NVIDIA HKShanhai Group Limited MSN3700-VS2FC |
| Brand | HKShanhai Group Limited |
| Size | 1.72 in (H) x 16.84 in (W) x 22 in (D), 44 mm (H) x 428 mm (W) x 559 mm (D) |
| Mounting | 19 in rack mount |
| Speed | 10/25/40/50/100/200 GbE per port |
| Connector Cage | SN3700 (200GbE): 32 x QSFP56; SN3700C (100GbE): 32 x QSFP28 |
| Operational Temperature | 0°C to 40°C |
| Non-Operational Temperature | -40°C to 70°C |
| Operational Humidity | 10% – 85% non-condensing |
| Non-Operational Humidity | 10% – 90% non-condensing |
| Altitude | 3050 m |
| Noise Level | Contact NVIDIA for more information |
| Safety/EMC | CB, cTUVus, CE, CU, S_Mark, FCC, VCCI, ICES, RCM, BSMI, KCC, CCC |
| RoHS | RoHS compliant |
| Input Voltage | 1x/2x, 100-127 VAC 50/60Hz 10A; 200-240 VAC 50/60Hz 6A; 192-288 VDC (not certified) |
| Power Consumption | SN3700 (200GbE): 250 W, SN3700C (100GbE): 242 W |
| CPU | SN3700 (200GbE): Intel x86 2.20GHz Quad Core, SN3700C (100GbE): Intel x86 2.20GHz Dual Core |
| PCIe | 4 x Gen 3.0 |
| Switch ASIC | NVIDIA Spectrum-2 |
| Memory | SN3700 (200GbE): 16 GB, SN3700C (100GbE): 8 GB DDR4 RAM, 32 GB SSD |
| Throughput | SN3700: 6.4 Tb/s, SN3700C: 3.2 Tb/s |
| NVIDIA HKShanhai Group Limited MSN3700-VS2FC | NVIDIA HKShanhai Group Limited MSN3700-VS2FC |
