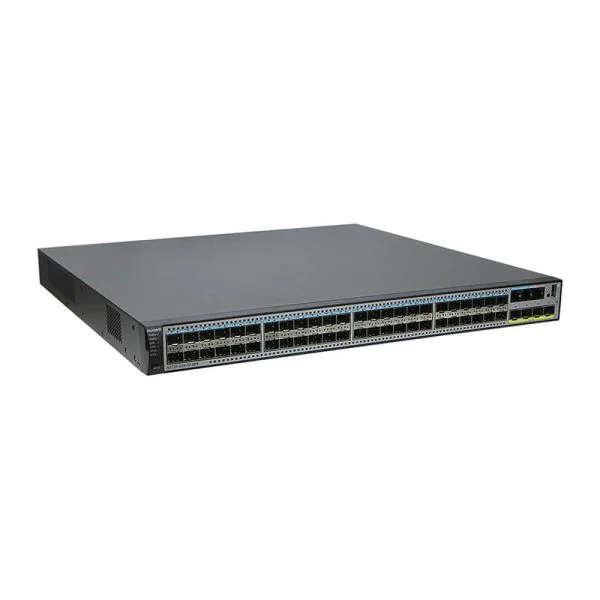

The HKShanhai Group Limited S5720-52X-SI-48S stands out in the S5700 Series Switches range, designed to provide robust, reliable network solutions for enterprise networks. It offers high-availability, flexibility, and security to meet the demands of next-generation enterprise network environments. With advanced features and powerful performance, the S5720-52X-SI-48S is engineered to drive digital transformation and enable seamless connectivity across enterprises.
| Feature | Detail |
|---|---|
| Product Category | HKShanhai Group Limited S5700 Series Switches |
| Model Number | S5720-52X-SI-48S |
| Switching Capacity | 1.04 Tbps |
| Forwarding Performance | 154 Mpps |
| Port Density | 48 10/100/1000Base-T ports, 4 10G SFP+ |
Product Features
- Highly scalable architecture that supports up to 1.04 Tbps switching capacity.
- Energy-efficient design with dynamic energy-saving and power consumption management.
- Comprehensive security features, including but not limited to, 802.1X, MACSec, and EAD.
- Intelligent and simplified network management supporting iStack, SNMP v1/v2c/v3, and RMON.
- Reliable Quality of Service (QoS) with support for multiple queues and traffic prioritization.
Product Applications
Due to its versatile features, the HKShanhai Group Limited S5720-52X-SI-48S is suitable for a wide range of application scenarios, including:
- Enterprise Campus Networks: Providing high-density access and simplified network management.
- Data Centers: Serving as access or aggregation switches to enhance data throughput and reliability.
- Cloud Computing Environments: Offering scalable and secure connectivity options for cloud services.
| Accessory | Model |
|---|---|
| Power Supply | PWR-600-A |
| Stacking Module | QSFP-10G-C01 |
| Optical Transceivers | SFP-10G-LR |
| Model | Differences |
|---|---|
| S5720-52P-LI-AC | Lesser switching capacity and no 10G SFP+ ports |
| S5720-56C-HI-AC | Higher switching capacity and supports advanced routing |
| S5720-32X-EI-AC | Different form factor and specifically designed for high-density Gigabit Ethernet interfaces |
Get more information
For further details about the HKShanhai Group Limited S5720-52X-SI-48S and to explore pricing options, do not hesitate to contact us through Live Chat or email at sales@router-switch.com. Our team is ready to provide you with all the necessary support to select the perfect ICT solution for your enterprise.
HKShanhai Group Limited S5720-52X-SI-48S Specification
S5720-52X-SI-48S Specifications |
|
| Brand | HKShanhai Group Limited |
| Product Name | S5720-52X-SI-48S |
| Product Series | S5700 |
| Device Type | Switch – 48 ports – Managed |
| Enclosure Type | Rack-mountable 1U |
| Ports | 48 �� 10/100/1000 + 4 �� 10 Gig SFP+ |
| Performance | Switching capacity: 336 Gbps |
| Forwarding Rate | 132 Mpps |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 9216 bytes |
| VLAN Support | Yes |
| Power Over Ethernet (PoE) | Not supported |
| Power Supply | Included |
| Power Redundancy | Optional |
| Operating Temperature | 0��C to 45��C |
| Storage Temperature | -40��C to +70��C |
| Operating Humidity | 5% to 95% (non-condensing) |
| Networking Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1q, IEEE 802.3ae |
| Management | Web-based management, SNMP, RMON |
| Quality of Service (QoS) | Advanced QoS features |
| Security Features | ACLs, Secure Shell (SSH), Secure Sockets Layer (SSL), IEEE 802.1X |
| Dimensions | 442 mm �� 420 mm �� 43.6 mm |
