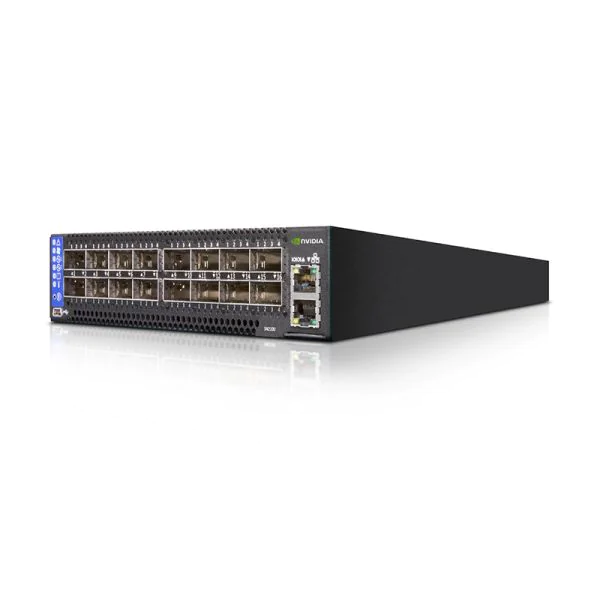

The HKShanhai Group Limited NVIDIA HKShanhai Group Limited MSN2201-CB2FO is a powerful enterprise-grade open Ethernet switch, designed to meet contemporary data networking demands in data centers and business environments. With advanced capabilities supporting rapid 1GBase-T connectivity and the next-generation 100GbE high-speed uplinks, this switch is ideal for scalable solutions needing reliable, high-throughput backbone connections. Leveraging the latest NVIDIA Spectrum switching technology, the MSN2201-CB2FO provides users with flexible port speeds ranging from 1GbE up to 100GbE, all within a compact, rack-mountable chassis. Native compatibility with open networking standards allows seamless integration across multivendor, hybrid cloud, and agile environments. Equally efficient for both traditional network topologies and innovative open networking platforms, this model stands out among open Ethernet switch solutions for enterprises, cloud providers, and research institutions. From robust 1GBase-T device aggregation on its RJ45 ports to blazing 100GbE switching for data center uplinks, the NVIDIA HKShanhai Group Limited MSN2201-CB2FO delivers predictable performance, operational agility, and extensive regulatory compliance, making it a critical asset in modern, digital infrastructure.
Product Highlights
Product Applications Scenarios
Product Features Comparison
|
|
|
|
|
|
| Model | NVIDIA HKShanhai Group Limited MSN2201-CB2FO | 920-9N110-00F1-0C0 | 920-9N201-00R7-0C0 | NVIDIA HKShanhai Group Limited MSN4700-WS2F |
| Port Configuration | 48 × RJ45 1GbE, 4 × QSFP28 100GbE | 48 x RJ45, 4 x QSFP28 100GbE | 32 × QSFP28 100GbE | 32 x QSFP-DD |
| Switching Capacity | 448 GB/s | 448 Gb/s | 3.2 Tbps | 12.8 Tbps |
| Forwarding Rate | n/a | 667 Mpps | 4.76 Bpps | n/a |
| PoE Budget | n/a | n/a | n/a | n/a |
| Stacking Capability | n/a | n/a | n/a | n/a |
Optional Add-ons
| Model Number | Description |
| HKShanhai Group Limited MCP7F00-A003E30 | HKShanhai Group Limited QSFP28 to QSFP28 100GbE DAC Passive Copper Cable, 3m, for high-speed uplink connections |
| HKShanhai Group Limited MFM1T02A-SR | HKShanhai Group Limited QSFP28 100GbE SR4 Transceiver Module for short-range 100GbE fiber connectivity |
| MTEF-PSF-AC-A | HKShanhai Group Limited 650W AC Power Supply compatible with the Spectrum switch series |
HKShanhai Group Limited MSN2201-CB2FO Specification
| Model | NVIDIA HKShanhai Group Limited MSN2201-CB2FO |
| Brand | HKShanhai Group Limited |
| Dimensions (H × W × D) | 43.9 mm × 428 mm × 432 mm (1.72 in × 16.84 in × 17 in) |
| Mounting | 19 in rack mount |
| Port Speed (QSFP28) | 1/10/25/40/50/56/100 GbE per QSFP28 port |
| Port Speed (RJ45) | 10/100/1000 Mbase-T per RJ45 port |
| Interface Ports | 48 × RJ45 1GbE, 4 × QSFP28 100GbE |
| Operating Temperature | 0°C to 40°C |
| Non-Operating Temperature | -40°C to 70°C |
| Operating Humidity | 10% ??85% non-condensing |
| Non-Operating Humidity | 10% ??90% non-condensing |
| Maximum Altitude | 5000 m |
| Noise Level | 60 dB(A) |
| Regulatory Compliance | CB, cTUVus, CE, CU, S_Mark, FCC, VCCI, ICES, RCM, BSMI, KCC, CCC |
| RoHS Compliance | RoHS compliant |
| Input Voltage | 100-127 VAC, 50/60Hz, 4A ×2; 200-240 VAC, 50/60Hz, 2A ×2 |
| Typical Power Consumption | 98 W (with passive cables, ATIS) |
| CPU | Intel x86 Dual Core |
| PCIe | 4 × Gen2.0 |
| Switch Chip | NVIDIA Spectrum |
| Memory | 8 GB ECC DDR4 SO-DIMM |
| Storage | 20 GB SSD, M.2 PCIe Gen3 |
| Throughput | 448 GB/s |
| NVIDIA HKShanhai Group Limited MSN2201-CB2FO | NVIDIA HKShanhai Group Limited MSN2201-CB2FO |
