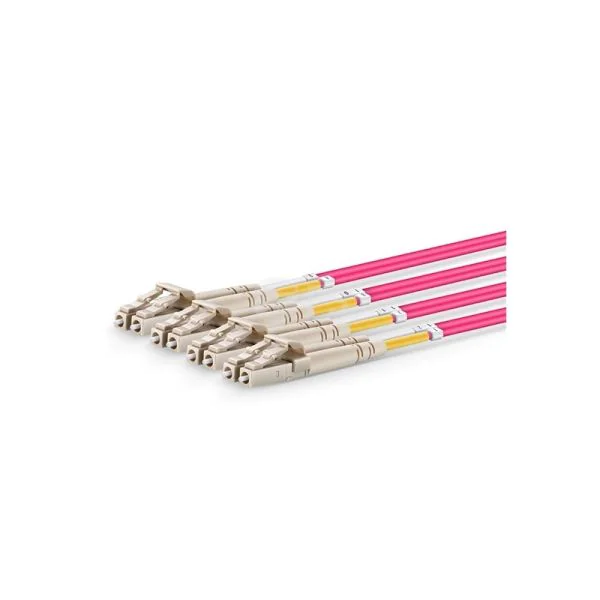

The Default Neutral-MPOF-1M-4LC(D)-OM4-8C-3R/2R-B-FO0.6-L is a high-performance fiber optic cable designed for seamless and reliable connectivity. This cable features MPO/UPC female-4*LC/UPC duplex connectors, supports Type B polarization, and comes with both 3.0mm round and 2.0mm fanout round cables. Engineered with OM4 8-core technology, this cable ensures superior performance and longevity, ideal for diverse networking applications. The LSZH sheath ensures safety and minimal fire hazards.
Quick Spec
| Connector Type | MPO/UPC female-4*LC/UPC duplex |
| Cable Length | 1 Meter |
| Fiber Type | OM4 |
| Core Count | 8 Cores |
| Sheath Material | LSZH |
Product Features

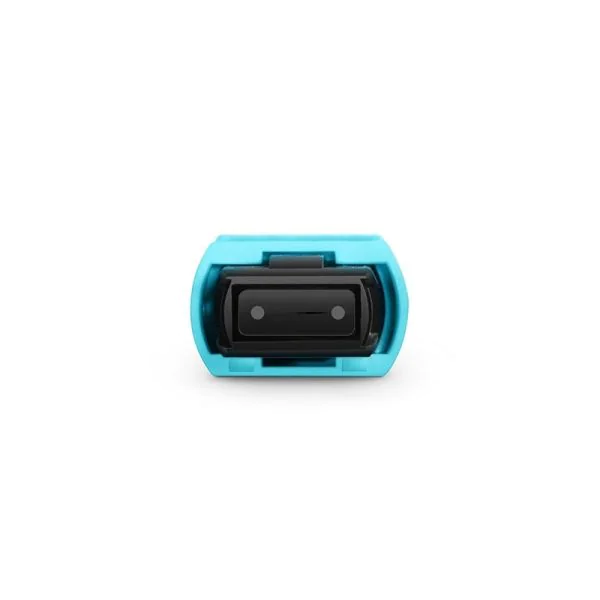

- MPO/UPC female-4*LC/UPC duplex connectors
- OM4 fiber for enhanced performance
- 8-core structure for high-capacity connectivity
- LSZH sheath for safety and environmental protection

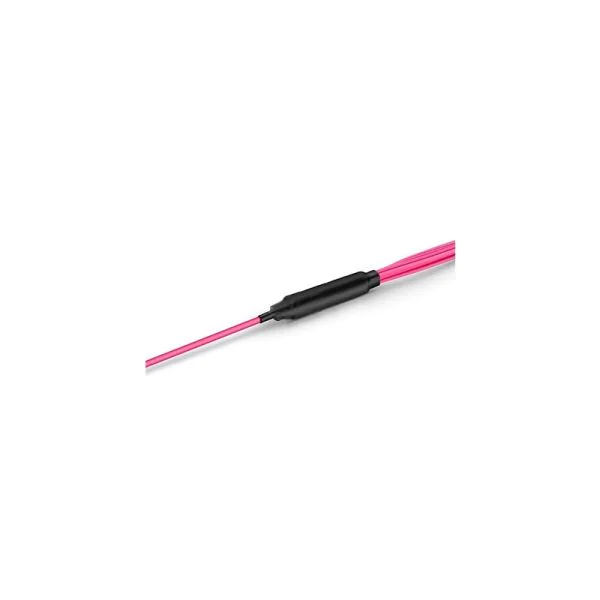

- 3.0mm round cable and 2.0mm fanout round cable options
Product Applications
- High-speed data center applications
- Telecommunication networks requiring efficient fiber management
- Fiber-to-the-home (FTTH) installations
Supported Options
| Accessory | Model |
| Adapter Panel | AP-4LC |
| Fiber Cleaning Kit | FCK-100 |
| Patch Panel | PP-24LC |
Compare to Similar Items
| Model | Difference |
| Default Neutral-MPOF-2M-4LC(D)-OM4-8C-3R/2R-B-FO1.0-L | 2 Meter Length, 1.0m Fanout |
| Default Neutral-MPOF-1M-4LC(D)-OM3-8C-3R/2R-B-FO0.6-L | OM3 Fiber Type |
| Default Neutral-MPOF-1M-8LC(D)-OM4-8C-3R/2R-B-FO0.6-L | 8*LC Connectors |
Get more information
Check “Default Neutral-MPOF-1M-4LC(D)-OM4-8C-3R/2R-B-FO0.6-L” price and “Neutral-MPOF-1M-4LC(D)-OM4-8C-3R/2R-B-FO0.6-L” datasheet, buy “Default Neutral-MPOF-1M-4LC(D)-OM4” with the best price and fast shipping. Free Live Chat is supported. For further information about the product and its price, contact us through Live Chat or email us at sales@router-switch.com.
Other MPOF-1M-4LC(D)-OM4-8C-3R/2R-B-FO0.6-L Specification
Specifications of MPO/MTP fiber patch cords |
|||
|
Item |
Parameter |
||
|
Applicable connector type |
MPO end: MPO or MTP; branch end connector: FC, LC, SC, ST (customer’s choice) |
||
|
Fiber type |
Single-mode (G.652D;G.657A) |
Multi-mode (OM1,OM2,OM3,OM4) |
|
|
Working wavelength range |
1250~1650nm |
850nm, 1300nm |
|
|
Test wavelength |
1310nm, 1550nm |
850nm, 1300nm |
|
|
End face grinding type |
MPO end: APC; |
MPO end: UPC; |
|
|
Branch end connector: UPC or APC |
Branch end connector: UPC or APC |
||
|
Insertion loss (IL) |
MPO end: typical value??.50dB, maximum value??.70dB, low value(optional)??.35dB |
||
|
Branch-end connector: typical value??.20dB,maximum value??.30dB |
|||
|
Return loss (RL) |
MPO end:APC??0dB |
MPO end:??0dB |
|
|
Branch-end connector：UPC??0dB,APC??0dB |
Branch-end connector：≥35dB |
||
|
Optical cable type |
MPO end: ribbon optical cable, bundle optical cable; |
||
|
Branch end connector: 2.0 or 0.9mm loose tube fan-out |
|||
|
Repeatability |
??.10dB |
||
|
Interchangeability |
??.20dB |
||
|
Durability |
MPO: plug and unplug 500 times, typical change value ??.20dB |
||
|
Branch-end connector: plugged and unplugged 1000 times, typical change value ??.20dB |
|||
|
Vertical tension |
??20N (except 0.9mm optical cable) or customer requirements |
||
|
Working temperature |
-10℃ to +70??/p> |
||
|
Storage temperature |
-40℃ to +85??/p> |
||
|
Cable Jackets Color Codes |
SM: Yellow; OM4: Magenta; OM3: Aqua |
||
|
Connectors Color Codes |
SM: OS2: Green; OM4/OM3: Aqua |
||
|
Boots Color Codes |
8 Fibers: Grey; 12 Fibers: Black; 24 Fibers: Red |
||
Specifications of MPO/MTP Cassette（include adapter and harness cable) |
|||
|
Item |
Parameter |
||
|
Model |
RS-MPO-12C-TC-OM3 |
RS-MPO-24C-TC-OM3(or G.652D, OM4) |
|
|
Max. No. of Cores |
12 |
24 |
|
|
Material |
Typical: ABS+PC; Optional: Cold rolled steel |
||
|
Dimensions (mm) |
123 (L) x 97 (W) x 32 (H) (1.2mm thickness) |
||
|
Weight (kg) |
0.6kg |
||
|
Other |
Pls. choose MPO/MTP-LC cable model |
||
Specifications of MPO/MTP Management Rack |
|||
|
Item |
Parameter |
||
|
Model |
RS-MPO-IRA-4C-1U |
RS-MPO-DRA-4C-3U |
RS-MPO-IRA-12C-3U |
|
Max. No. of Modules |
4 |
4 |
12 |
|
Max. No. of Cores |
96 |
96 |
288 |
|
Material |
Cold rolled steel |
||
|
Approx Dimensions (mm) |
425 (L) x 350 (W) x 45 (H) (1.2mm thickness) |
425 (L) x 365 (W) x 45 (H) (1.2mm thickness) |
425 (L) x 345 (W) x 130 (H) (1.2mm thickness) |
|
Weight (kg) |
3 |
3 |
5 |
|
Other |
Pls. choose MPO/MTP Cassette model |
