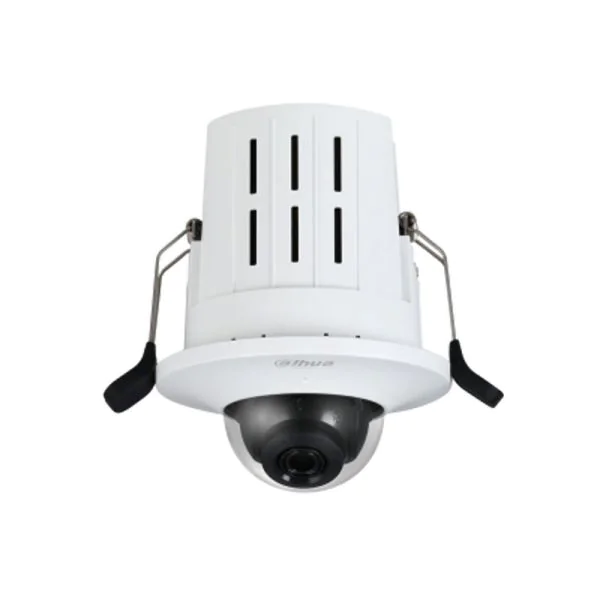

The Dahua IPC-HDB4231G-AS is a high-definition 2MP recessed mount dome network camera perfect for various surveillance needs. Offering excellent image quality, advanced features, and superior performance, this product by Dahua is ideal for those seeking a reliable and robust security solution. Easy to install and designed for discreet monitoring, the IPC-HDB4231G-AS is a standout in Dahua’s impressive product lineup.
Quick Spec
| Resolution | 2MP (1920×1080) |
| Lens | 2.8mm/3.6mm/6mm options |
| IR Distance | Up to 20m |
| Power Supply | 12V DC/PoE |
| Weather Resistance | IP67 |
Product Features
- 2MP Full HD video capture with up to 30fps
- H.265/H.264 dual codec for efficient compression
- Smart detection features including tripwire and intrusion
- Built-in Microphone for audio capture
- On-board storage with microSD card slot up to 128GB
Product Applications
- Retail Stores: Monitor customer activities and prevent shoplifting with high-definition video.
- Office Buildings: Enhance security by monitoring entrances, exits, and common areas.
- Residential Complexes: Ensure resident safety with high-quality, discrete camera placement.
Supported Options
| Mount Junction Box | PFA137 |
| Wall Mount | PFB203W |
| Ceiling Mount | PFB204W |
Compare to Similar Items
| Model | Key Differences |
| Dahua IPC-HDBW2231R-ZAS | Motorized lens, higher IR distance (30m) |
| Dahua IPC-HDBW4431F-AS | 4MP resolution, larger form factor |
| Dahua IPC-HDBW5231R-ZE | More advanced analytics, 2MP Starlight technology |
Get more information
For more details about the Dahua IPC-HDB4231G-AS, including pricing and comprehensive datasheet, you can reach us through Live Chat or email us at sales@router-switch.com. Check Dahua IPC-HDB4231G-AS price and IPC-HDB4231G-AS datasheet, buy Dahua IPC-HDB4231G-AS with the best price and fast shipping. Free Live Chat are supported.
Dahua HDB4231G-AS Specification
| Model | IPC-HFW5241E-Z12E |
| Brand | Dahua |
| Camera Type | IP Camera |
| Max Resolution | 2 MP (1920 x 1080) |
| Lens Type | Motorized Varifocal Lens |
| Lens Focal Length | 5.3 mm to 64 mm |
| Night Vision | Up to 200m (656ft) |
| Day/Night | Auto (ICR) / Color / B/W |
| Protection Level | IP67 |
| Video Compression | H.265, H.264, MJPEG |
| Frame Rate | 30 fps @ 1080P |
| Operating Conditions | -40°C to +60°C (-40°F to +140°F) |
| IPC-HFW5241E-Z12E | IPC-HFW5241E-Z12E |
|
White Balance |
Auto/Natural/Street Lamp/Outdoor/Manual |
|
Gain Control |
Auto/Manual |
|
Noise Reduction |
3D DNR |
|
Motion Detetion |
Off / On (4 Zone, Rectangle) |
|
Region of Interest |
Off / On (4 Zone) |
|
Electronic Image Stabilization (EIS) |
N/A |
|
Smart IR |
N/A |
|
Defog |
N/A |
|
Digital Zoom |
16x |
|
Flip |
0°/90°/180°/270° |
|
Mirror |
Off / On |
|
Privacy Masking |
Off / On (4 Area, Rectangle) |
|
Audio |
|
|
Compression |
G.711a/ G.711Mu/ AAC/ G.726 |
|
Network |
|
|
Ethernet |
RJ-45 (10/100Base-T) |
|
Protocol |
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP |
|
Interoperability |
ONVIF, PSIA, CGI |
|
Streaming Method |
Unicast / Multicast |
|
Max. User Access |
20 Users |
|
Edge Storage |
NAS Local PC for instant recording Mirco SD card 128GB |
|
Web Viewer |
IE, Chrome, Firefox, Safari |
|
Management Software |
Smart PSS, DSS, Easy4ip |
|
Smart Phone |
IOS, Android |
|
Certifications |
|
|
Certifications |
CE (EN 60950:2000) FCC: FCC Part 15 Subpart B |
|
Interface |
|
|
Video Interface |
N/A |
|
Audio Interface |
Built-in Mic |
|
RS485 |
N/A |
|
Alarm |
N/A |
|
Electrical |
|
|
Power Supply |
DC12V, PoE (802.3af)(Class 0) |
|
Power Consumption |
<3.5W |
|
Environmental |
|
|
Operating Conditions |
-10° C ~ +45° C (14° F ~ +113° F) / Less than 95% RH |
|
Strorage Conditions |
-10° C ~ +45° C (14° F ~ +113° F) / Less than 95% RH |
|
Ingress Protection |
N/A |
|
Vandal Resistance |
IK08 |
|
Construction |
|
|
Casing |
Plastic |
|
Dimensions |
Φ93mm×116.5mm (3.65??/span>×4.58??/span>) |
|
Net Weight |
0.225Kg (0.50lb) |
|
Gross Weight |
0.37Kg (0.82lb) |
