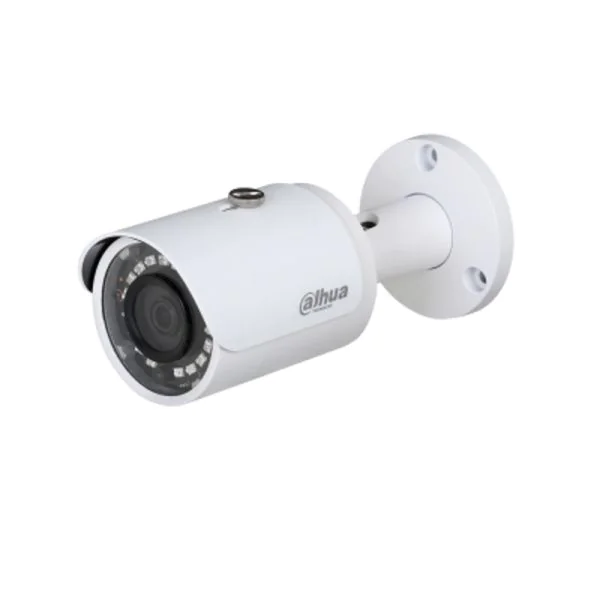

The Dahua IPC-HFW4231S is a high-performance 2MP WDR IR Mini Bullet Network Camera, designed to deliver superior image quality and reliability in a compact form factor. This robust camera offers advanced features such as wide dynamic range (WDR) and infrared (IR) capabilities, making it an ideal choice for various security applications.
Quick Spec
| Resolution | 2MP |
| Lens Type | Fixed |
| WDR | 120dB |
| IR Distance | Up to 50m |
| Ingress Protection | IP67 |
Product Features
- 2 Megapixel CMOS Sensor
- 120dB Wide Dynamic Range (WDR)
- Smart IR with Infrared Distance up to 50m
- IP67 Ingress Protection Rating
- Compact Mini Bullet Design
Product Applications
- Indoor and outdoor security surveillance for small to medium-sized businesses.
- Residential property monitoring to ensure safety and security.
- Public space observation such as parks and community centers.
Supported Options
| Wall Mount | PFB203W |
| Junction Box | PFA152-E |
| Power Adapter | PFM320D-EN |
Compare to Similar Items
| Model | Differences |
| IPC-HFW1230S | 1MP resolution, no WDR |
| IPC-HFW2231S | 2MP, IR Distance up to 30m, basic WDR |
| IPC-HFW4431S | 4MP resolution, enhanced WDR, longer IR distance |
Get more information
For further details about the Dahua IPC-HFW4231S and its pricing, please contact us through Live Chat or via email at sales@router-switch.com. Check “Dahua IPC-HFW4231S” price and “IPC-HFW4231S datasheet”, buy “Dahua IPC-HFW4231S Camera” with best price and fast shipping. Free Live Chat are supported.
Dahua HFW4231S Specification
| Model | IPC-HFW5241E-Z12E |
| Brand | Dahua |
| Camera Type | IP Camera |
| Max Resolution | 2 MP (1920 x 1080) |
| Lens Type | Motorized Varifocal Lens |
| Lens Focal Length | 5.3 mm to 64 mm |
| Night Vision | Up to 200m (656ft) |
| Day/Night | Auto (ICR) / Color / B/W |
| Protection Level | IP67 |
| Video Compression | H.265, H.264, MJPEG |
| Frame Rate | 30 fps @ 1080P |
| Operating Conditions | -40°C to +60°C (-40°F to +140°F) |
| IPC-HFW5241E-Z12E | IPC-HFW5241E-Z12E |
|
White Balance |
Auto/Natural/Street Lamp/Outdoor/Manual |
|
Gain Control |
Auto/Manual |
|
Noise Reduction |
3D DNR |
|
Motion Detetion |
Off / On (4 Zone, Rectangle) |
|
Region of Interest |
Off / On (4 Zone) |
|
Electronic Image Stabilization (EIS) |
N/A |
|
Smart IR |
Support |
|
Defog |
N/A |
|
Digital Zoom |
16x |
|
Flip |
0°/90°/180°/270° |
|
Mirror |
Off / On |
|
Privacy Masking |
Off / On (4 Area, Rectangle) |
|
Audio |
|
|
Compression |
N/A |
|
Network |
|
|
Ethernet |
RJ-45 (10/100Base-T) |
|
Protocol |
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP |
|
Interoperability |
ONVIF, PSIA, CGI |
|
Streaming Method |
Unicast / Multicast |
|
Max. User Access |
10 Users /20 Users |
|
Edge Storage |
NAS Local PC for instant recording |
|
Web Viewer |
IE, Chrome, Firefox, Safari |
|
Management Software |
Smart PSS, DSS, Easy4ip |
|
Smart Phone |
IOS, Android |
|
Certifications |
|
|
Certifications |
CE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B |
|
Interface |
|
|
Video Interface |
N/A |
|
Audio Interface |
N/A |
|
RS485 |
N/A |
|
Alarm |
N/A |
|
Electrical |
|
|
Power Supply |
DC12V, PoE (802.3af)(Class 0) |
|
Power Consumption |
<6W |
|
Environmental |
|
|
Operating Conditions |
-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
|
Strorage Conditions |
-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
|
Ingress Protection |
IP67 |
|
Vandal Resistance |
N/A |
|
Construction |
|
|
Casing |
Metal |
|
Dimensions |
161.9mm×69.8mm×69.8mm (6.37??/span>×2.75??/span>×2.75??/span>) |
|
Net Weight |
0.38Kg (0.84lb) |
|
Gross Weight |
0.44Kg (0.97lb) |
